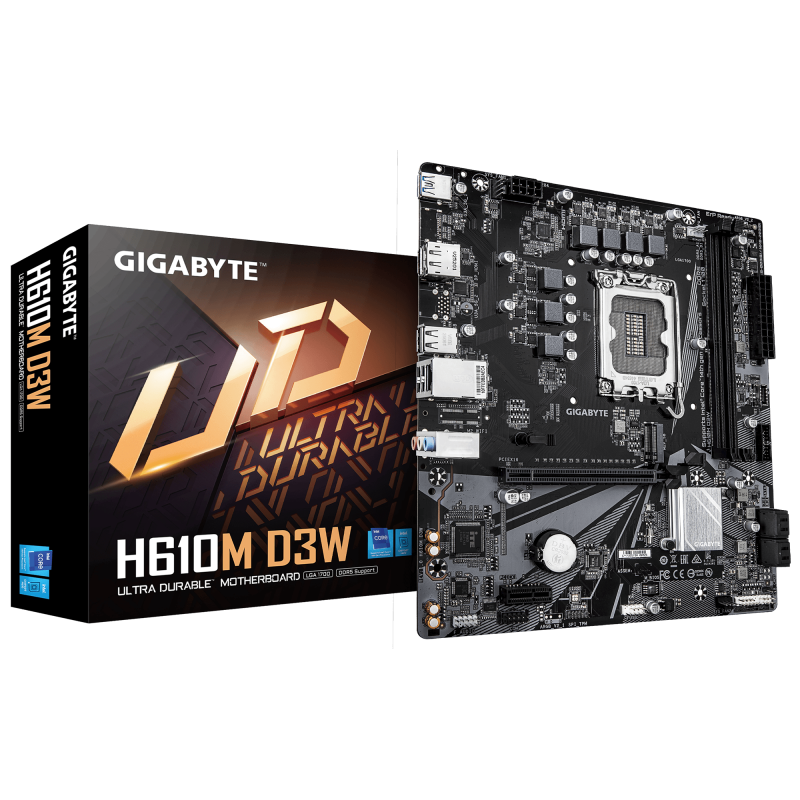

Placa de Baza GIGABYTE H610M D3W

0

Prețul inițial a fost: 537,65 lei.Prețul curent este: 446,55 lei.

10 în stoc

SKU: H610M D3W Categorie

PLaca de baza GIGABYTE H610M D3W

Specificație: Placa de Baza GIGABYTE H610M D3W

PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI

Wi-FI

No

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

Component for

PC

Ethernet interface type

Gigabit Ethernet

Memory channels

Dual-channel

Processor manufacturer

Intel

Ethernet LAN

Yes

HDMI ports quantity

1

HDMI version

2.1

Maximum internal memory

128 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

1

Line-in

Yes

Audio Chip

Realtek ALC897

PCI Express x16 (Gen 4.x) slots

1

Number of memory slots

2

Supported storage drive types

HDD & SSD

LAN controller

Realtek RTL8111H

Cooling type

Passive

Number of M.2 (M) slots

1

HDCP

Yes

Screws included

Yes

DisplayPort version

1.2

HDCP version

2.3

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Model Chipset

H610

Gaming

Nu

Format:

Micro-ATX (mATX)

Soclu Procesor

Socket 1700

Tip Memorie

DDR5

Numar sloturi memorie

2

Memorie maxima

128 GB

Tip slot interfata grafica

PCIe 4.0 x16

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Nu

Bluetooth

Nu

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

1

RJ-45 LAN

1

Memory slots type

DIMM

Unbuffered memory

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Motherboard form factor

micro ATX

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Front panel connector

Yes

TPM connector

Yes

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

BIOS memory size

128 Mbit

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

1st M.2 largest key size

2280

USB 2.0 connectors

1

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Number of storage drives supported

5

Number of EPS power connectors (8-pin)

1

Motherboard chipset

Intel H610

Number of CPU fan connectors

1

1st M.2 highest PCI Express generation

3.0

Supported memory clock speeds

4400,4800,5200,5600 MHz

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB Type-C

N/A

Battery capacity

200 mAh

Bundled software

Norton® Internet Security (OEM version)

Microphone in

Yes

Headphone outputs

1

Batteries included

Yes

Ethernet LAN (RJ-45) ports

1

Width

244 mm

Height

3.5 mm

Country of origin

China

Package height

54 mm

Depth

220 mm

Power source type

ATX

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Product colour

Dark brown

Products per shipping (inner) case

1 pc(s)

Package width

265 mm

Package depth

265 mm

Package weight

821 g

Weight

742 g

Producator

GIGABYTE

Garantie

36
