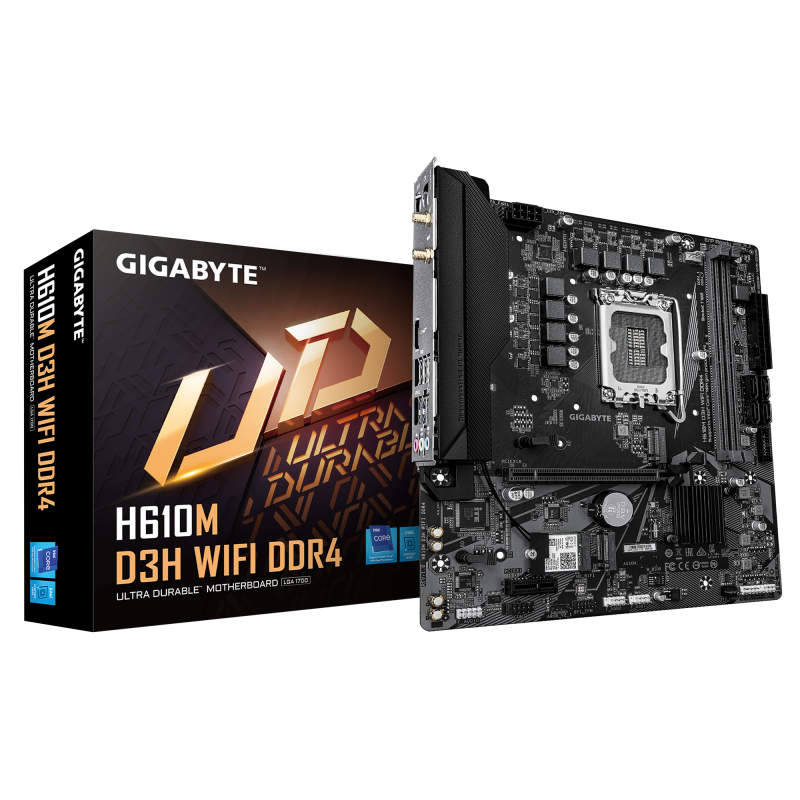

Placa de bază Gigabyte H610M D3H DDR4 LGA1700

Name: Placa de bază Gigabyte H610M D3H DDR4 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: H610M D3H WIFI DDR4
Price: 496.60 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

496.60 lei

Stoc epuizat

SKU: H610M D3H WIFI DDR4 Categorie Placi de baza

Placa de Baza GIGABYTE H610M D3H DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte H610M D3H DDR4 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
Component for	PC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Number of storage drives supported	6
BIOS memory size	128 Mbit
Serial port headers	1
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Supported memory clock speeds	3200 MHz
PS/2 ports quantity	2
Motherboard chipset	Intel H610
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	3.0
Maximum internal memory per slot	32 GB
Number of RGB LED pin headers	2
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
2nd M.2 highest PCI Express generation	3.0
USB Type-C	N/A
Microphone in	Yes
Headphone outputs	1
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Batteries included	Yes
Bluetooth version	5.1
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	244 mm
Package height	68 mm
Depth	220 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	270 mm
Package depth	268 mm
WLAN controller model	Intel Dual Band Wireless-AC 9560
Weight	930 g
Package weight	106 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
