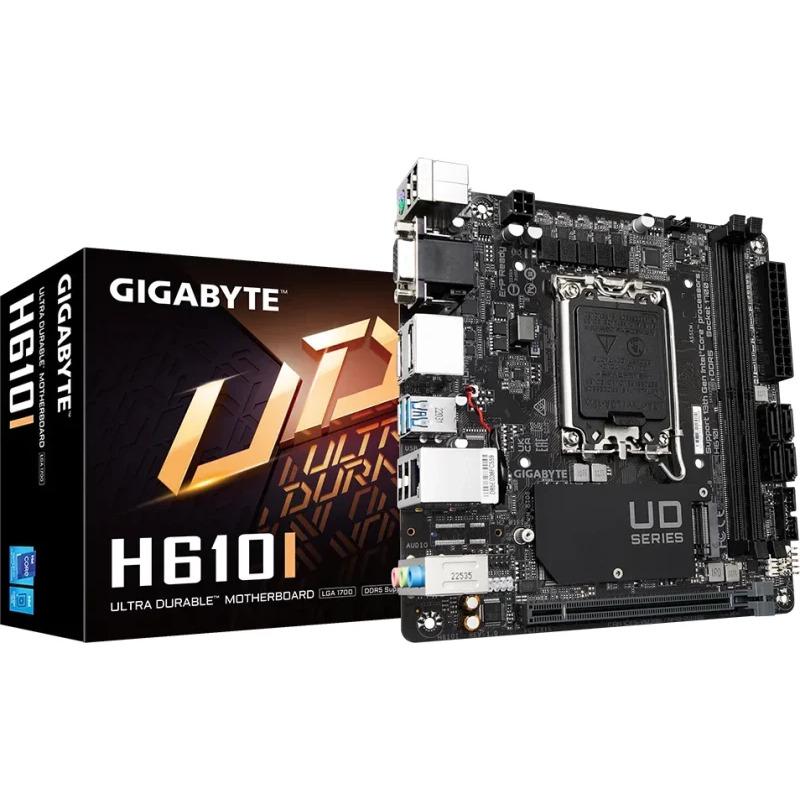

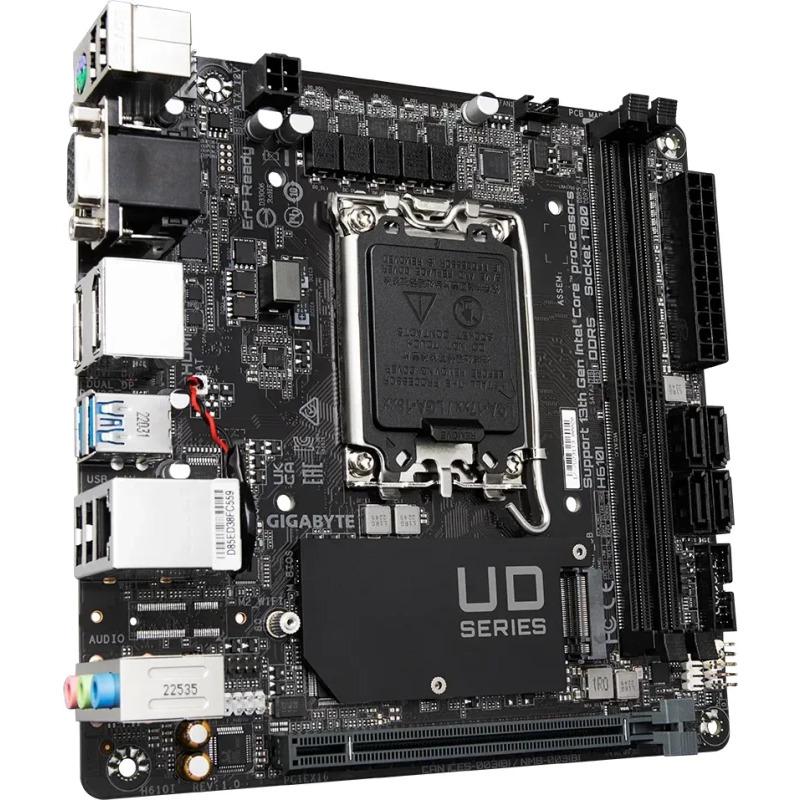

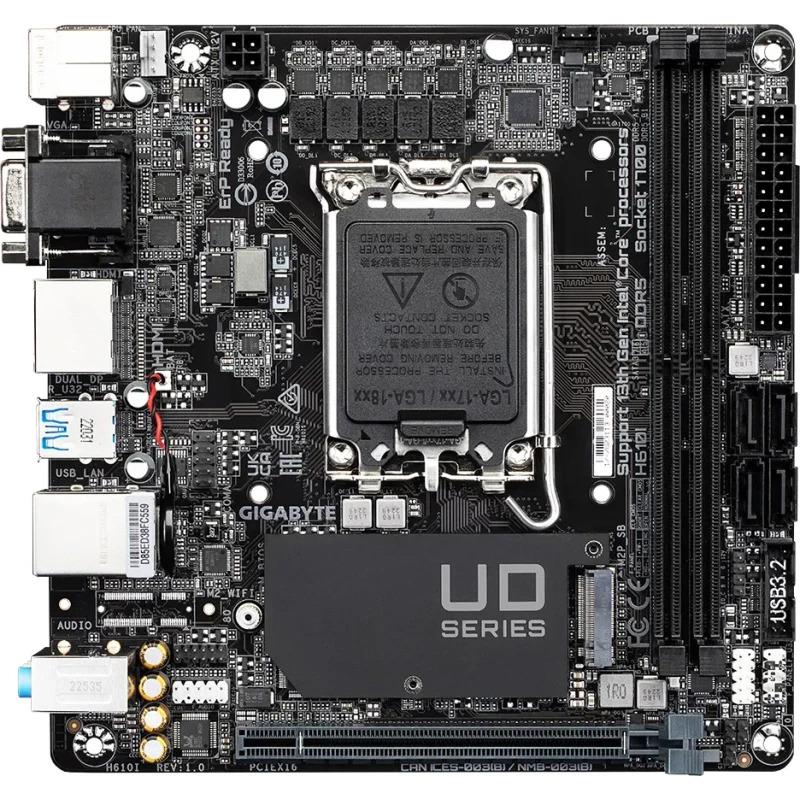

Name: Placa de Bază GIGABYTE H610I LGA1700
Brand: GIGABYTE
SKU: H610I
Price: 664.95 RON
Availability: InStock

Placa de Bază GIGABYTE H610I LGA1700

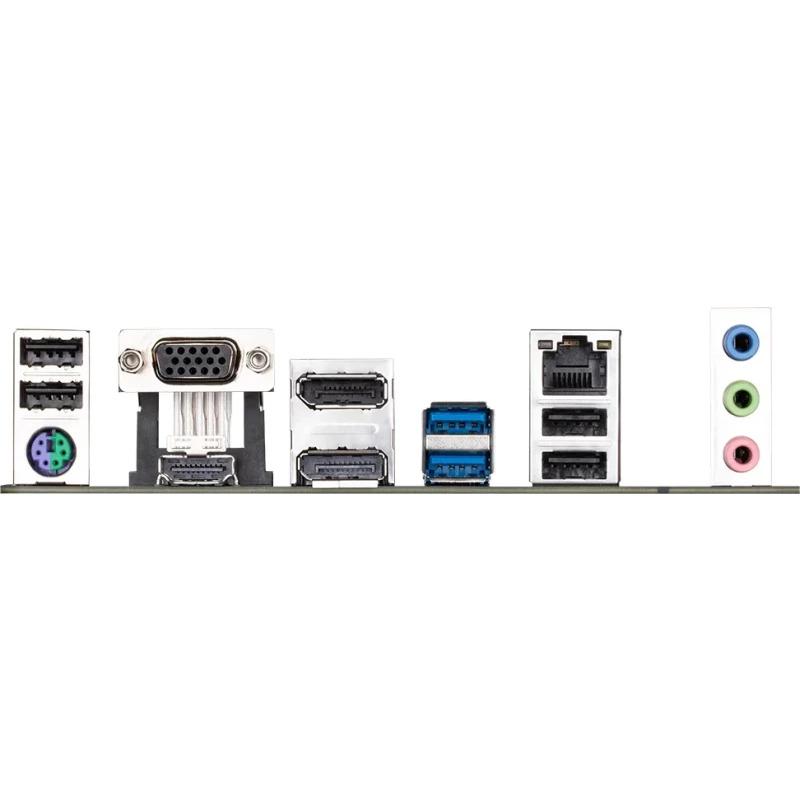

Placa de Baza GIGABYTE H610I LGA1700, 2x DDR5, 1x D-Sub 1x HDMI 2x DP, 1x PCIE X16, 1x M.2, 4x SATA 6GB/s, Mini-ITX

Specificație: Placa de Bază GIGABYTE H610I LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
Component for	PC
Cooling type	Active
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
Graphics card family	Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 slots	1
Audio Chip	Realtek ALC897
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
HDCP	Yes
DisplayPort version	1.2
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format:	Mini-ITX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
PS/2 ports quantity	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
Clear CMOS button	Yes
Serial port headers	1
Chassis intrusion connector	Yes
USB 2.0 connectors	1
Number of storage drives supported	5
PC health monitoring	Fan, Temperature, Voltage
Maximum internal memory supported by processor	64 GB
Supported memory clock speeds	5600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of HDDs supported	1
Graphics card	HD Graphics
Motherboard form factor	mini ITX
Motherboard chipset	Intel H610 Express
Microphone in	Yes
Height	35 mm
Cables included	SATA
Headphone outputs	3
Country of origin	China
Width	170 mm
Package depth	180 mm
Depth	170 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	222 mm
Package height	65 mm
Package weight	590 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
