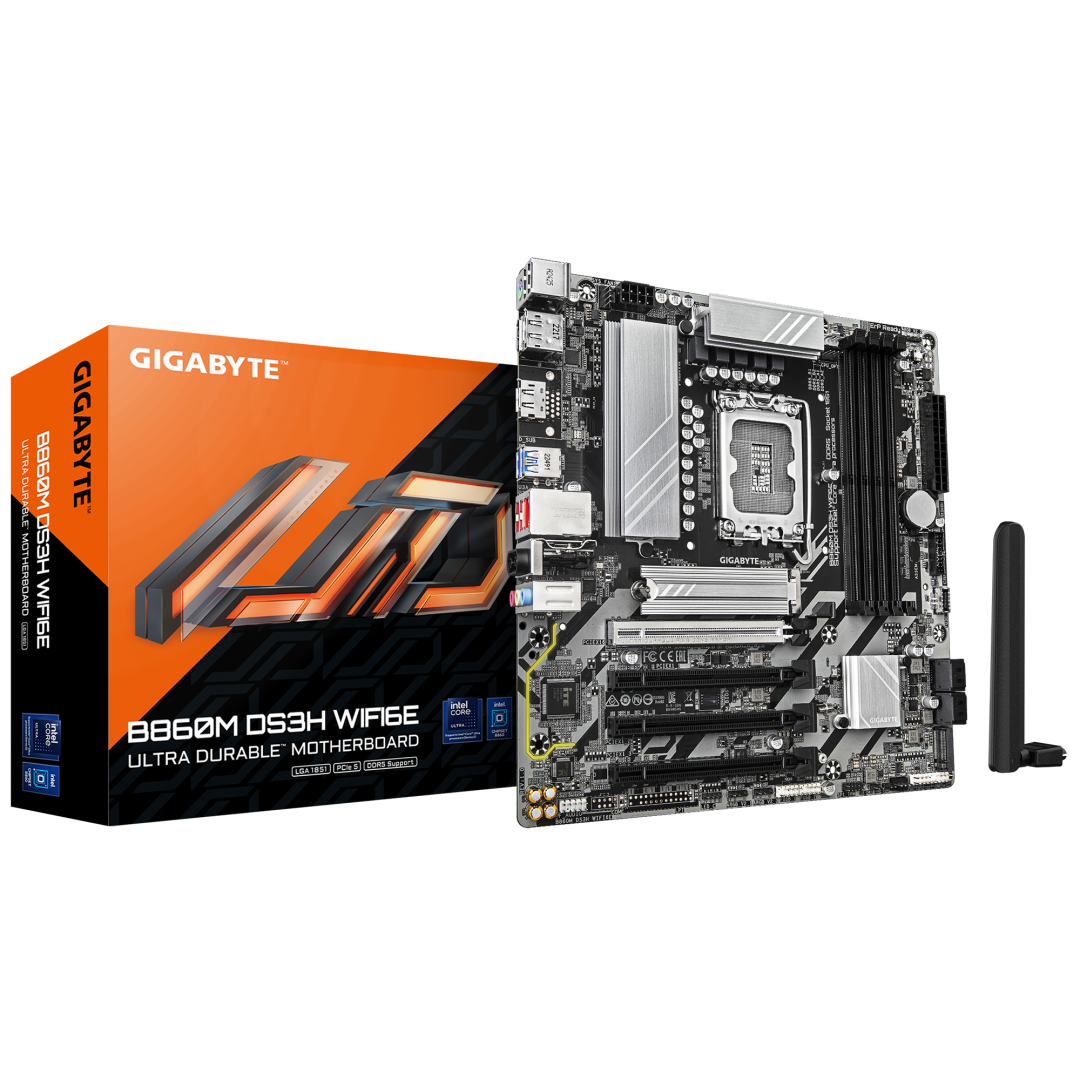

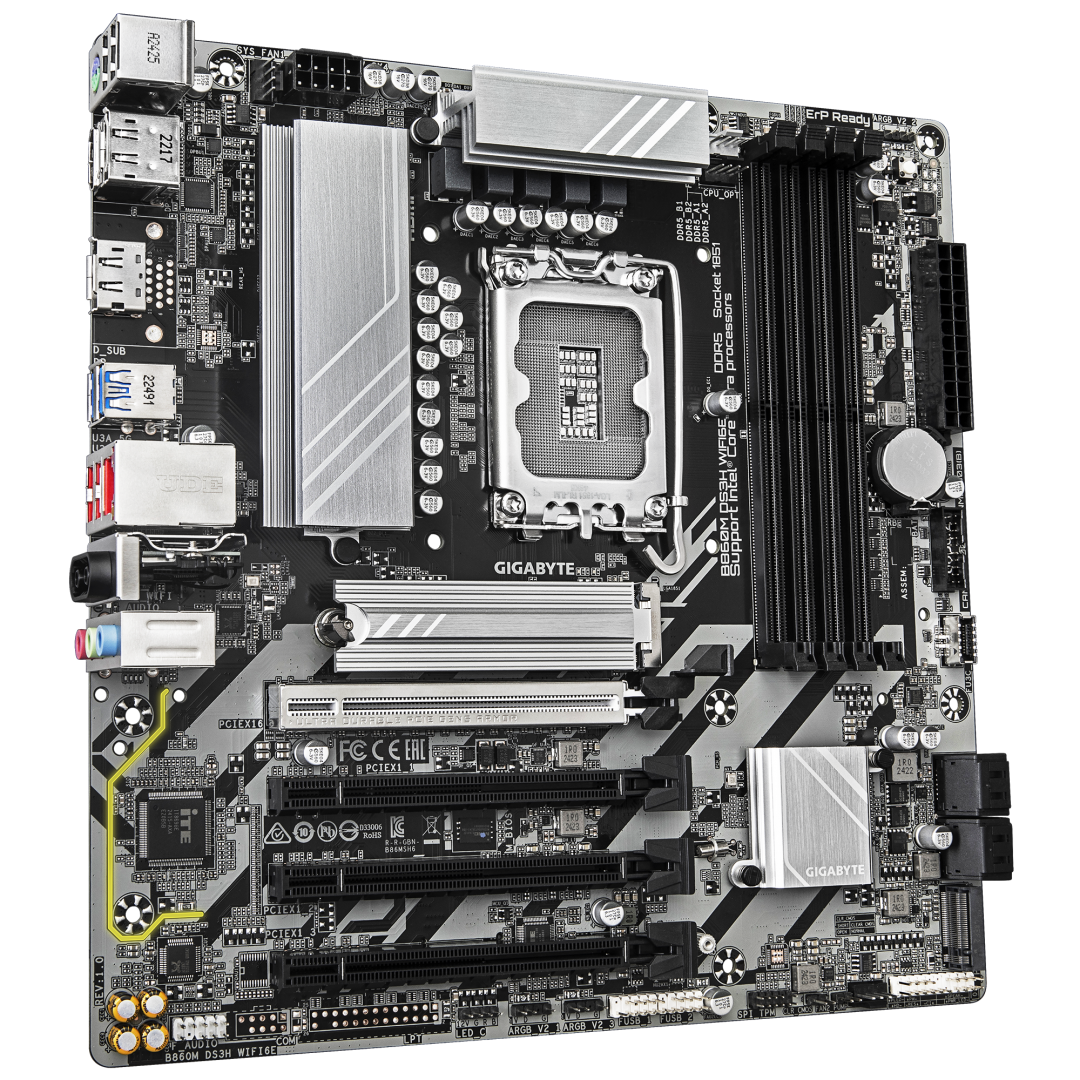

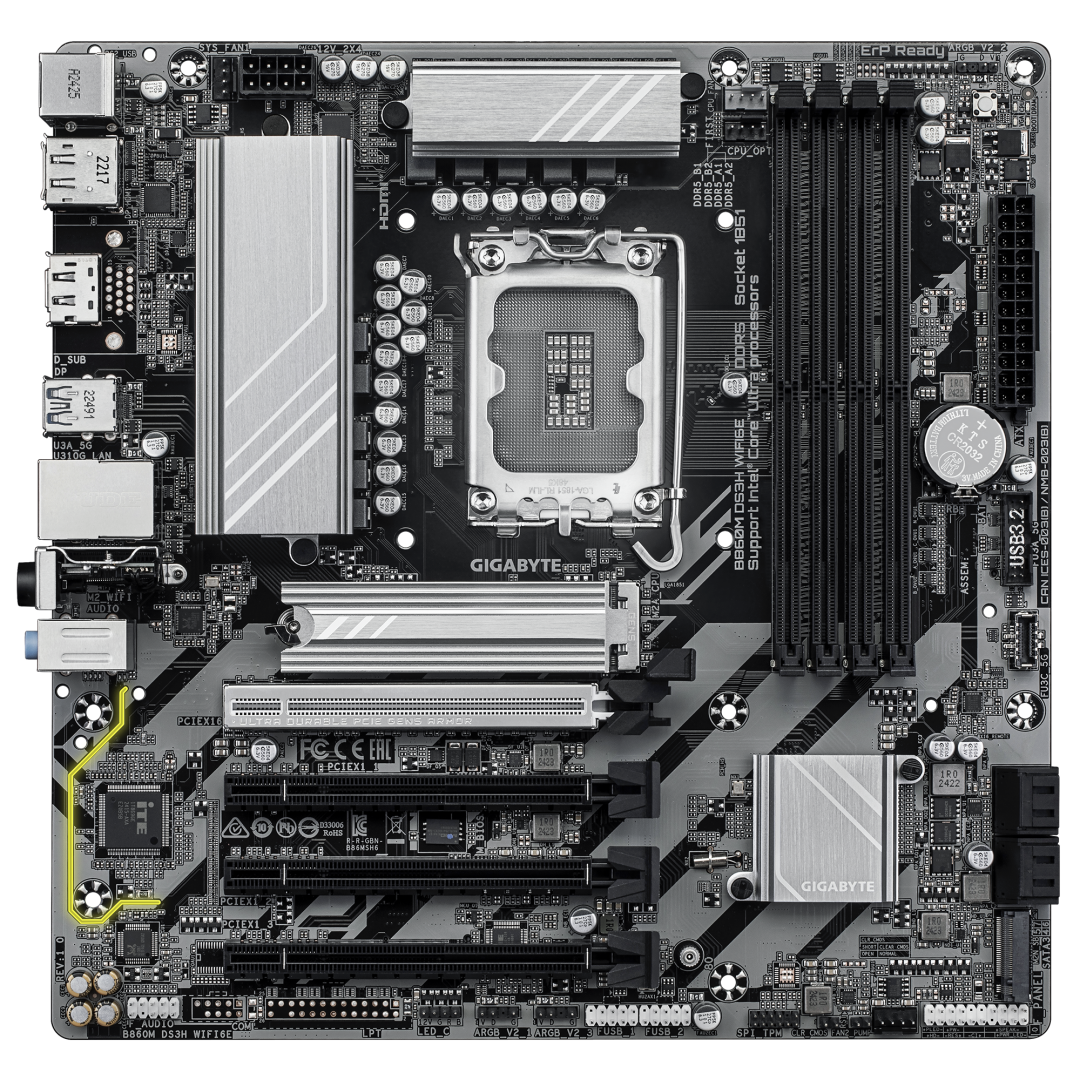

Name: Placa de Bază GIGABYTE B860M DS3H WIFI6E LGA1851
Brand: GIGABYTE
SKU: B860M DS3H WIFI6E
Price: 929.85 RON
Availability: InStock

Placa de Bază GIGABYTE B860M DS3H WIFI6E LGA1851

Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851, 4x DDR5, 1x HDMI 2x DP, 4x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de Bază GIGABYTE B860M DS3H WIFI6E LGA1851

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
USB 2.0 ports quantity	3
DisplayPorts quantity	2
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
DisplayPort version	2.1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B860
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
PC health monitoring	Fan, Temperature, Voltage, Water cooling
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Number of storage drives supported	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Supported memory clock speeds	5600,6400,9066 MHz
PCI Express x16 (Gen 4.x) slots	5
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	270 mm
Package depth	268 mm
Weight	1.1 kg
Package weight	1.25 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
