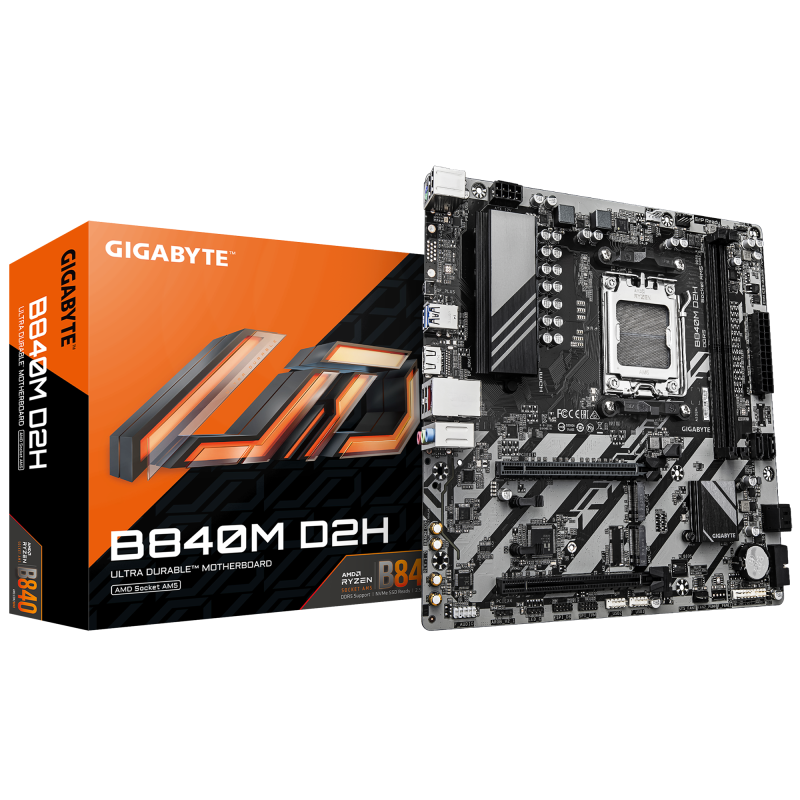

Name: Placa de Bază GIGABYTE B840M D2H AM5
Brand: GIGABYTE
SKU: B840M D2H
Price: 582.44 RON
Availability: InStock

Placa de Bază GIGABYTE B840M D2H AM5

Placa de Baza GIGABYTE B840M D2H AM5, 2x DDR5, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de Bază GIGABYTE B840M D2H AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B840
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
ECC сompatibility	Non-ECC
Number of storage drives supported	6
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
2nd M.2 largest key size	2280
Number of chassis fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
1st M.2 largest key size	2580
PCI-Ex1	0
MB-Format	micro-ATX
RAM-Slots	2
2nd M.2 highest PCI Express generation	3.0
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	2
Motherboard chipset	AMD B840
Supported memory clock speeds	7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Weight	940 g
Height	35 mm
Width	244 mm
Depth	244 mm
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	1.03 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
