Name: Placa de bază Gigabyte B760M H LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760M H DDR4
Price: 481.00 RON
Availability: InStock

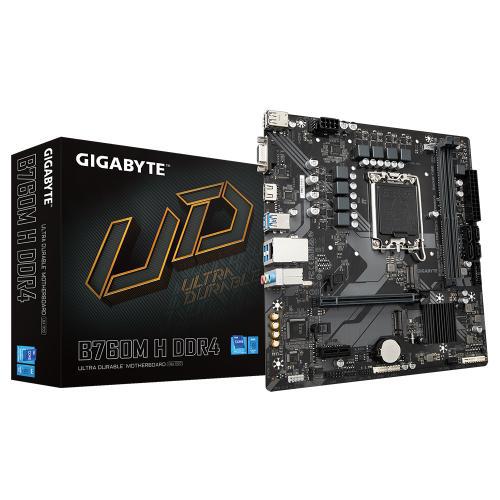

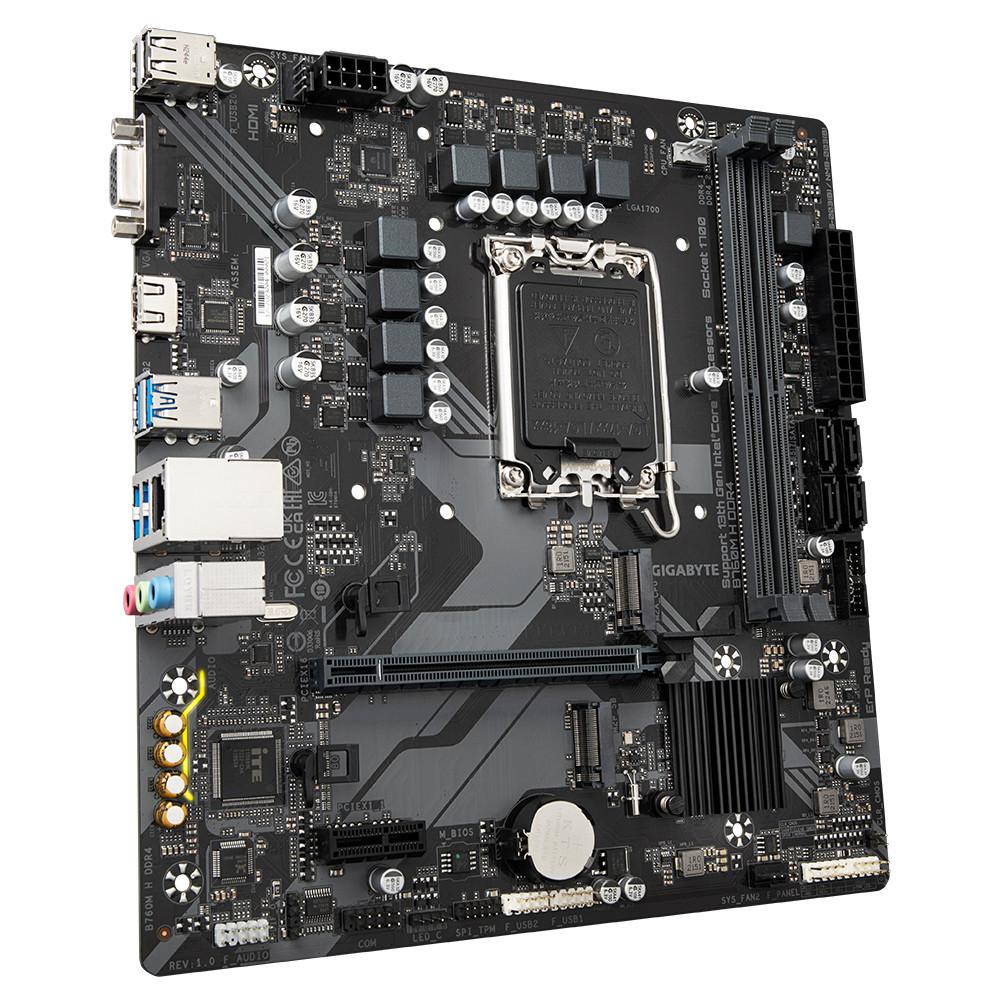

Placa de bază Gigabyte B760M H LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX

Specificație: Placa de bază Gigabyte B760M H LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	1.4
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Model Chipset	B760
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Total number of SATA connectors	4
ECC сompatibility	Non-ECC
Number of storage drives supported	6
BIOS memory size	128 Mbit
Serial port headers	1
Motherboard chipset	Intel B760 Express
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Supported memory clock speeds	3200 MHz
Maximum internal memory supported by processor	64 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
DirectX version	12.1
Depth	215 mm
Height	35 mm
Width	230 mm
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	265 mm
Package depth	265 mm
Package weight	825 g
Producator	GIGABYTE
Garantie	36
