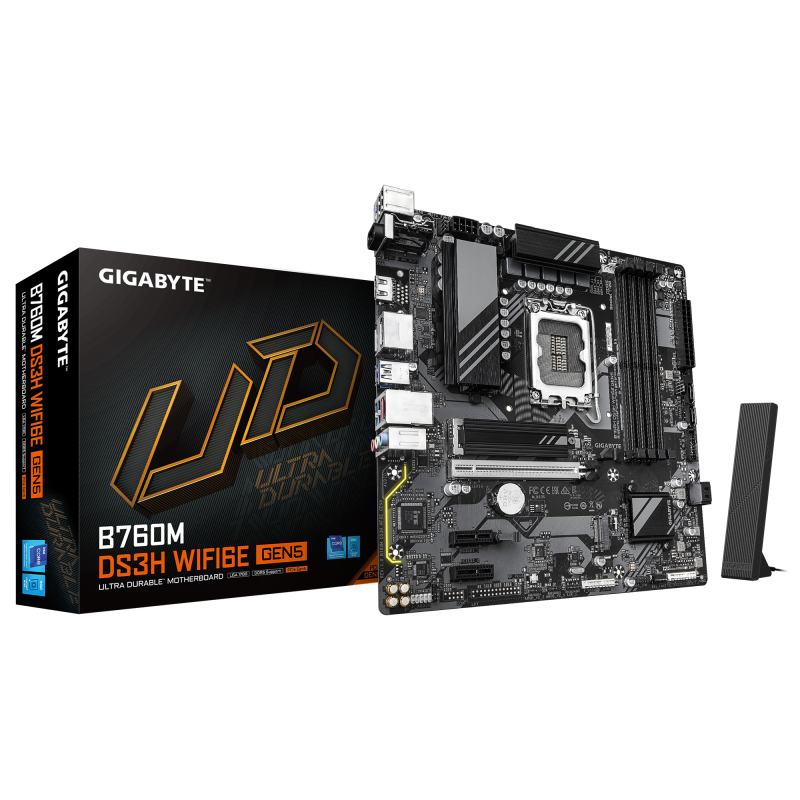

Name: Placa de Bază GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700
Brand: GIGABYTE
SKU: B760M DS3H WF6E GEN5
Price: 786.04 RON
Availability: InStock

Placa de Bază GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700

Placa de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de Bază GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
DisplayPorts quantity	2
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Cooling type	Passive
WLAN controller model	Intel Wi-Fi 6E AX210
HDCP	Yes
Screws included	Yes
DisplayPort version	1.2
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
Number of storage drives supported	6
S/PDIF out connector	Yes
BIOS memory size	128 Mbit
Motherboard chipset	Intel B760 Express
Number of chassis fan connectors	3
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
MB-Socket	1700
RAM-Slots	4
MB-Format	micro-ATX
PCI-Ex1	2
USB Type-C	N/A
Supported memory clock speeds	5600,5200,4800,4400 MHz
Bundled software	Norton® Internet Security (OEM version)
Microphone in	Yes
Headphone outputs	1
Bluetooth	Yes
Batteries included	Yes
Bluetooth version	5.3
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	68 mm
Package weight	1.2 kg
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	270 mm
Package depth	268 mm
Weight	1.1 kg
Producator	GIGABYTE
Garantie	36
