Name: Placa de bază Gigabyte B760 DS3H GEN5 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760 DS3H GEN5
Price: 634.49 RON
Availability: InStock

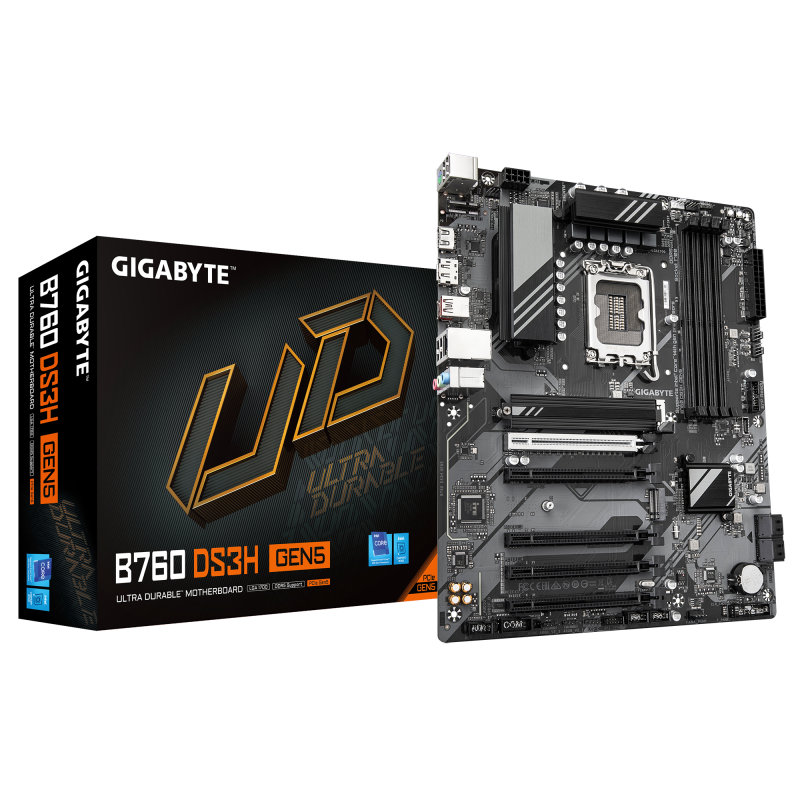

Placa de bază Gigabyte B760 DS3H GEN5 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placă de bază GIGABYTE B760 DS3H GEN5, ATX, socket LGA1700, chipset Intel B760, suport DDR5 192 GB, PCIe 5.0 x16, M.2 Gen4, LAN Gigabit.

Specificație: Placa de bază Gigabyte B760 DS3H GEN5 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
Number of storage drives supported	6
S/PDIF out connector	Yes
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Motherboard chipset	Intel B760 Express
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
1st M.2 highest PCI Express generation	4.0
PCI Express x16 (Gen 3.x) slots	4
MB-Socket	1700
RAM-Slots	4
MB-Format	micro-ATX
PCI-Ex1	2
USB Type-C	N/A
Supported memory clock speeds	5600,5200,4800,4400 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	305 mm
Depth	244 mm
Country of origin	China
Package weight	1.5 kg
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Weight	1.32 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
