Name: Placa de Bază GIGABYTE B760 DS3H DDR4 LGA1700
Brand: GIGABYTE
SKU: B760 DS3H DDR4
Price: 920.94 RON
Availability: OutOfStock

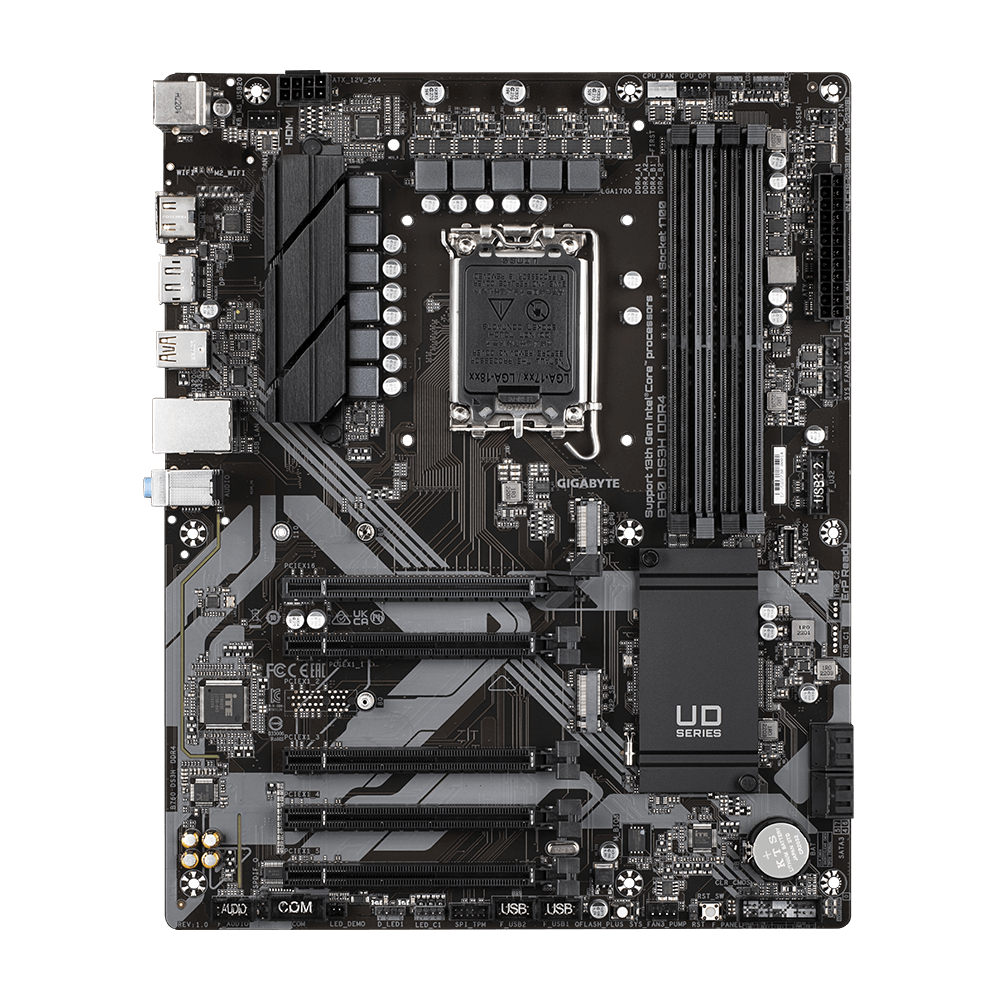

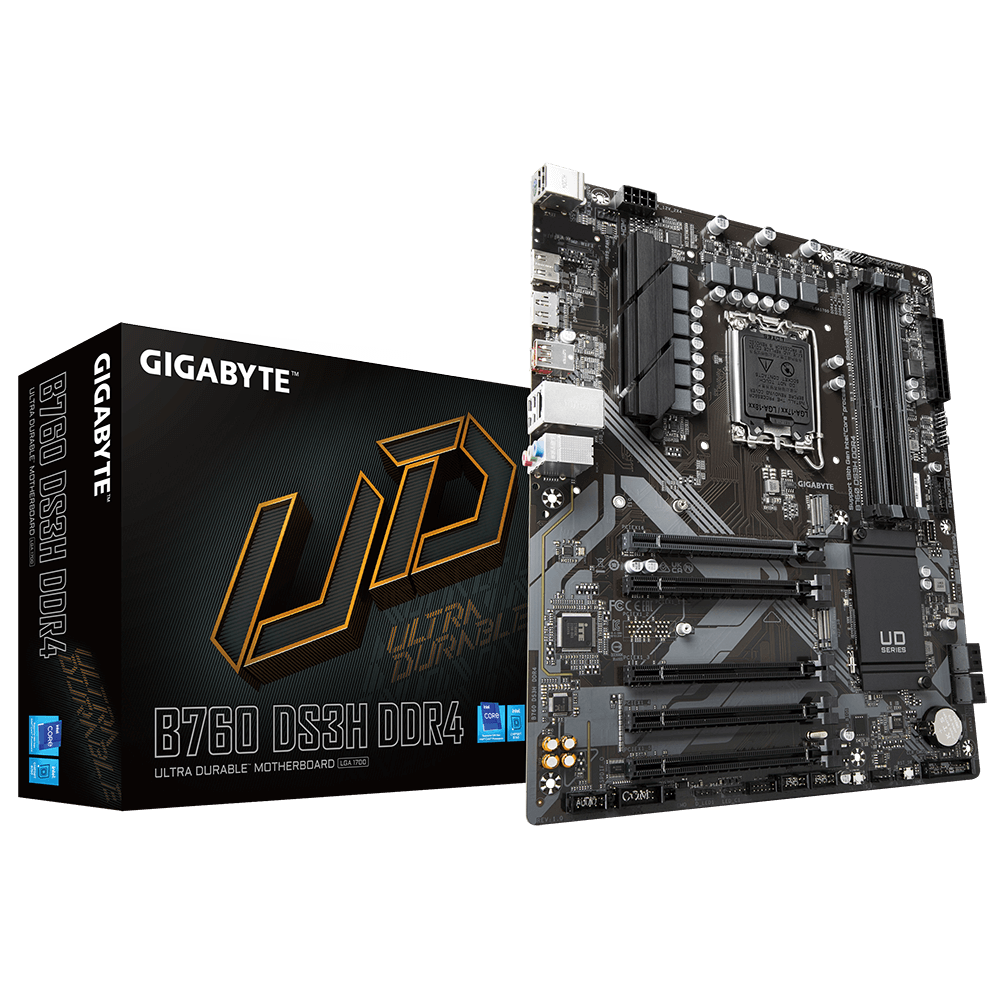

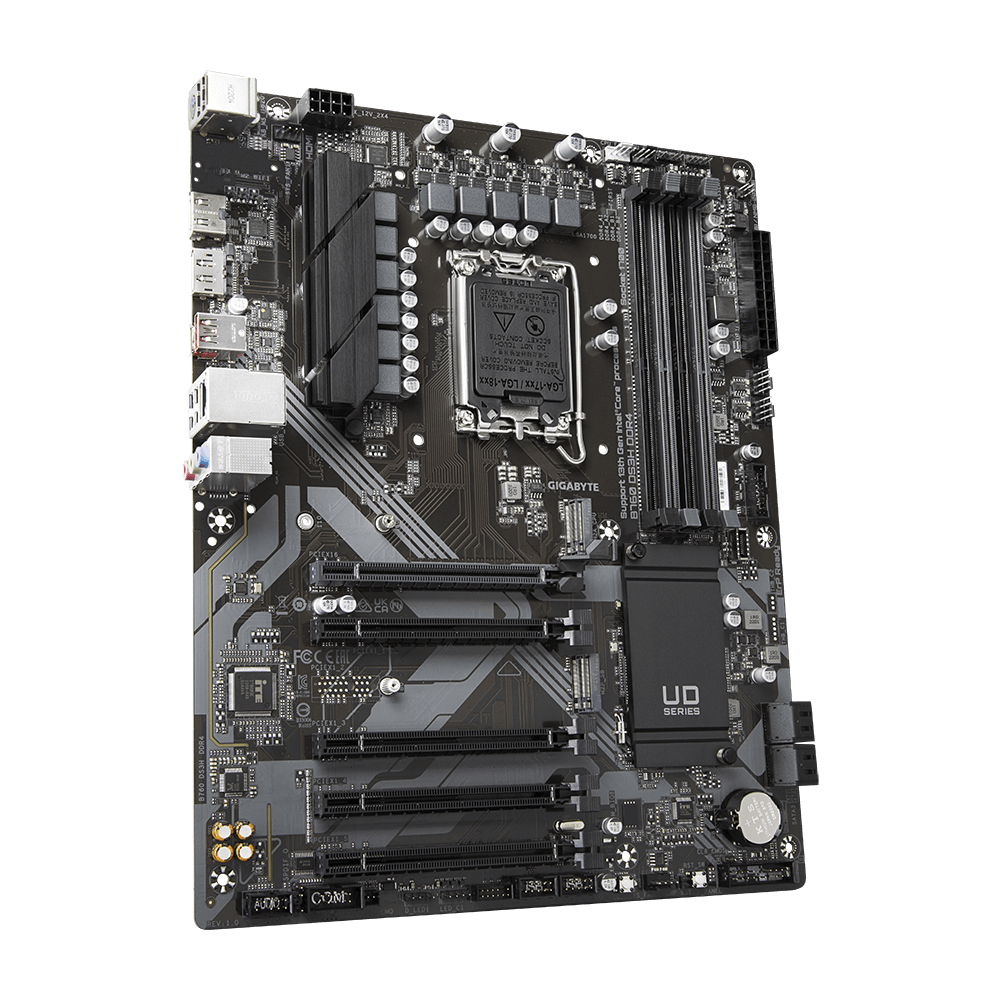

Placa de Bază GIGABYTE B760 DS3H DDR4 LGA1700

Placa de baza Gigabyte B760 DS3H DDR4 LGA1700 DDR4, 4x sloturi ram, max. 128GB, frecventa maxima suportata 5333MHz, 1x DisplayPort, 1x HDMI, 5x PCIe x16, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, ATX

Specificație: Placa de Bază GIGABYTE B760 DS3H DDR4 LGA1700

PCI	0
Serial-or-Paralel	No/No

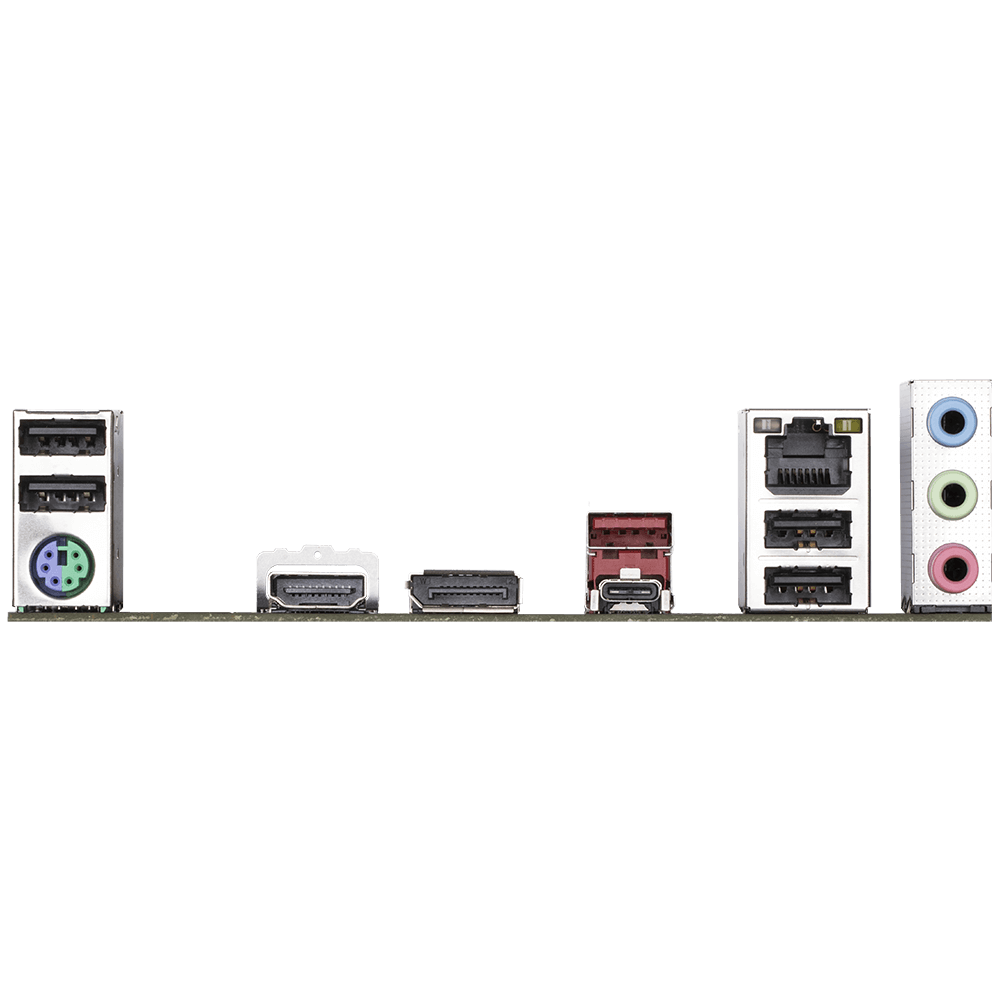

Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
HDMI version	2.0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
12V power connector	Yes
Number of storage drives supported	6
S/PDIF out connector	Yes
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Motherboard chipset	Intel B760 Express
PCI Express x16 slots	5
Bundled software	Norton Internet Security
Maximum internal memory supported by processor	128 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speeds	5333 MHz
Microphone in	Yes
Height	35 mm
Cables included	SATA
Headphone outputs	3
Width	305 mm
Depth	244 mm
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.31 kg
Producator	GIGABYTE
Garantie	36
