Name: Placa de bază Gigabyte B650M GAMING PLUS WIFI AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650M GAMING PLUS WF
Price: 847.17 RON
Availability: OutOfStock

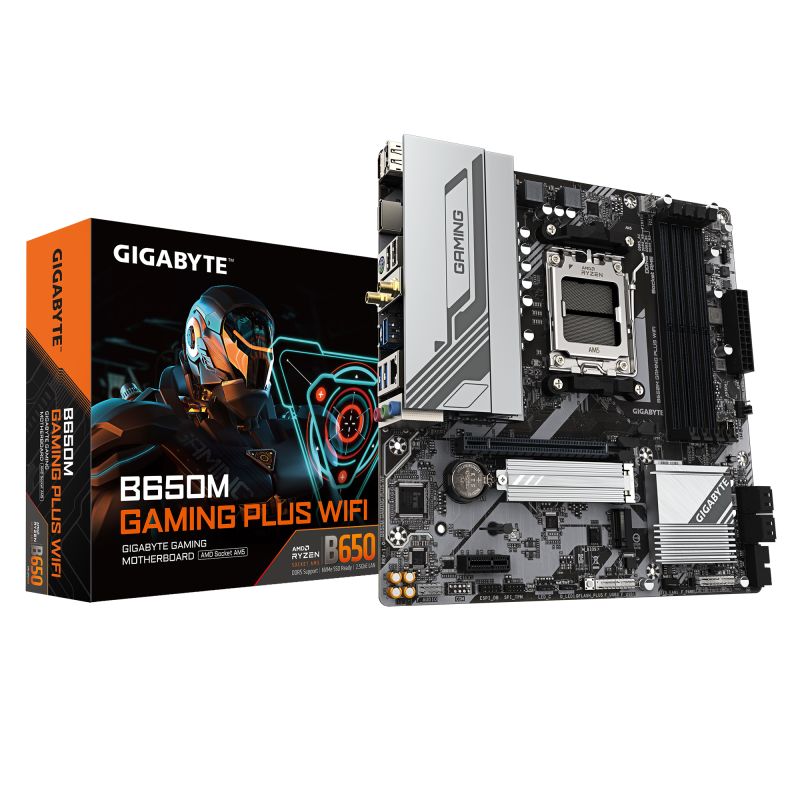

Placa de bază Gigabyte B650M GAMING PLUS WIFI AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte B650M GAMING PLUS WIFI AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Processor manufacturer	AMD
USB 2.0 ports quantity	2
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
DisplayPorts quantity	2
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
ECC сompatibility	Non-ECC
Number of storage drives supported	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC health monitoring	Fan, Temperature, Voltage
Motherboard chipset	AMD B650
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
1st M.2 largest key size	2580
RAM-Slots	4
MB-Format	micro-ATX
Supported memory clock speeds	8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
MB-Socket	AM5
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Width	244 mm
Depth	244 mm
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Package width	270 mm
Package depth	268 mm
Package weight	1.53 kg
Weight	1.44 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
