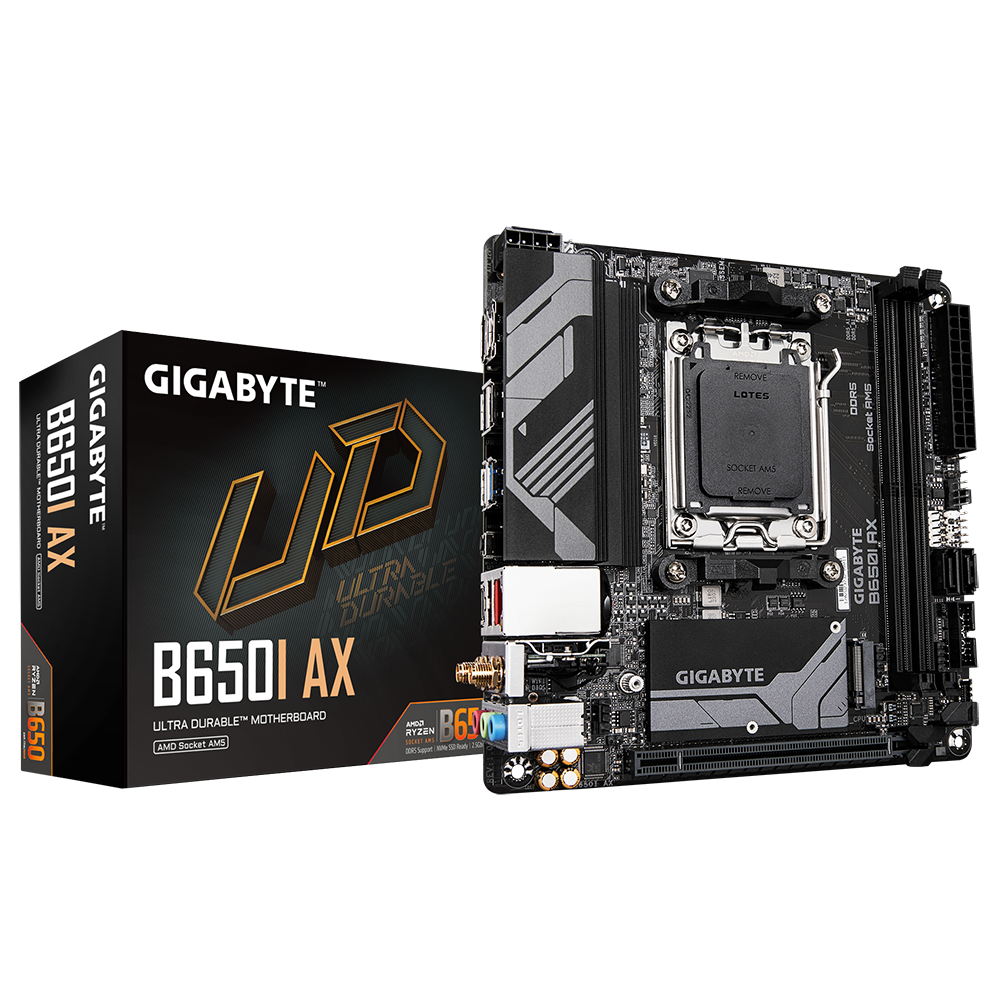

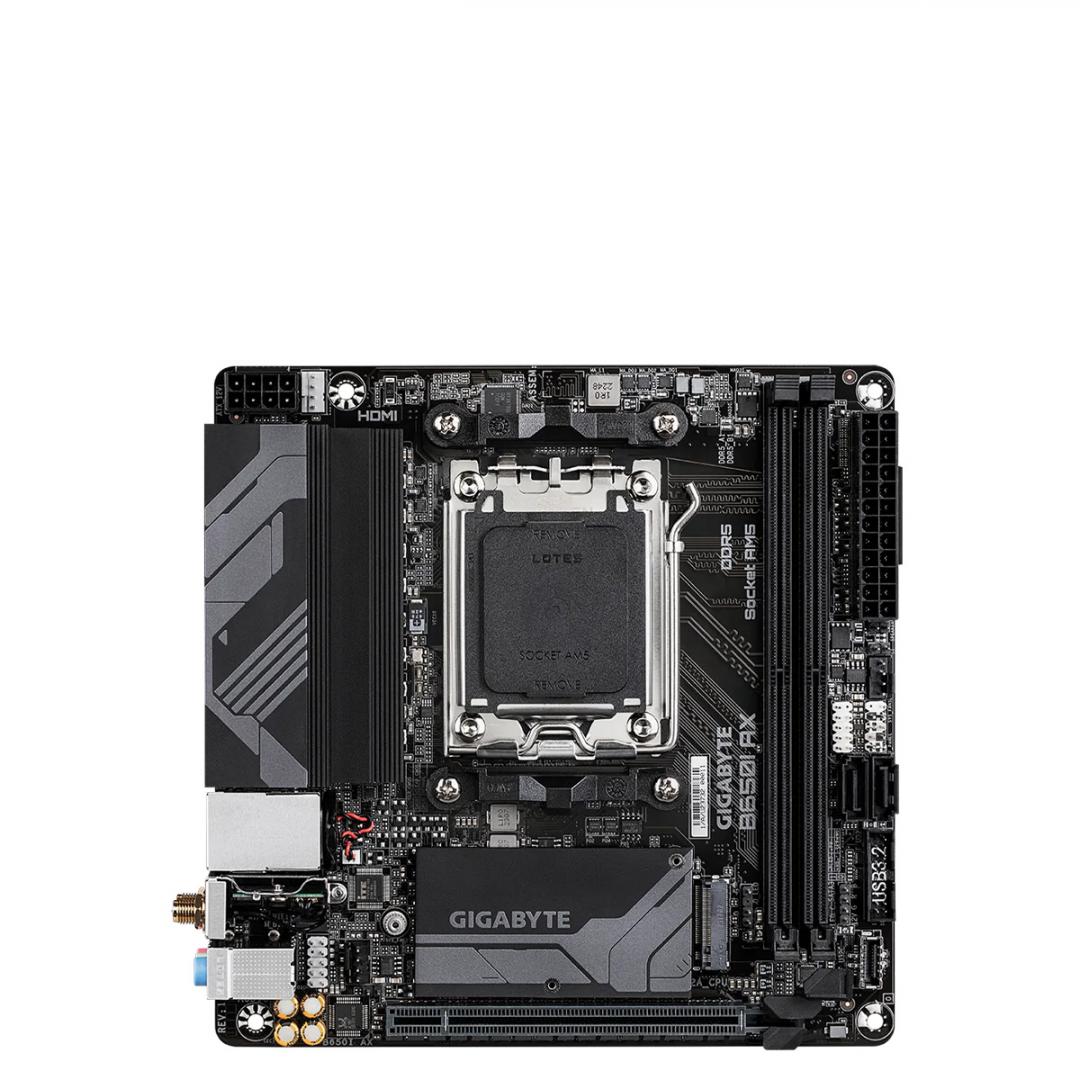

Name: Placa de Bază GIGABYTE B650I Ax AM5
Brand: GIGABYTE
SKU: B650I AX
Price: 990.25 RON
Availability: InStock

Placa de Bază GIGABYTE B650I Ax AM5

Placa de baza GIGABYTE B650I AX AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE x16, 1x M.2, 2x SATA 6gb/s, Mini-ITX

Specificație: Placa de Bază GIGABYTE B650I Ax AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
RAID levels	0, 1
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Processor manufacturer	AMD
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
Number of SATA III connectors	2
USB 2.0 ports quantity	3
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
HDCP	Yes
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	Mini-ITX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory per slot	64 GB
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Discrete graphics support	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
1st M.2 largest key size	2280
USB 2.0 connectors	1
PC health monitoring	Fan, Temperature, Voltage
Motherboard chipset	AMD B650
Motherboard form factor	mini ITX
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of HDDs supported	2
Number of EATX power connectors	1
Number of RGB LED pin headers	2
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Number of storage drives supported	3
PCI-Ex1	0
RAM-Slots	2
MB-Socket	AM5
MB-Format	mini-ITX
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Country of origin	China
Width	170 mm
Package depth	180 mm
Depth	170 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	222 mm
Package height	65 mm
Package weight	879 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
