Name: Placa de bază Gigabyte B650 EAGLE AX AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650 EAGLE AX
Price: 730.82 RON
Availability: InStock

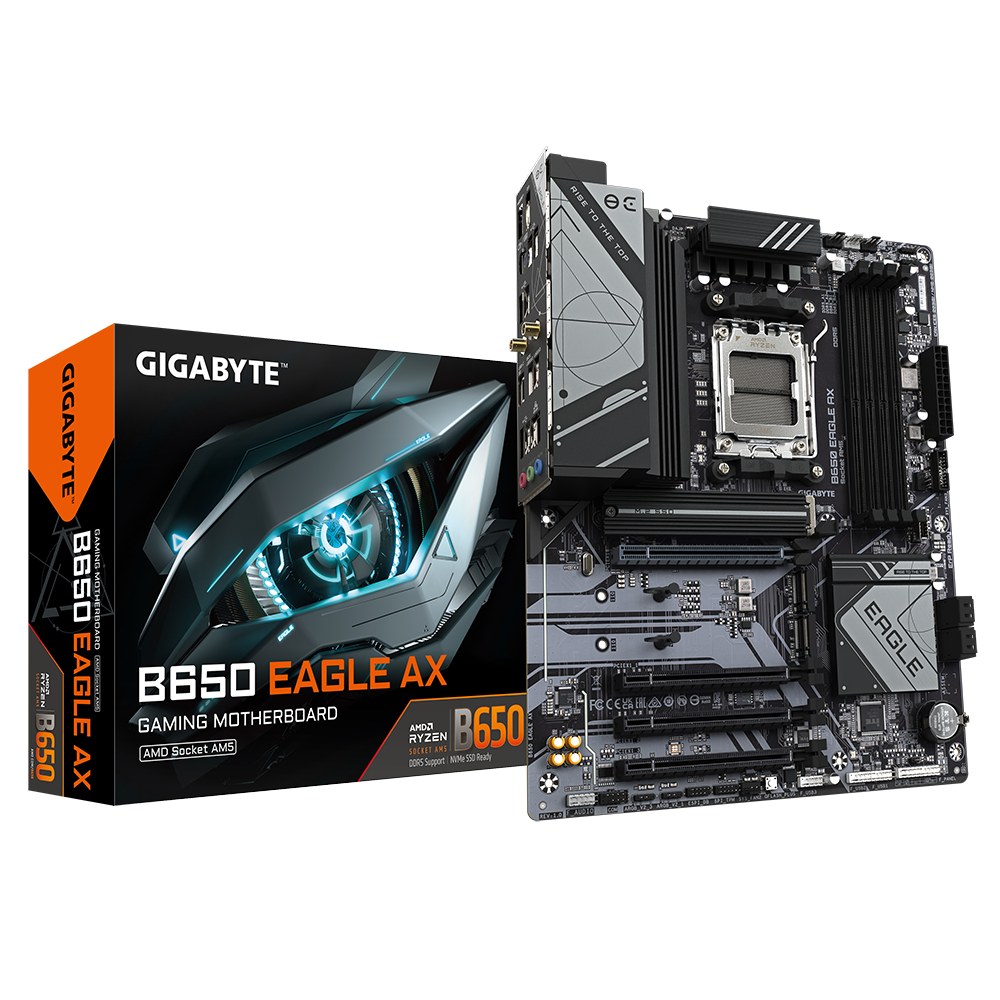

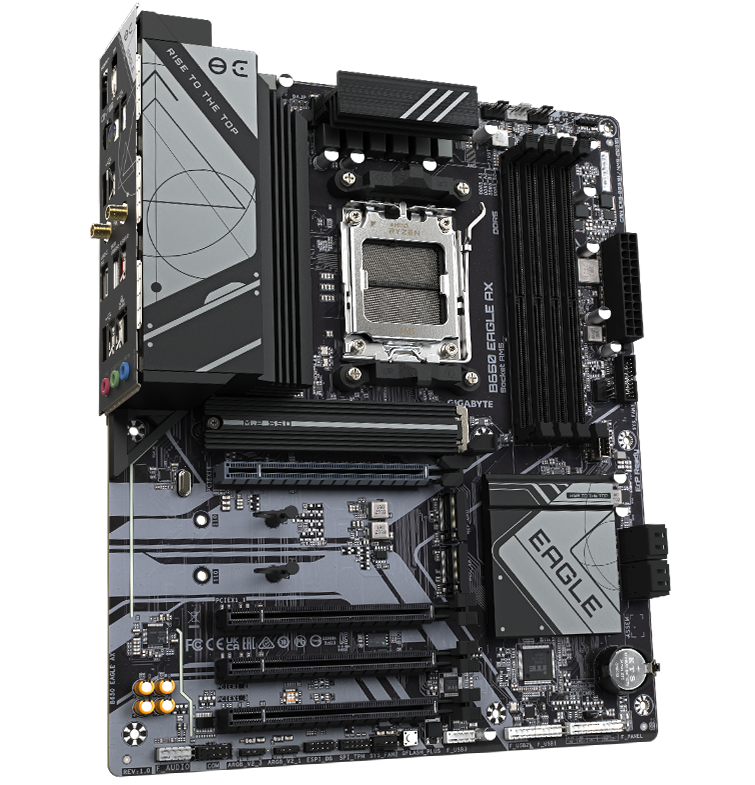

Placa de bază Gigabyte B650 EAGLE AX AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza GIGABYTE B650 EAGLE AX AM5, 4x DDR5, 1x DP 1x HDMI, 4x PCIE x16, 3x M.2, 4x SATA 6gb/s, ATX

Specificație: Placa de bază Gigabyte B650 EAGLE AX AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
HDCP	Yes
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Number of storage drives supported	7
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Motherboard form factor	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Discrete graphics support	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
USB 2.0 connectors	3
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors	3
Motherboard chipset	AMD B650
USB 2.0 ports quantity	6
PCI Express x16 (Gen 3.x) slots	3
Supported memory clock speeds	7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
PCI-Ex1	0
PCI-Ex16	3
RAM-Slots	4
MB-Format	micro-ATX
MB-Socket	AM5
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Width	305 mm
Depth	244 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Brown
Package weight	1.94 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
