Name: Placa de bază Gigabyte B550M K AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: B550M K
Price: 387.40 RON
Availability: OutOfStock

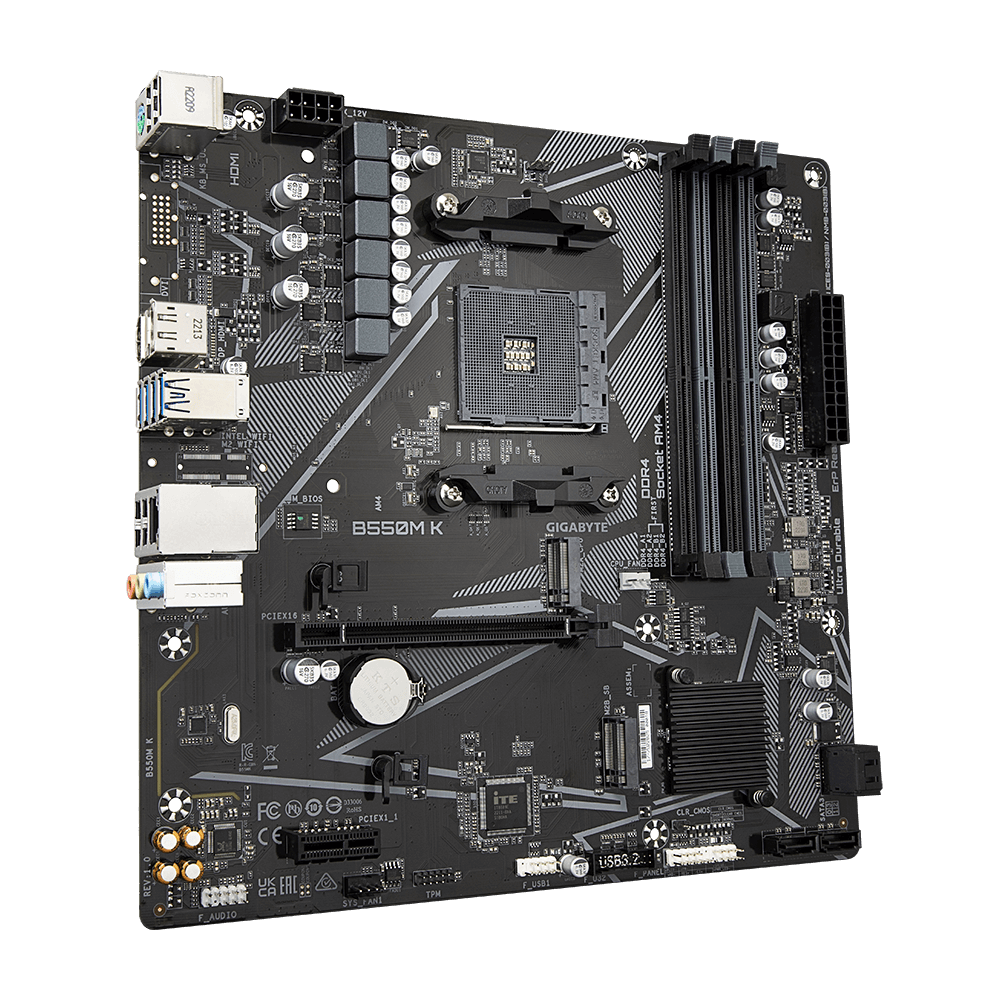

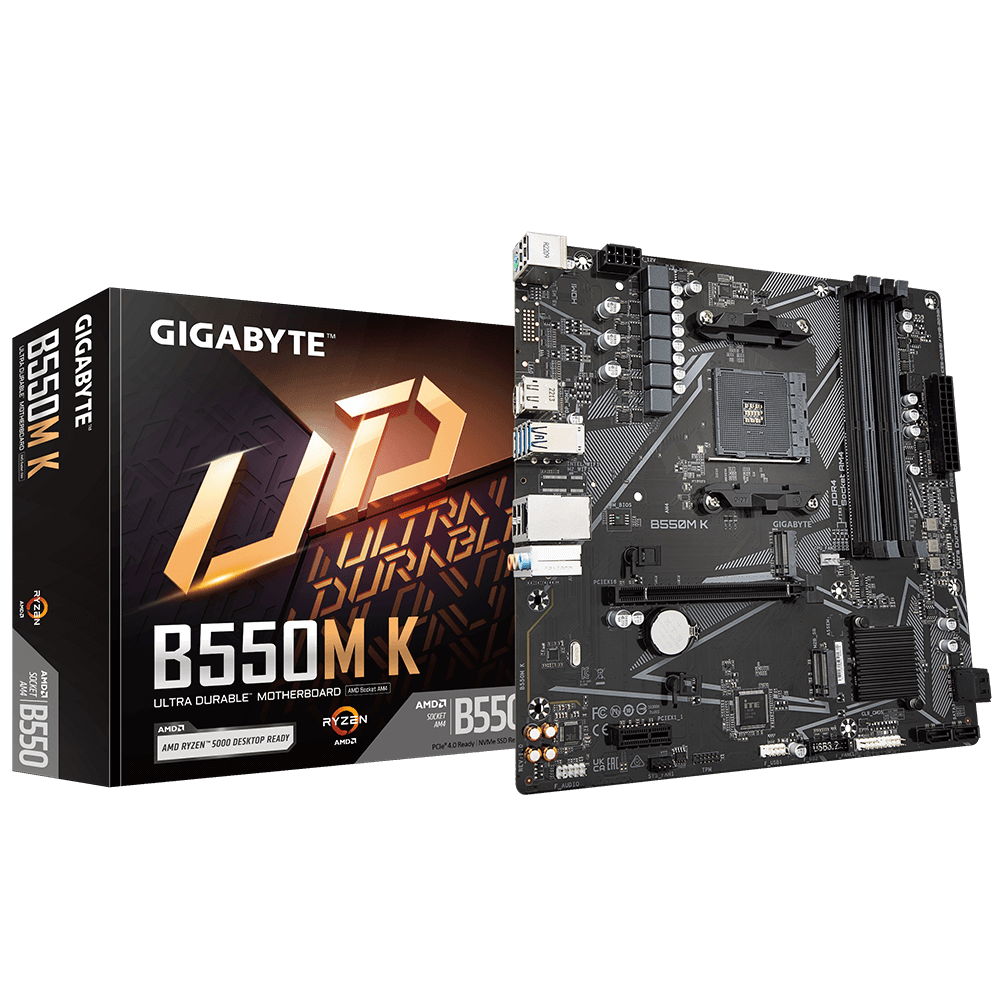

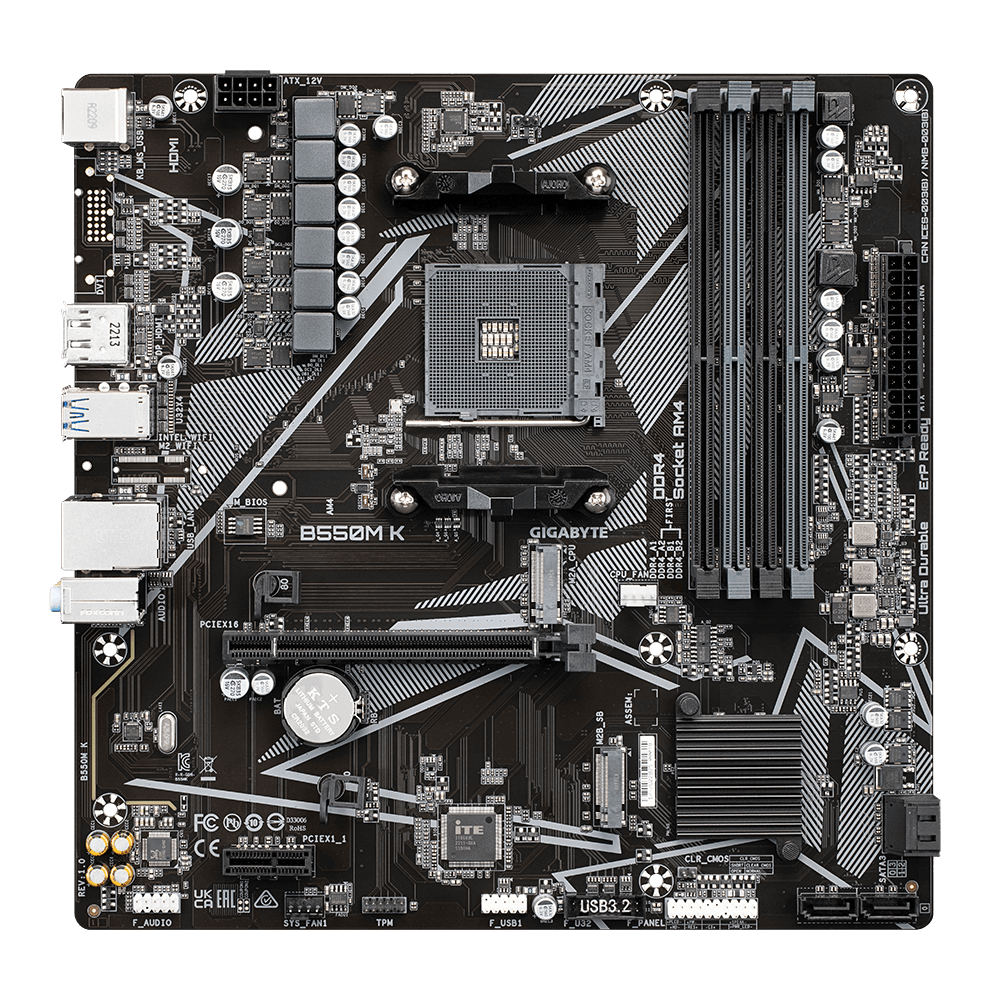

Placa de bază Gigabyte B550M K AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte B550M K AM4, 4x DDR4, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gb/s, 1Gbps LAN, mATX

Specificație: Placa de bază Gigabyte B550M K AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Cooling type	Active
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
On-board graphics card	Yes
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 slots	1
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Graphics card family	AMD
Motherboard chipset	AMD B550
PCI Express x1 slots	1
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Maximum resolution	5120 x 2880 pixels
Model Chipset	B550
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
TPM connector	Yes
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Total number of SATA connectors	4
12V power connector	Yes
Number of storage drives supported	6
BIOS memory size	128 Mbit
RAID levels	0, 1, 10
USB 2.0 connectors	1
PC health monitoring	Fan, Temperature, Voltage
Supported processor sockets	Socket AM4
Maximum internal memory supported by processor	128 GB
Audio connector	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported storage drive interfaces	M.2, SATA
Power fan connector	Yes
Compatible processor series	AMD Ryzen™ 5
Memory channels	Dodeca-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz
Supported storage drive types	SSD
Number of HDDs supported	2
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	265 mm
Package depth	265 mm
Package weight	837 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
