Name: Placa de bază Gigabyte B550M DS3H AC R2 AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: B550M DS3H AC R2
Price: 502.14 RON
Availability: InStock

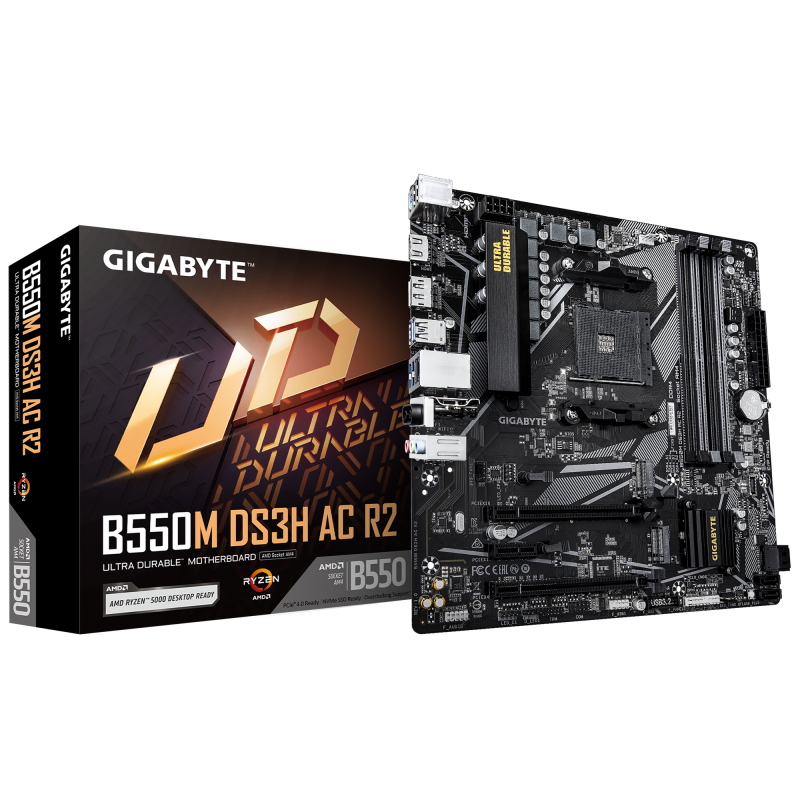

Placa de bază Gigabyte B550M DS3H AC R2 AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte B550M DS3H AC R2 AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
WLAN controller model	Realtek RTL8821CE
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Cooling type	Passive
Motherboard chipset	AMD B550
HDCP	Yes
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Maximum resolution	5120 x 2880 pixels
Model Chipset	B550
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Number of storage drives supported	6
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
RAID levels	0, 1, 10
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
PC health monitoring	Fan, Temperature, Voltage
Number of EPS power connectors (8-pin)	1
Supported processor sockets	Socket AM4
Audio Chip	Realtek ALC1220-VB
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of RGB LED pin headers	5
Maximum internal memory per slot	32 GB
RAM-Slots	4
MB-Format	micro-ATX
MB-Socket	AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
2nd M.2 highest PCI Express generation	3.0
USB Type-C	N/A
PCI-Ex16	2
Supported memory clock speeds	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Microphone in	Yes
Headphone outputs	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Batteries included	Yes
Bluetooth version	5.0
Height	35 mm
Width	244 mm
Depth	244 mm
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	270 mm
Package depth	268 mm
Package weight	1.07 kg
Weight	980 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
