Name: Placa de bază Gigabyte B550 GAMING X V2 AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: B550 GAMING X V2
Price: 539.50 RON
Availability: OutOfStock

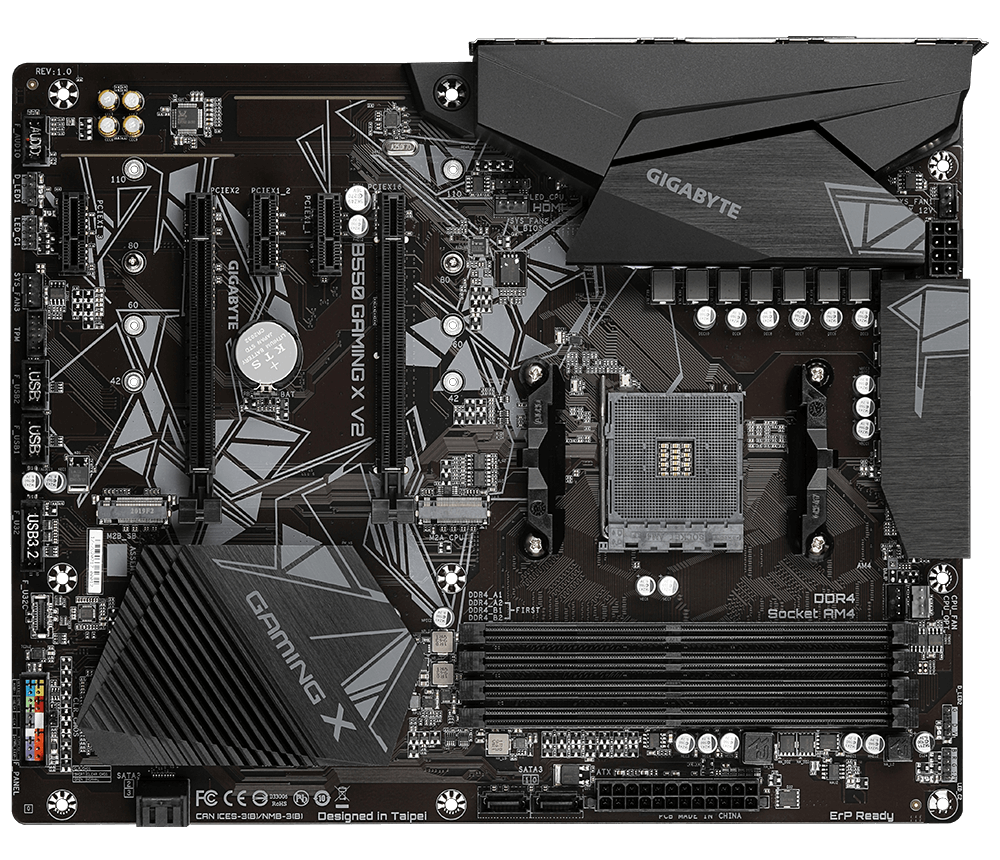

Placa de bază Gigabyte B550 GAMING X V2 AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza B550 foloseste un design digital Twin Power de 10 + 3 faze cu MOSFET-uri RDS reduse (pornite) pentru a sprijini CPU-urile AMD Ryzen ™ de a 3-a generatie, oferind o precizie incredibila in furnizarea energiei celor mai consumatoare de energie si a componentelor sensibile la energie ale placii de baza, precum si oferind performante imbunatatite ale sistemului si scalabilitate hardware superioara.

Specificație: Placa de bază Gigabyte B550 GAMING X V2 AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DVI/HDMI
Wi-FI	No
CPU încorporat	No
RAID support	Yes
Component for	PC
Cooling type	Active
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Graphics card family	AMD
Motherboard chipset	AMD B550
HDCP	Yes
DVI port	Yes
DVI-D ports quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B550
Gaming	Da
Format:	ATX
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
PS/2 ports quantity	1
Motherboard chipset family	AMD
Audio Chip	Realtek ALC887
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard form factor	ATX
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Total number of SATA connectors	4
12V power connector	Yes
Number of storage drives supported	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
PCI Express x1 (Gen 3.x) slots	3
PCI Express x16 slots	2
Maximum internal memory supported by processor	128 GB
Supported processor sockets	Socket AM4
Power fan connector	Yes
PC health monitoring	CPU, Fan, LED, Power supply, Temperature, Voltage
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
PCI Express x1 slots	3
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 2000 Series
Supported memory clock speeds	2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4266,4400,4733 MHz
Maximum graphics card memory	16 MB
S/PDIF out connector	No
Supported DIMM module capacities	32GB
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Harmonized System (HS) code	84733020
Width	305 mm
Depth	244 mm
Country of origin	China
Weight	1.12 kg
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Brown
Package weight	1.71 kg
Producator	GIGABYTE
Garantie	36
