Name: Placa de bază Gigabyte A620M DS3H AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: A620M DS3H
Price: 511.33 RON
Availability: InStock

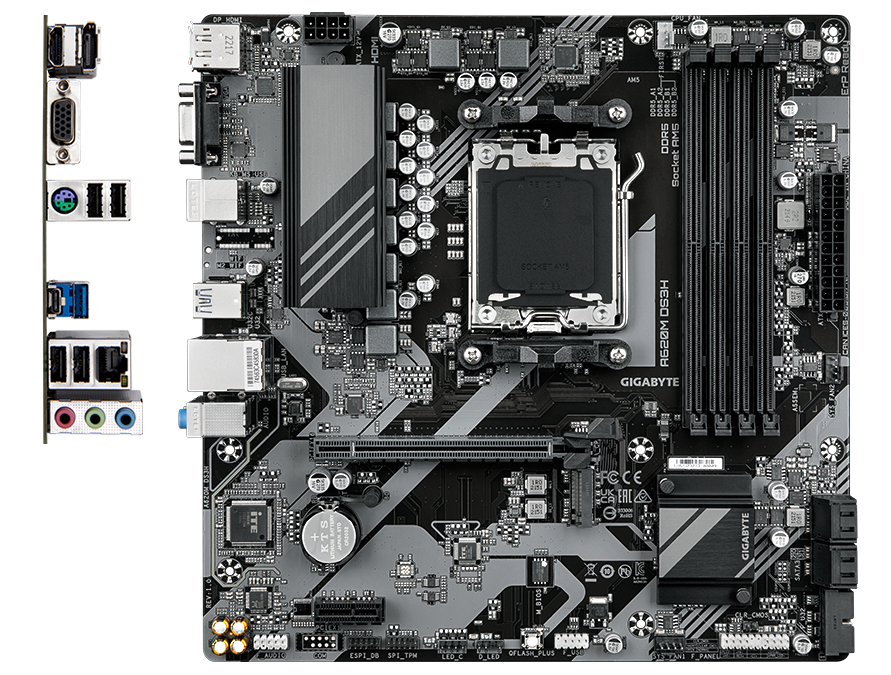

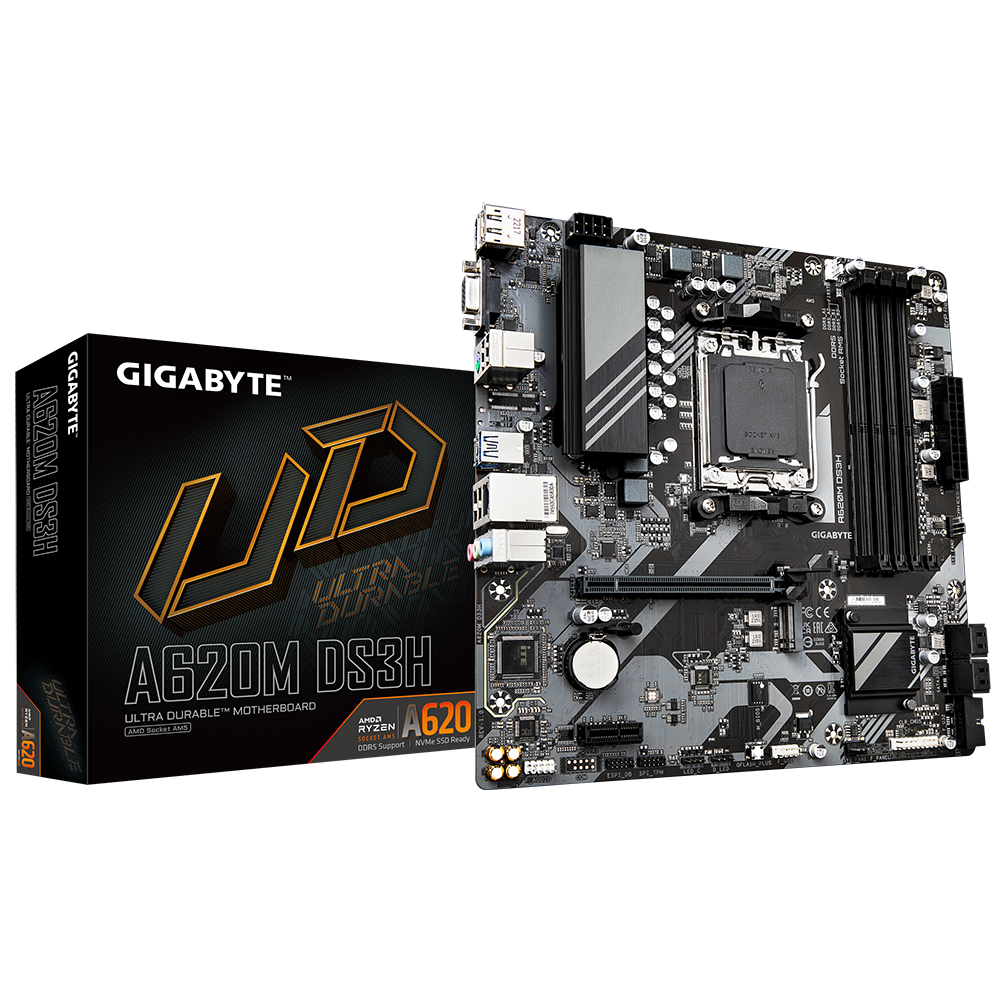

Placa de bază Gigabyte A620M DS3H AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

MB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port, 1x HDMI, 1x D-Sub, Micro ATX https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-10/sp#sp

Specificație: Placa de bază Gigabyte A620M DS3H AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
PCI Express x1 slots	1
Maximum internal memory	192 GB
HDCP	Yes
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	A620
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Maximum internal memory supported by processor	192 GB
Total number of SATA connectors	4
12V power connector	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
USB 2.0 connectors	1
Number of storage drives supported	4
Number of HDDs supported	1
Motherboard chipset	AMD A620
Supported memory clock speeds	4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
RAM-Slots	4
MB-Format	micro-ATX
MB-Socket	AM5
Microphone in	Yes
Height	35 mm
Cables included	SATA
Width	244 mm
Headphone outputs	3
Depth	244 mm
Country of origin	China
Package height	54 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	265 mm
Package depth	265 mm
Package weight	1.07 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
