Name: Placa de bază Gigabyte A620I AX AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: A620I AX
Price: 983.26 RON
Availability: OutOfStock

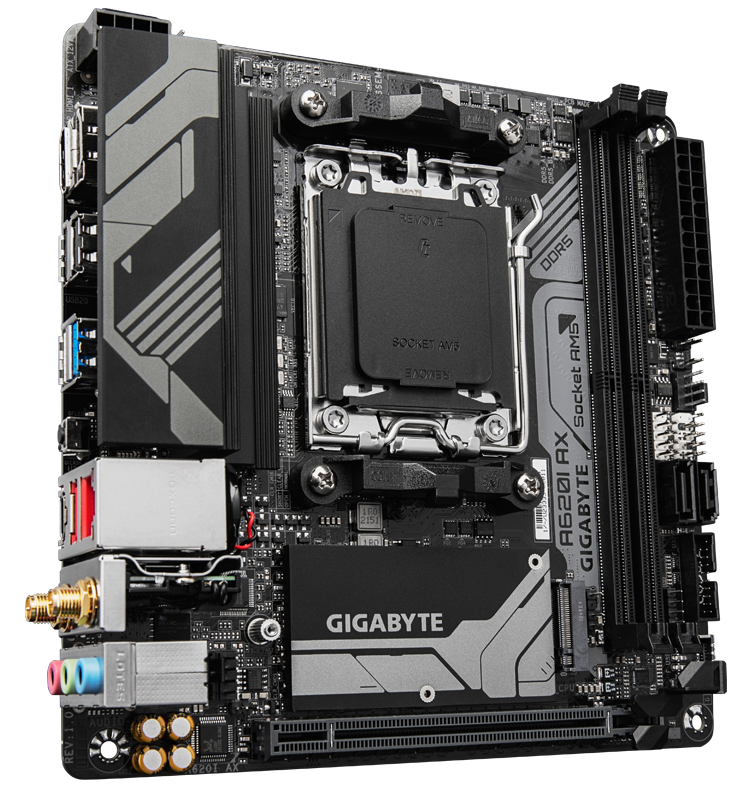

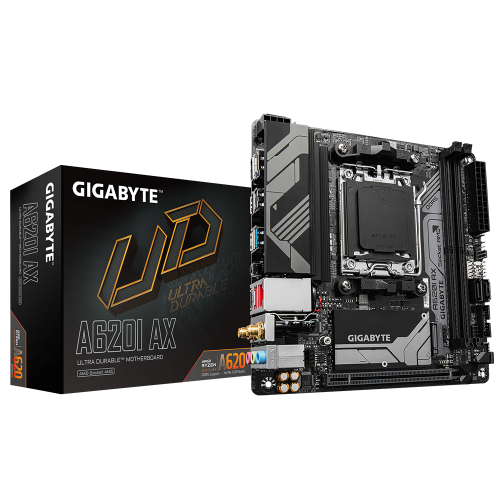

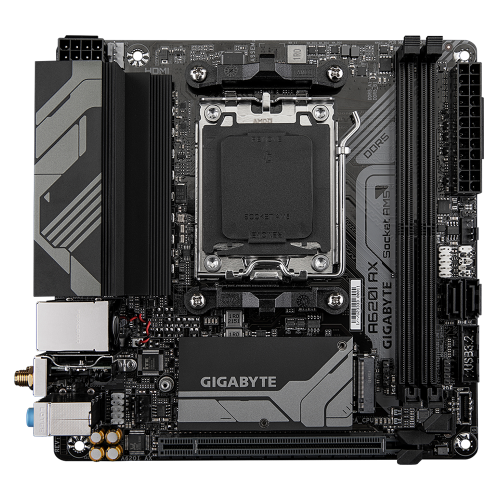

Placa de bază Gigabyte A620I AX AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp

Specificație: Placa de bază Gigabyte A620I AX AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
RAID levels	0, 1
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	96 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Processor manufacturer	AMD
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
Number of SATA III connectors	2
USB 2.0 ports quantity	3
PCI Express x16 slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Total number of SATA connectors	2
Number of M.2 (M) slots	1
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	A620
Gaming	Nu
Format:	Mini-ITX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
12V power connector	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Bundled software	Norton Internet Security
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
USB 2.0 connectors	1
Audio connector	Yes
Motherboard form factor	mini ITX
Maximum internal memory supported by processor	96 GB
Number of HDDs supported	2
Motherboard chipset	AMD A620
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Number of storage drives supported	3
Microphone in	Yes
Bluetooth version	5.3
Height	35 mm
Cables included	SATA
Headphone outputs	3
Country of origin	China
Width	170 mm
Package depth	180 mm
Depth	170 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	222 mm
Package height	65 mm
Package weight	860 g
Producator	GIGABYTE
Garantie	36
