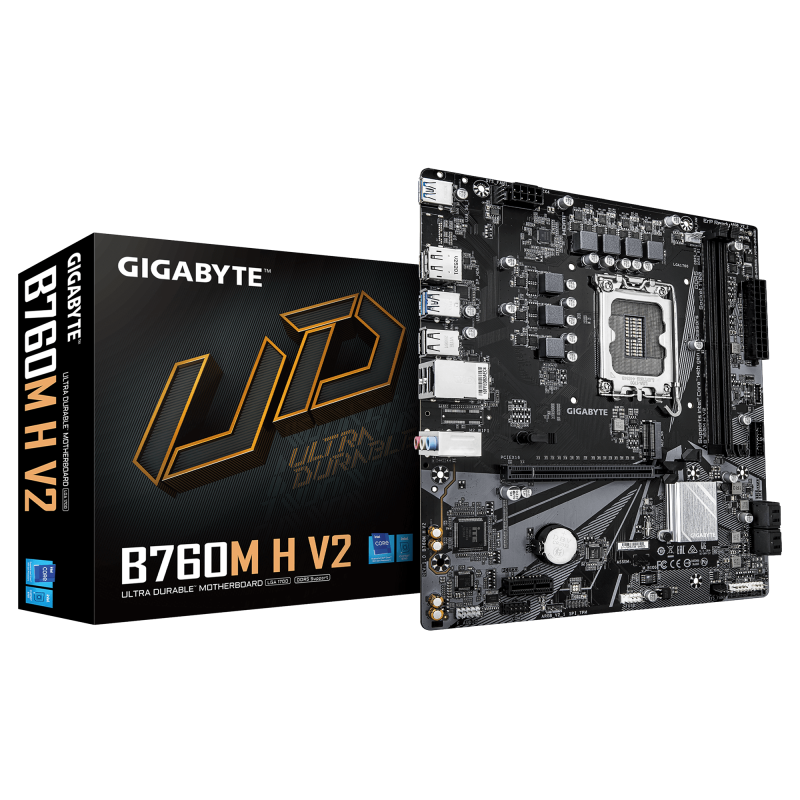

Placa de baza GigaByte 760M H V2 DDR5 LGA1700

Name: Placa de baza GigaByte 760M H V2 DDR5 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760M H V2
Price: 507.26 RON
Availability: InStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 576.20 lei.Prețul curent este: 507.26 lei.

În stoc

SKU: B760M H V2 Categorie Placi de baza

Placa de baza GigaByte 760M H V2 DDR5 LGA1700

Specificație: Placa de baza GigaByte 760M H V2 DDR5 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
Cooling type	Passive
Number of M.2 (M) slots	1
HDCP	Yes
Screws included	Yes
DisplayPort version	1.2
HDCP version	2.3
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Motherboard chipset	Intel B760 Express
1st M.2 largest key size	2280
USB 2.0 connectors	1
Number of storage drives supported	5
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	2
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
Battery capacity	220 mAh
USB Type-C	N/A
Bundled software	Norton® Internet Security (OEM version)
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Width	244 mm
Height	3.5 mm
Country of origin	China
Package height	54 mm
Depth	220 mm
Package weight	850 g
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Weight	770 g
Supported memory clock speeds	8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz
Producator	GIGABYTE
Garantie	36
