Name: Placa de bază Biostar H81MV3 3.0 LGA1150 - A.W.P.S Store
Brand: BIOSTAR
SKU: H81MHV3 3.0
Price: 310.01 RON
Availability: InStock

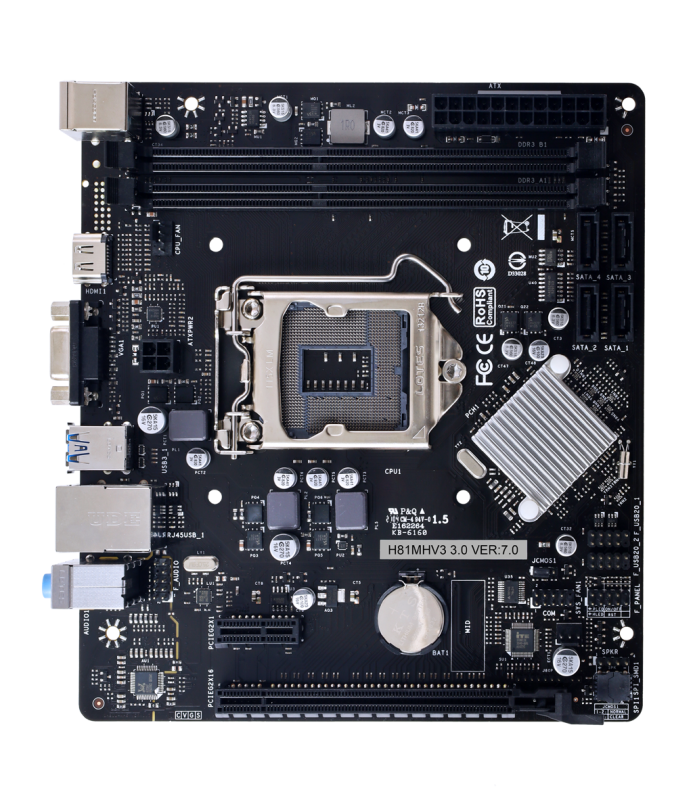

Placa de bază Biostar H81MV3 3.0 LGA1150

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza BIOSTAR H81MV3 3.0 LGA1150, 2x DDR3, 1x PCIE 2.0 x1 1x PCIE 2.0 x16, 1x VGA 1x HDMI, 2x SATA II 3GB/s 2x SATA III 6GB/s, mATX

Specificație: Placa de bază Biostar H81MV3 3.0 LGA1150

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
PCI-Ex16	1
Onboard-CPU	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	16 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Number of SATA III connectors	2
Audio output channels	5.1 channels
Number of memory slots	2
VGA (D-Sub) ports quantity	1
HDCP	Yes
DVI-D ports quantity	0
Model Chipset	H810
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1151
Tip Memorie	DDR3
Numar sloturi memorie	2
Memorie maxima	16 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	5.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	N/A
RJ-45 LAN	1
Memory slots type	DIMM
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
Audio Chip	Realtek ALC887
Clear CMOS jumper	Yes
Front panel connector	Yes
Motherboard chipset family	Intel
Maximum number of SMP processors	1
ECC сompatibility	Non-ECC
Peripheral (Molex) power connectors (4-pin)	1
PS/2 ports quantity	2
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 2.x) slots	1
MB-Format	micro-ATX
PCI-Ex1	2
RAM-Slots	2
USB3	2
USB Type-C	N/A
MB-Socket	1150
Processor socket	LGA 1150 (Socket H3)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066,1333,1600 MHz
Supported storage drive interfaces	SATA II, SATA III
DirectX version	11.1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Number of SATA II connectors	2
Motherboard chipset	Intel® H81
Cables included	SATA
Headphone outputs	3
Depth	190 mm
Width	170 mm
Producator	BIOSTAR
Garantie	24
