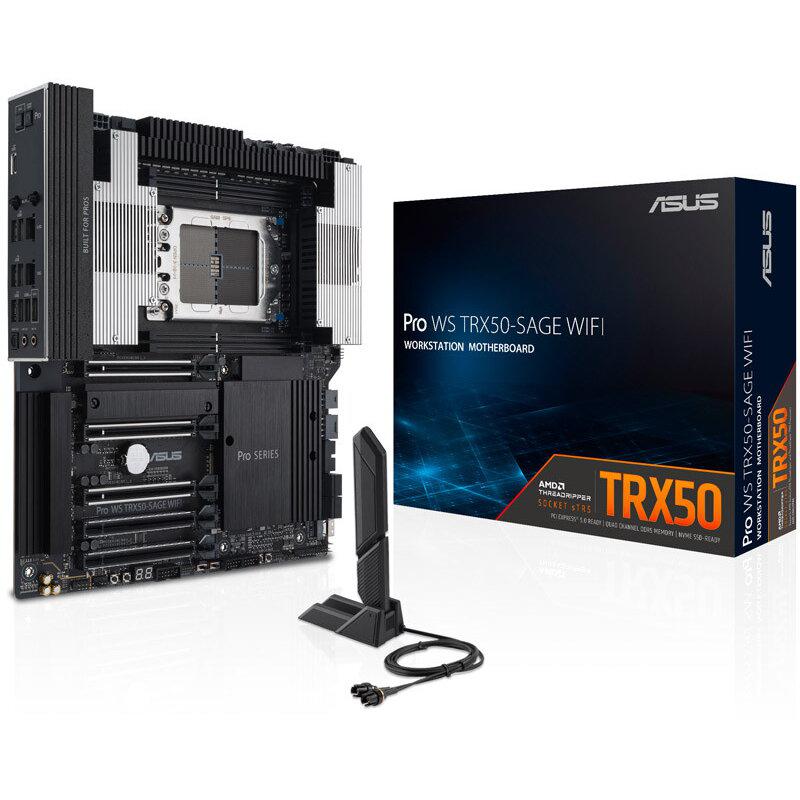

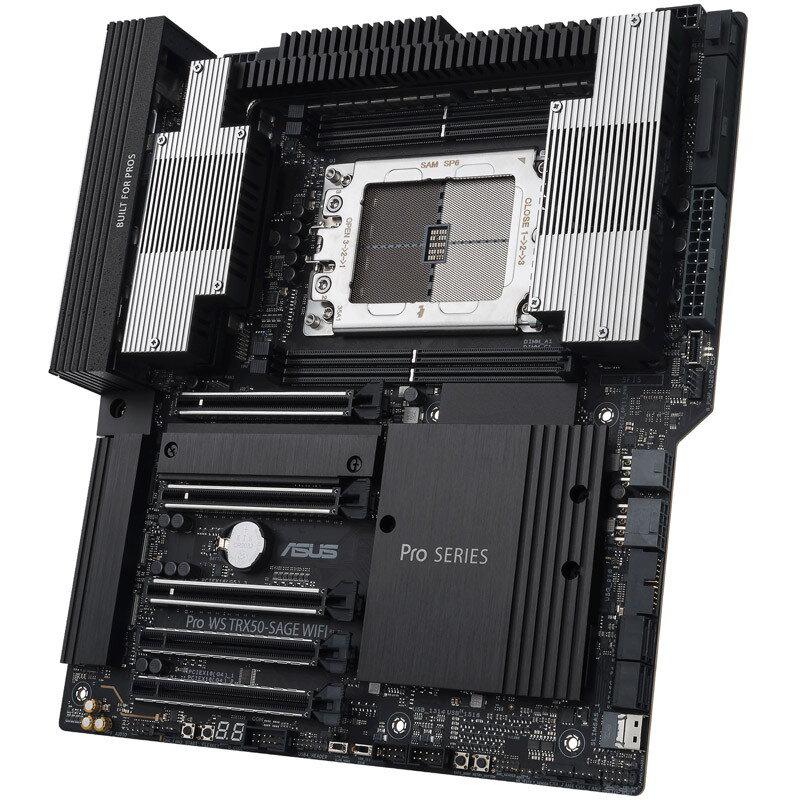

Name: Placa de Bază Asus Pro Ws TRX50 Sage Wi-Fi TRX50
Brand: ASUS
SKU: PRO WS TRX50-SAGE WIFI
Price: 5950.70 RON
Availability: OutOfStock

Placa de Bază Asus Pro Ws TRX50 Sage Wi-Fi TRX50

Placa de Baza ASUS PRO WS TRX50 SAGE WIFI 4x DDR5, 5x PCIE x16, 3x M.2, 4x SATA 6gb/s

Specificație: Placa de Bază Asus Pro Ws TRX50 Sage Wi-Fi TRX50

PCI	0
Serial-or-Paralel	No/No
Video-Connection	None
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
USB connector type	USB Type-A, USB Type-C
Memory channels	Quad-channel
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	TRX50
Gaming	Nu
Format:	SSI CEB
Soclu Procesor	Socket sTR5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	N/A
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	N/A
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	2
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
Number of chassis fan connectors	4
TPM connector	Yes
Number of M.2 (M) slots	3
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
Clear CMOS button	Yes
Number of COM connectors	1
WiFi-AP antenna jack	1
Chassis intrusion connector	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
ECC сompatibility	ECC
Processor socket	Socket sTR5
Compatible processor series	AMD Ryzen Threadripper 1000 Series
Motherboard chipset	AMD TRX50
PCI Express x16 (Gen 5.x) slots	3
Audio Chip	Realtek ALC1220P
Integrated SAS ports	1
LAN controller	Intel I226-LM
Component for	Workstation
Motherboard form factor	SSI CEB
Microphone in	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Ethernet LAN (RJ-45) ports	2
Width	305 mm
Package height	100 mm
Package width	320 mm
Depth	280 mm
Package depth	380 mm
Package weight	4.85 kg
Cables included	PCIe, SATA
Weight	2.53 kg
Producator	ASUS
Garantie	36
