Name: Placa de Bază Asus Prime X870-P AM5
Brand: ASUS
SKU: PRIME X870-P
Price: 1795.28 RON
Availability: InStock

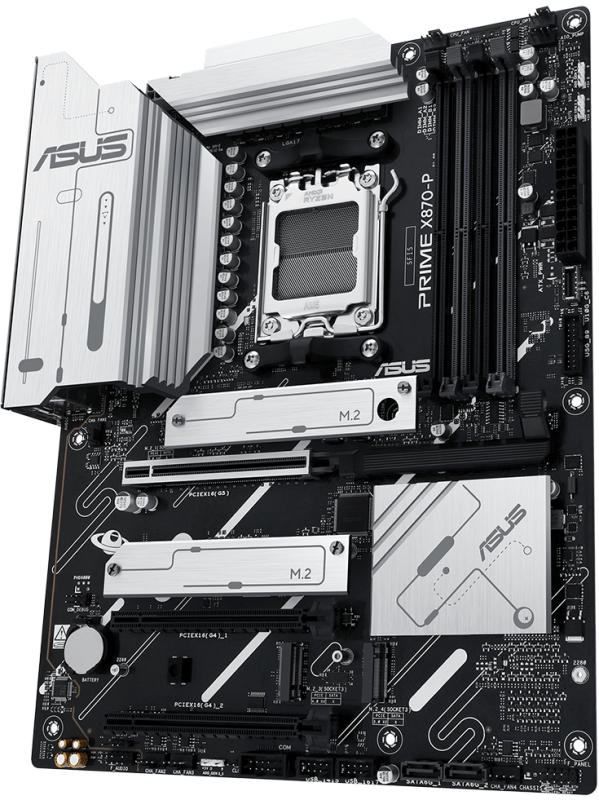

Placa de Bază Asus Prime X870-P AM5

Placa de Baza ASUS PRIME X870-P AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 3x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, ATX

Specificație: Placa de Bază Asus Prime X870-P AM5

PCI	0
Serial-or-Paralel	No/No
Wi-FI	No
USB3	4-8
Onboard-CPU	Yes
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
DisplayPort version	1.4a
Audio output channels	7.1 channels
Number of SATA III connectors	2
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
Cooling type	Passive
PCI Express x16 (Gen 4.x) slots	2
Maximum internal memory	192 GB
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Model Chipset	X870
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of chassis fan connectors	4
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
12V power connector	Yes
Number of storage drives supported	6
Number of COM connectors	1
Number of M.2 (M) slots	4
Back-to-BIOS button	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Supported memory clock speeds	8000 MHz
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
USB4 Gen 2x2 ports quantity	2
Motherboard chipset	AMD X870
Number of HDDs supported	2
MB-Format	ATX
PCI-Ex1	0
RAM-Slots	4
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	5
Microphone in	Yes
Cables included	SATA
Width	305 mm
Depth	244 mm
Package height	68 mm
Package weight	1.5 kg
Power source type	ATX
Weight	1.44 kg
Package depth	273 mm
Package width	353 mm
Height	4.8 mm
Producator	ASUS
Garantie	36
