Name: Placa de bază ASUS PRIME H810M-A-CSM LGA1851 - A.W.P.S Store
Brand: ASUS
SKU: PRIME H810M-A-CSM
Price: 745.73 RON
Availability: InStock

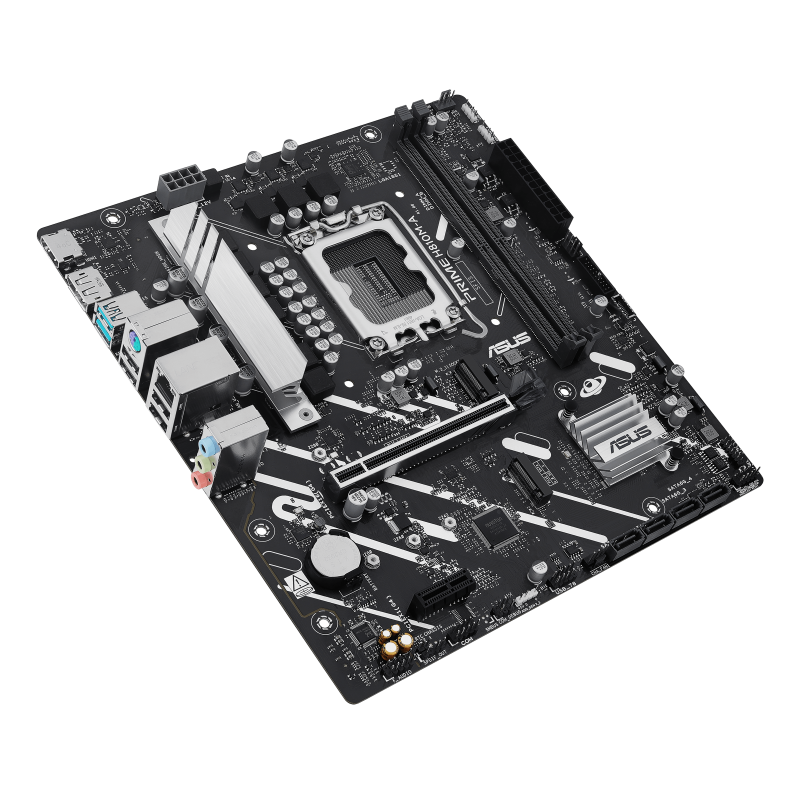

Placa de bază ASUS PRIME H810M-A-CSM LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază ASUS PRIME H810M-A-CSM LGA1851

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
Component for	PC
Wake-on-LAN ready	Yes
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	H810
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
2nd M.2 highest PCI Express generation	4.0
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
ECC сompatibility	Non-ECC
Number of storage drives supported	6
S/PDIF out connector	Yes
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Compatible processor series	Intel Core Ultra (Series 2)
Supported memory clock speeds	6400 MHz
Number of M.2 (E) slots	1
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
PCI Express x1 (Gen 4.x) slots	1
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
Motherboard chipset	Intel H810
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
LAN controller	Intel I219V
Microphone in	Yes
Depth	222 mm
Width	244 mm
Height	37 mm
Power source type	ATX
Package width	270 mm
Package weight	782 g
Package height	51.5 mm
Package depth	263 mm
Weight	534 g
Producator	ASUS
Garantie	36
