Name: Placa de bază ASUS PRIME H510M-A WIFI LGA1200 - A.W.P.S Store
Brand: ASUS
SKU: PRIME H510M-A WIFI
Price: 630.58 RON
Availability: OutOfStock

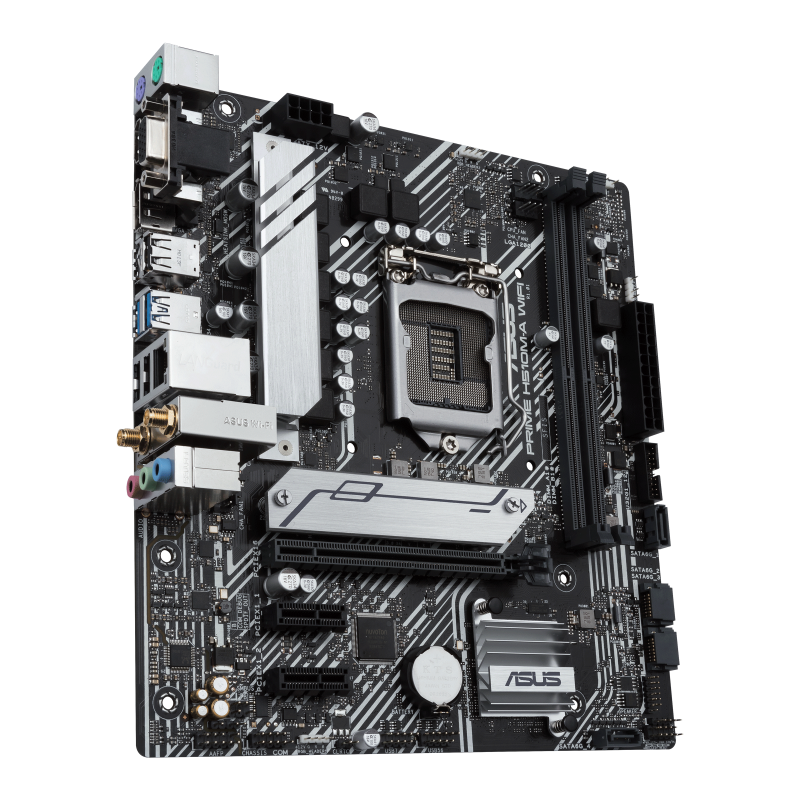

Placa de bază ASUS PRIME H510M-A WIFI LGA1200

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placile de baza ASUS din seria Prime sunt proiectate in mod expert pentru a elibera intregul potential al procesoarelor Intel® din generatiile 11 si 10. Dispunand de un design robust din punct de vedere energetic, solutii de racire complete si optiuni inteligente de reglaj, PRIME H510M-A WIFI ofera utilizatorilor zilnici si constructorilor de PC-uri DIY o gama de optiuni de reglare a performantelor prin intermediul unor functii software si firmware intuitive.

Specificație: Placa de bază ASUS PRIME H510M-A WIFI LGA1200

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	Yes
CPU încorporat	No
Component for	PC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Windows operating systems supported	Windows 10 x64
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
WLAN controller model	Intel Dual Band Wireless-AC 9462
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Intel® I219-V
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
DVI-D ports quantity	0
Drivers included	Yes
Model Chipset	H510
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1200
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
Maximum number of SMP processors	1
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
ECC сompatibility	Non-ECC
S/PDIF out connector	Yes
Number of COM connectors	1
BIOS memory size	128 Mbit
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
Processor socket	LGA 1200 (Socket H5)
Number of storage drives supported	5
Number of displays supported	3
Audio connector	Yes
PS/2 ports quantity	2
Number of mounting holes	6
Supported storage drive interfaces	M.2, SATA
Audio Chip	Realtek ALC887 / Realtek ALC897
Number of EATX power connectors	1
Motherboard chipset	Intel H510
Compatible processor series	Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported memory clock speeds	2133,2400,2666,2800,2933 MHz
Peripheral (Molex) power connectors (4-pin)	3
Microphone in	Yes
Headphone outputs	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.1
Harmonized System (HS) code	84733020
Cables included	SATA
Power source type	ATX
Width	226 mm
Depth	211 mm
Weight	815 g
Producator	ASUS
Garantie	36
