Name: Placa de bază ASUS PRIME B760-PLUS LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: PRIME B760-PLUS
Price: 819.00 RON
Availability: OutOfStock

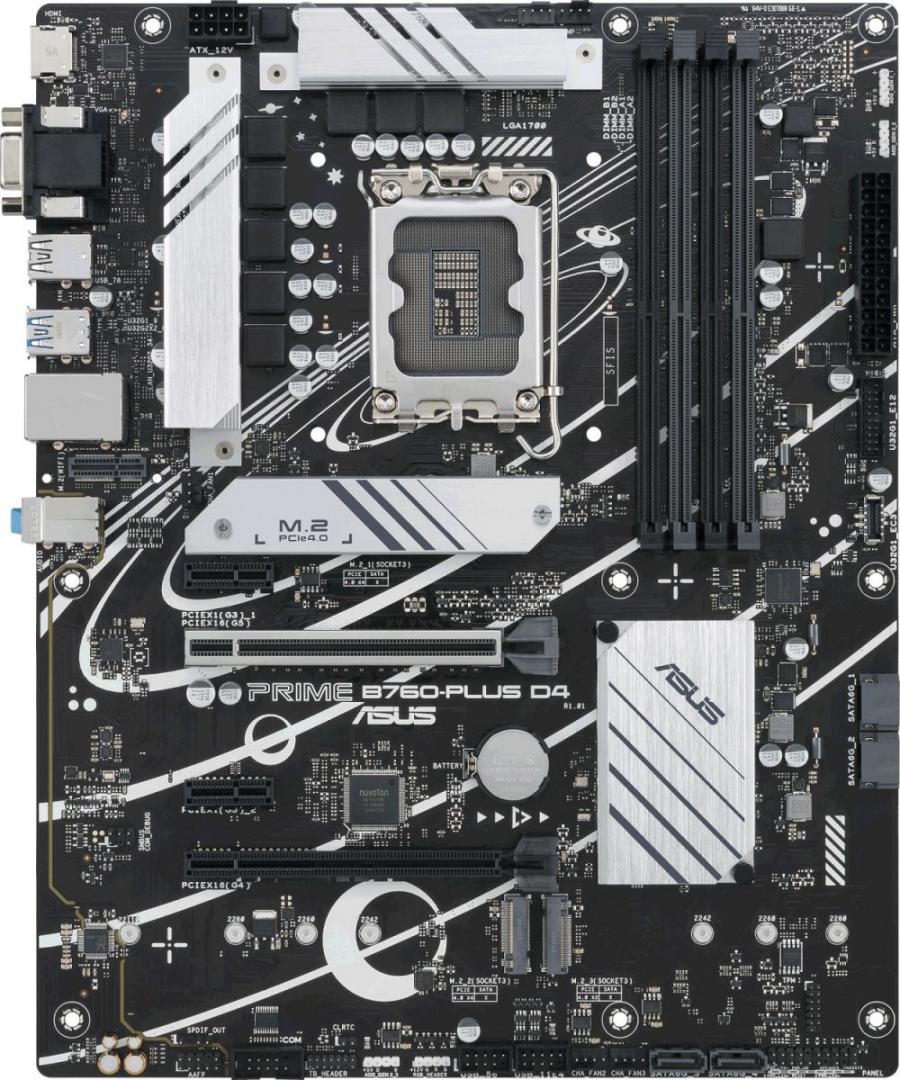

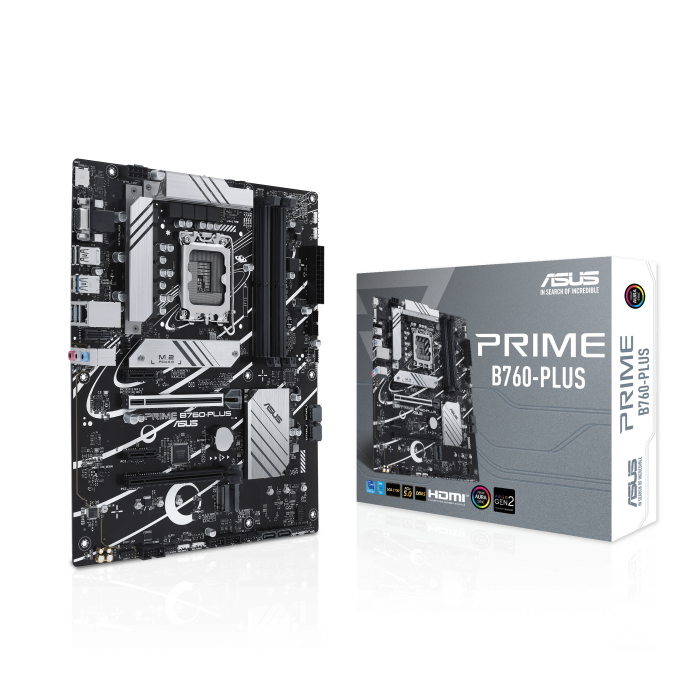

Placa de bază ASUS PRIME B760-PLUS LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus Prime B760-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x VGA, 2x PCIe x16, 2x PCIe x1, 3x M.2, 4x SATA 6Gbps, 2.5Gbps LAN, ATX

Specificație: Placa de bază ASUS PRIME B760-PLUS LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Cooling type	Passive
VGA (D-Sub) ports quantity	1
Maximum internal memory	192 GB
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B760
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard form factor	ATX
Motherboard chipset family	Intel
Number of M.2 (M) slots	3
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
S/PDIF out connector	Yes
Number of COM connectors	1
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Thunderbolt headers	1
Peripheral (Molex) power connectors (4-pin)	1
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of chassis fan connectors	3
Headphone outputs	1
Cables included	SATA
Width	305 mm
Depth	244 mm
Package height	53 mm
Package weight	1.2 kg
Power source type	ATX
Package width	328 mm
Weight	760 g
Package depth	266 mm
Height	36 mm
Producator	ASUS
Garantie	36
