Name: Placa de bază ASUS PRIME B650M-K AM5 - A.W.P.S Store
Brand: ASUS
SKU: PRIME B650M-K
Price: 713.87 RON
Availability: OutOfStock

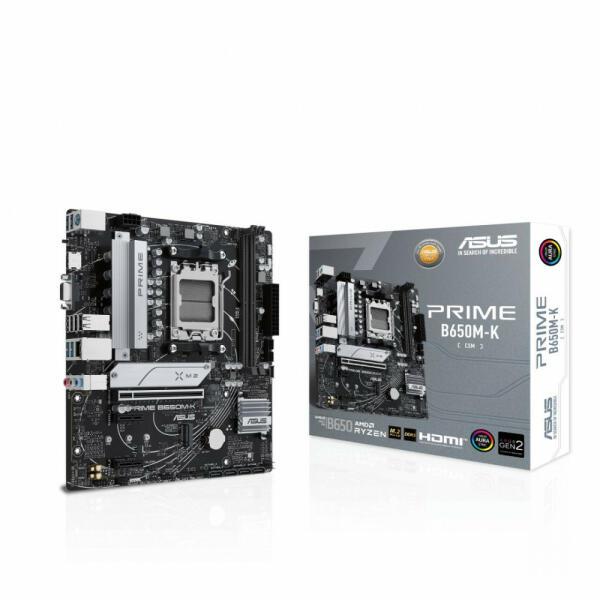

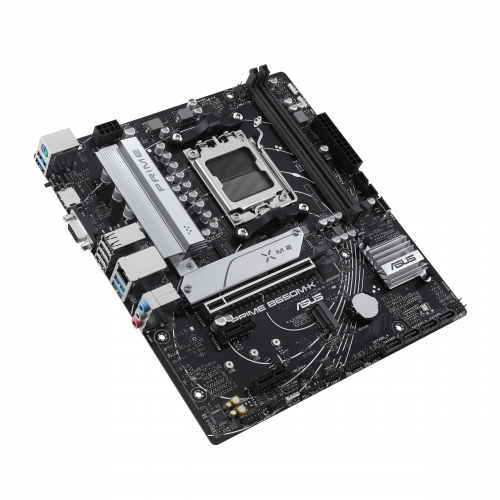

Placa de bază ASUS PRIME B650M-K AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus PRIME B650M-K AM5

Specificație: Placa de bază ASUS PRIME B650M-K AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
USB3	4-8
Onboard-CPU	Yes
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	96 GB
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
VGA (D-Sub) ports quantity	1
PCI Express x16 (Gen 4.x) slots	2
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B650
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
12V power connector	Yes
Number of storage drives supported	6
S/PDIF out connector	Yes
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Supported memory clock speeds	6400 MHz
Compatible processor series	AMD Ryzen 7000 Series
Motherboard chipset	AMD B650
PCI Express x1 (Gen 4.x) slots	2
Audio connector	Yes
MB-Format	ATX
RAM-Slots	4
PCI-Ex1	2
MB-Socket	AM5
PCI-Ex16	2
Microphone in	Yes
Headphone outputs	1
Cables included	SATA
Width	244 mm
Package width	260 mm
Package depth	270 mm
Package weight	1.07 kg
Package height	51.5 mm
Depth	221 mm
Producator	ASUS
Garantie	36
