Name: Placa de bază ASUS PRIME B650M-A AM5 - A.W.P.S Store
Brand: ASUS
SKU: PRIME B650M-A
Price: 804.83 RON
Availability: OutOfStock

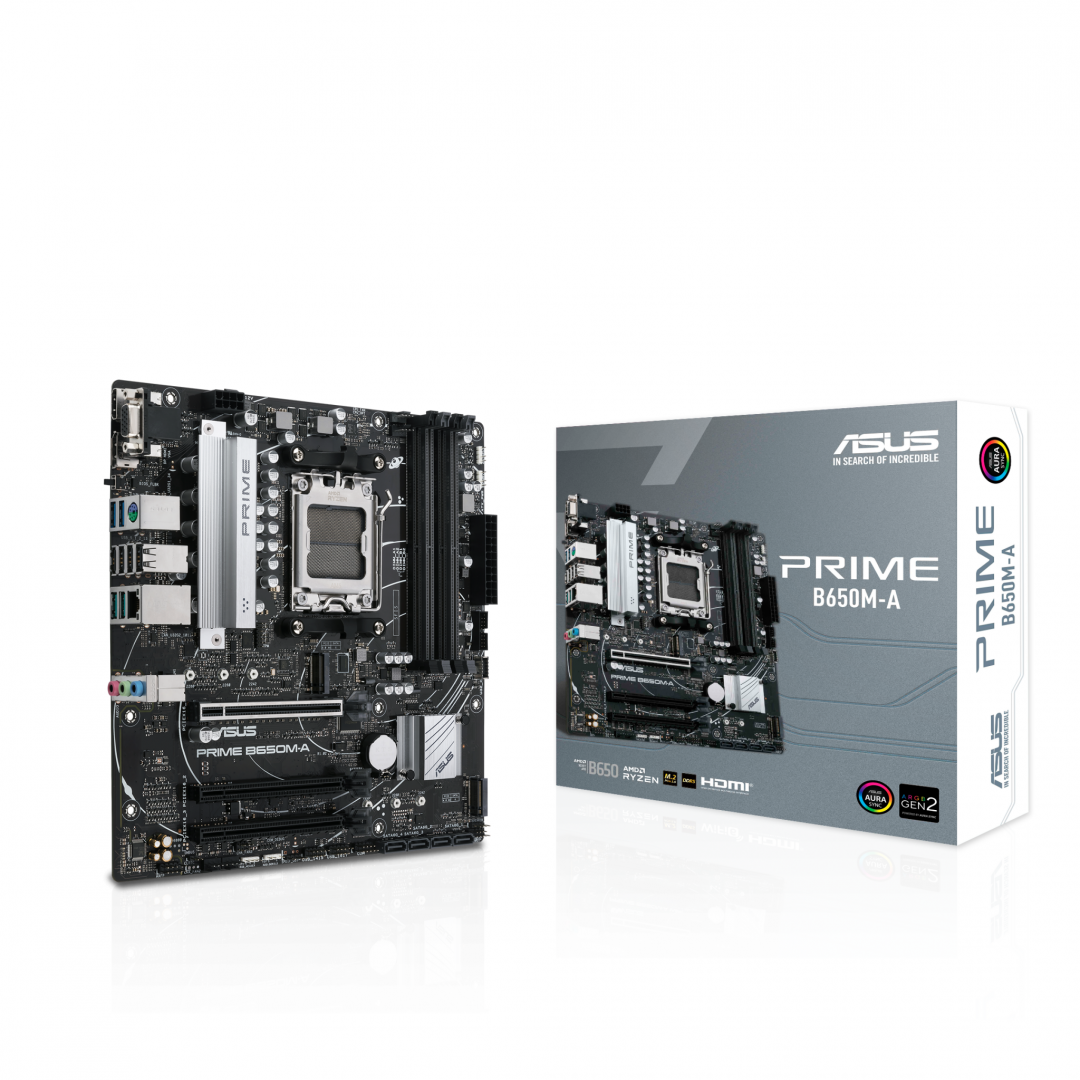

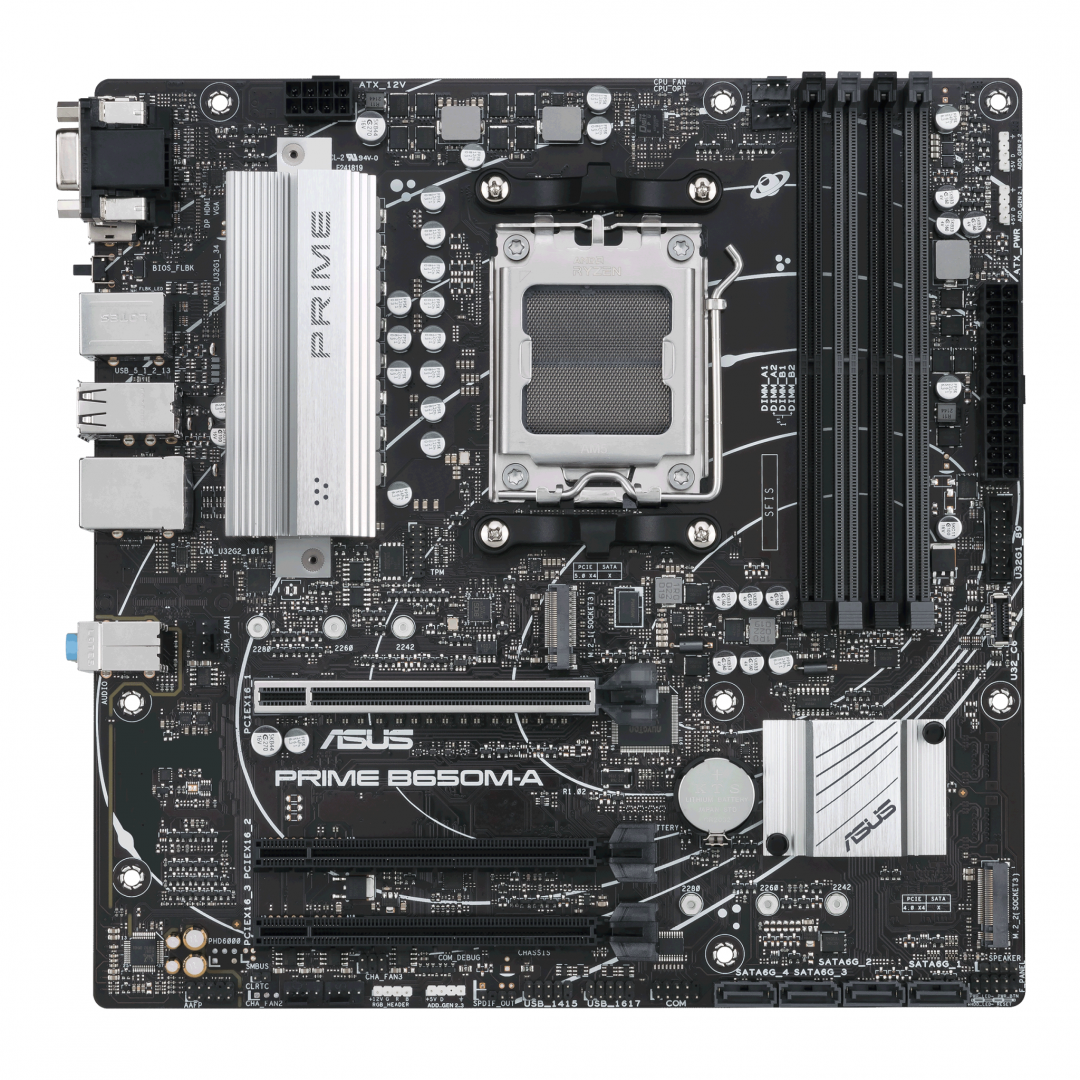

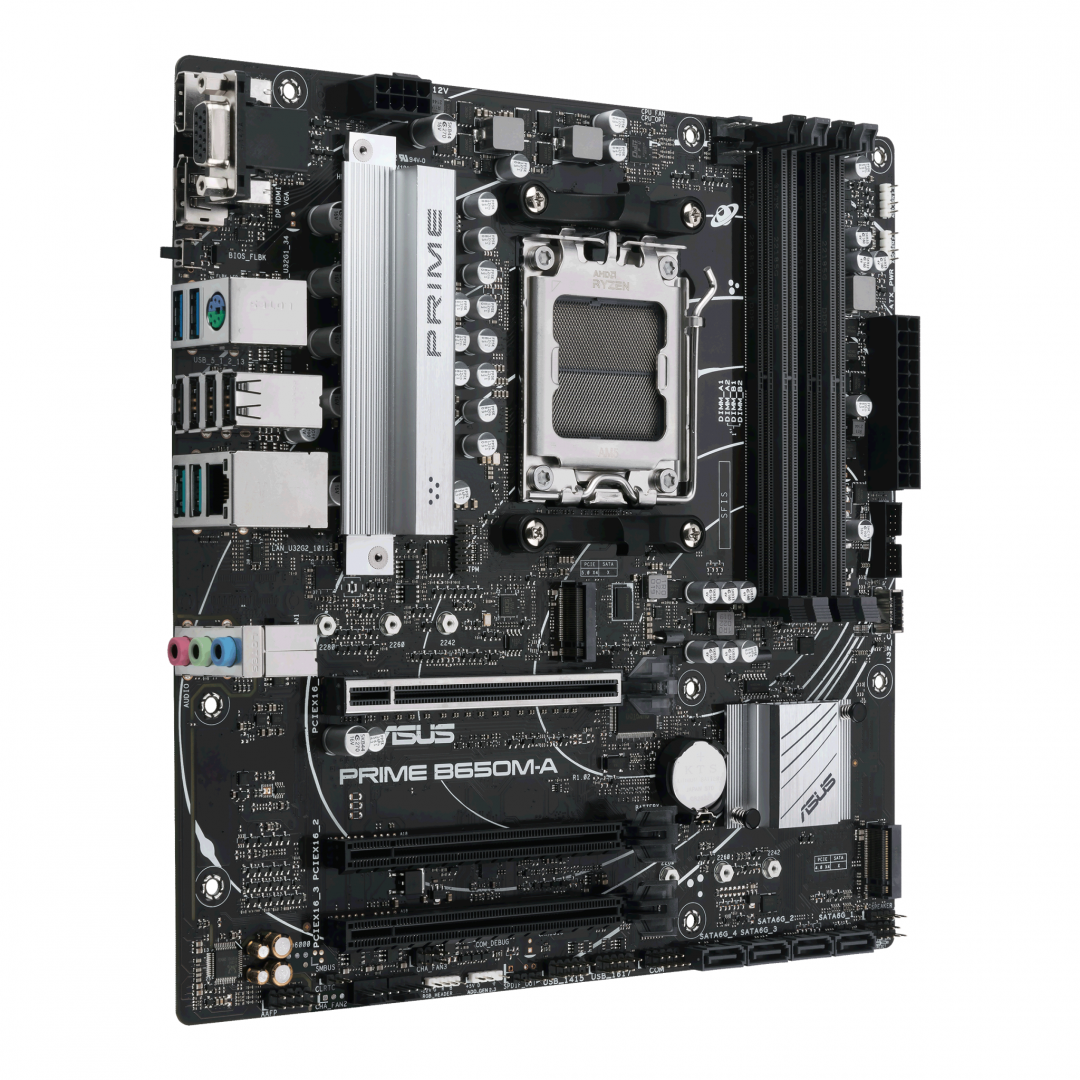

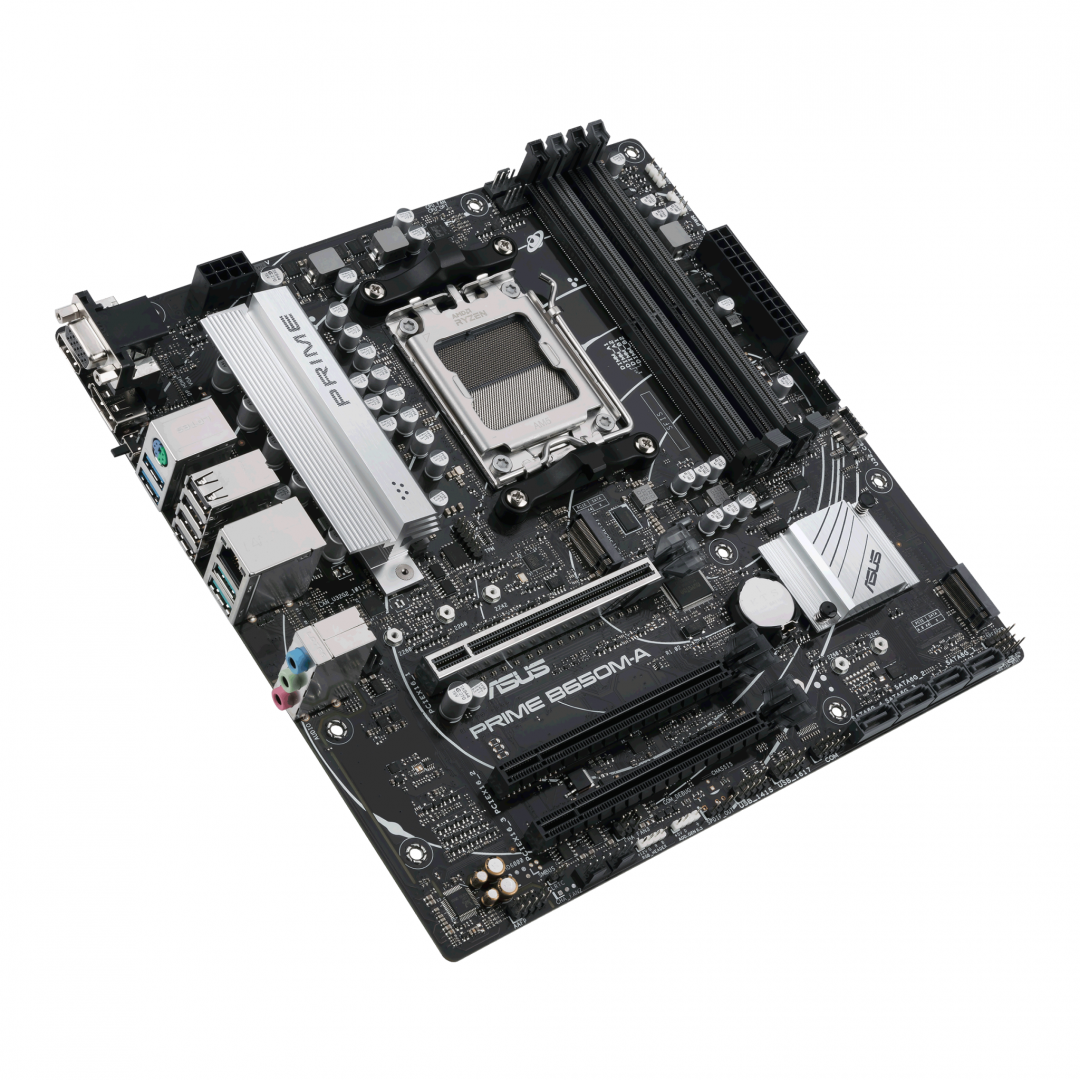

Placa de bază ASUS PRIME B650M-A AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus PRIME B650M-A AM5, 4x DIMM Slots, DDR5 5600MHz, PCIe Gen 4, 4x SATA 6Gb/s connectors, 2xM.2 Slot, 2.5GB LAN, Micro-ATX

Specificație: Placa de bază ASUS PRIME B650M-A AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Parallel processing technology support	Not supported
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B650
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
12V power connector	Yes
Clear CMOS button	Yes
S/PDIF out connector	Yes
Number of COM connectors	1
PCI Express x16 (Gen 4.x) slots	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Number of SATA III connectors	8
Number of chassis fan connectors	3
Number of storage drives supported	10
Motherboard chipset	AMD B650
Audio connector	Yes
Compatible processor series	AMD Ryzen™ 7
Microphone in	Yes
Headphone outputs	1
Cables included	SATA
Width	244 mm
Depth	244 mm
Package weight	1.32 kg
Package depth	265 mm
Package width	280 mm
Package height	71 mm
Producator	ASUS
Garantie	36
