Name: Placa de bază ASUS PRIME B650-PLUS AM5 - A.W.P.S Store
Brand: ASUS
SKU: PRIME B650-PLUS
Price: 975.00 RON
Availability: OutOfStock

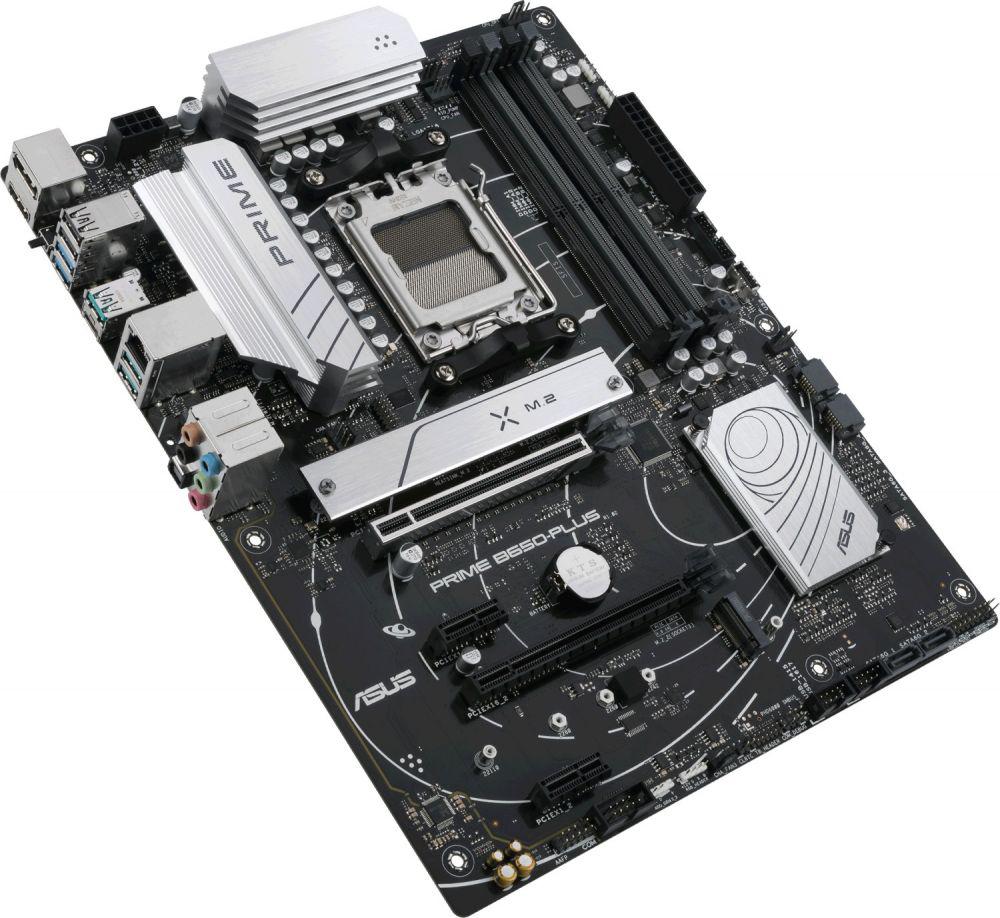

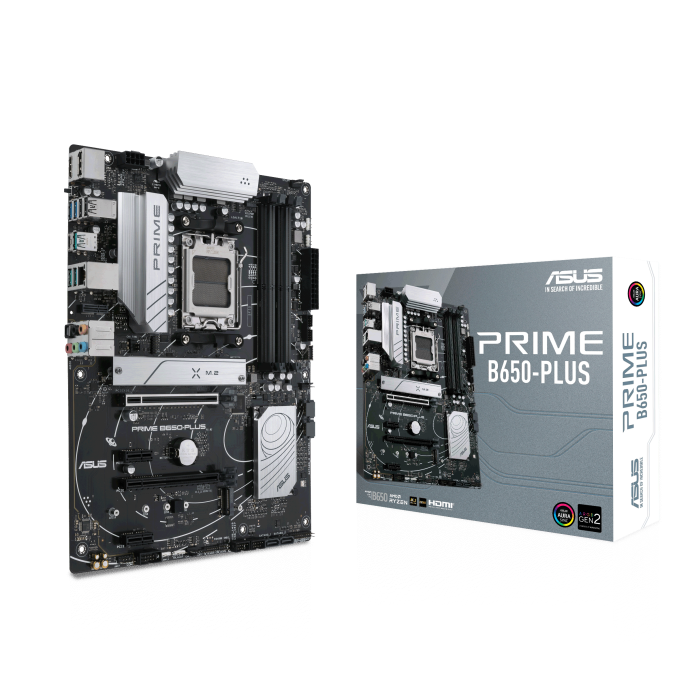

Placa de bază ASUS PRIME B650-PLUS AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus PRIME B650-PLUS AM5, 4x DDR5, 1x DP 1x HDMI, 3x PCIE x16 1x PCIE x1, 4x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de bază ASUS PRIME B650-PLUS AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Audio output channels	7.1 channels
Line-in	Yes
On-board graphics card	No
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
12V power connector	Yes
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Thunderbolt headers	1
Back-to-BIOS button	Yes
PCI slots	0
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Supported memory clock speeds	6400 MHz
Compatible processor series	AMD Ryzen 7000 Series
Number of M.2 (E) slots	1
Number of chassis fan connectors	3
Motherboard chipset	AMD B650
PCI Express x4 (Gen 1.x) slots	2
Microphone in	Yes
Headphone outputs	1
Product colour	Multicolour
Cables included	SATA
Width	305 mm
Depth	244 mm
Package height	68 mm
Power source type	ATX
Package weight	1.35 kg
Package depth	373 mm
Package width	338 mm
Producator	ASUS
Garantie	36
