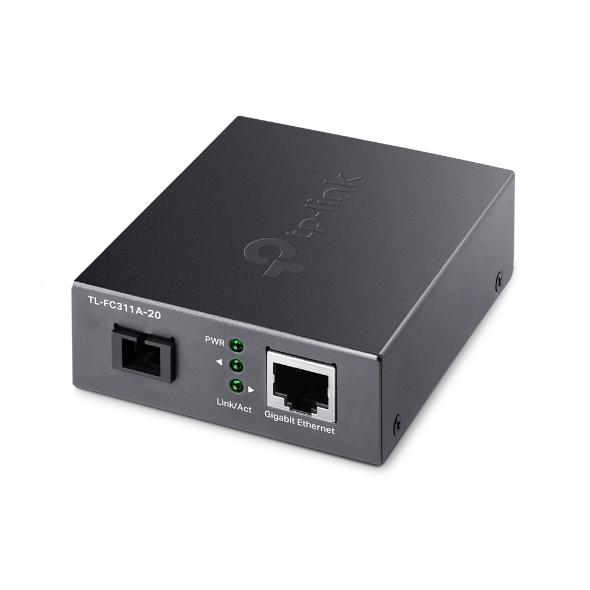

"10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

„10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter PORT: 1× Gigabit SC Port, 1× Gigabit RJ45 Port (Auto MDI/MDIX) SPEC: Full-duplex, Tx:1550 nm, Rx:1310 nm, Up to 20 km, Chassis TL-FC1420 rack-mountable”

Specificație: "10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional

Switch-CM-Type	SFP
Storage relative humidity (H-H)	5 – 90%
Connectivity technology	Wired
Quick installation guide	Yes
Ethernet interface type	Gigabit Ethernet
Internal	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate (2.4 GHz)	1000 Mbit/s
Output voltage	5 V
Output current	0.6 A
Fiber ports quantity	1
Maximum transfer distance	20000 m
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Single-mode
Fiber optic connector	SC
Fiber cable diameters supported (core/cladding)	9/125 µm
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transfer rate	1000 Mbit/s
DC-in jack	Yes
Height	27 mm
Harmonized System (HS) code	85176990
Operating temperature (T-T)	0 – 50 °C
Package width	165 mm
Package height	65 mm
LED indicators	Activity, Link, Power
Package depth	204 mm
Width	94.5 mm
Depth	73 mm
Package weight	560 g
Producator	TP-LINK
Garantie	60
