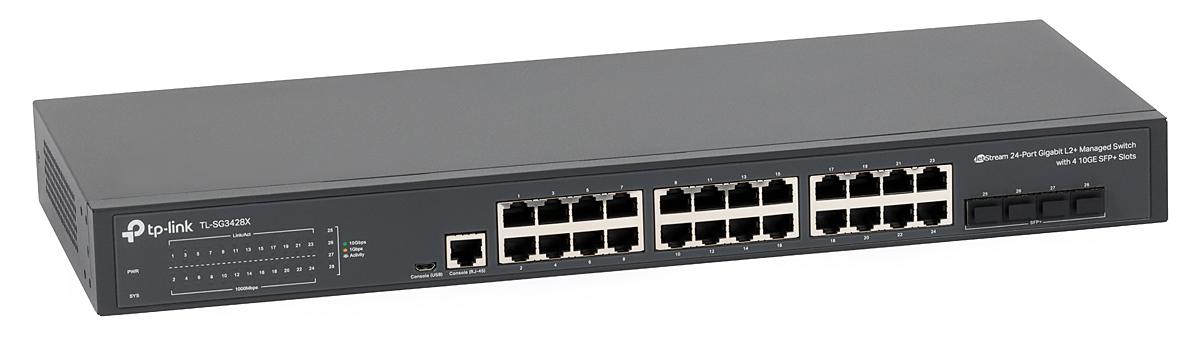

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

„JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6 „

Specificație: "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+

LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Number of fans	0 fan(s)
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Static route	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
10G support	Yes
Port mirroring	Yes
Form factor	1U
Policy-based routing	Yes
Access Control List (ACL)	Yes
Power over Ethernet (PoE)	No
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Gigabit Ethernet (copper) ports quantity	24
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Jumbo frames	9000
Active link detection	Yes
Fanless	Yes
Number of VLANs	4000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
SSH/SSL support	Yes
Loop protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
GARP VLAN Registration Protocol (GVRP)	Yes
ARP inspection	Yes
BPDU filtering/protection	Yes
Store-and-forward	Yes
Power connector	AC-in jack
Packet buffer memory	12 MB
Head-of-line (HOL) blocking	Yes
Number of static routes	48
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding	Yes
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMPv1/v2c/v3, SNTP
Authentication type	AAA, RADIUS, TACACS+
IPv4 routes	48
IPv6 routes	48
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
MIB support	Yes
Forwarding rate	95.23 Mpps
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Heat dissipation	80.52 BTU/h
Porturi RJ 45	24-28
Viteza Transfer	Gigabit
Porturi SFP	3-4
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Management	Da
PoE	Nu
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Depth	180 mm
Operating temperature (T-T)	0 – 45 °C
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Power source	AC
Cables included	LAN (RJ-45)
Cloud-managed	Yes
Power consumption (max)	23.6 W
Producator	TP-LINK
Garantie	24
