Name: Placa de bază MSI PRO X870E-P WIFI AM5 - A.W.P.S Store
Brand: MSI
SKU: PRO X870E-P WIFI
Price: 1260.08 RON
Availability: InStock

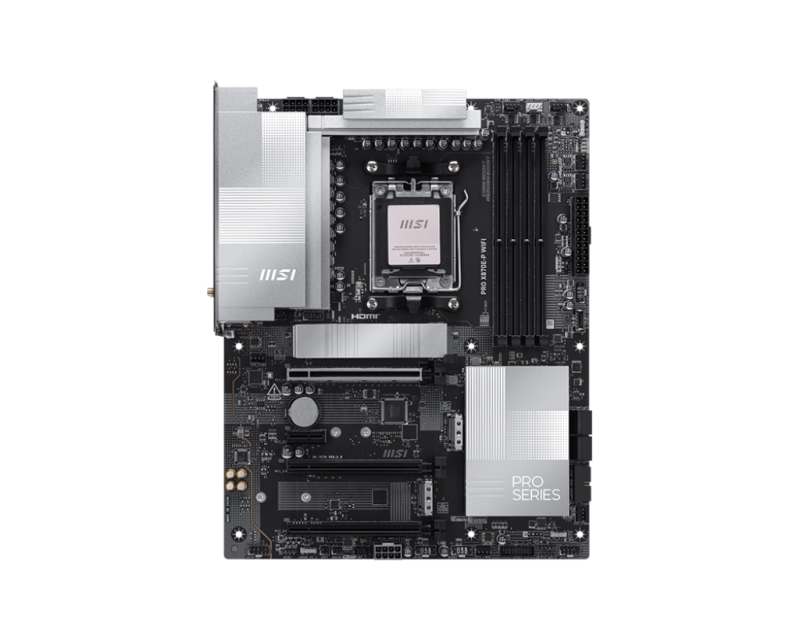

Placa de bază MSI PRO X870E-P WIFI AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placă de bază MSI PRO X870E-P WIFI, ATX, socket AM5, chipset AMD X870E, suport DDR5 192 GB, PCIe 5.0 x16, sloturi M.2 Gen5/Gen4, WiFi 7 și LAN 2.5 Gbps.

Specificație: Placa de bază MSI PRO X870E-P WIFI AM5

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
RAID levels	0, 1
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB4 Gen 3x2 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
DisplayPorts quantity	2
On-board graphics card	No
Supported storage drive types	HDD & SSD
USB4 Gen 2x2 ports quantity	1
PCI Express x1 slots	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Model Chipset	X870E
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64
Number of M.2 (M) slots	3
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
Total number of SATA connectors	4
Ethernet interface type	5 Gigabit Ethernet
ECC сompatibility	Non-ECC
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
PCI Express x16 slots	3
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
1st M.2 largest key size	2280
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
PC health monitoring	CPU, Fan, Temperature, Voltage
Number of storage drives supported	4
Number of HDDs supported	7
Motherboard chipset	AMD X870E
USB 2.0 connectors	6
Supported memory clock speeds	4800,5600,8200 MHz
MB-Format	ATX
RAM-Slots	4
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	4
2nd M.2 largest key size	2580
Bluetooth	Yes
Product colour	Black
Bluetooth version	5.4
Ethernet LAN (RJ-45) ports	1
Width	243.8 mm
Depth	304.8 mm
Producator	MSI
Garantie	36
