Name: Placa de bază MSI MAG B550 TOMAHAWK AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: H810M S2H
Price: 603.71 RON
Availability: InStock

Placa de bază MSI MAG B550 TOMAHAWK AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

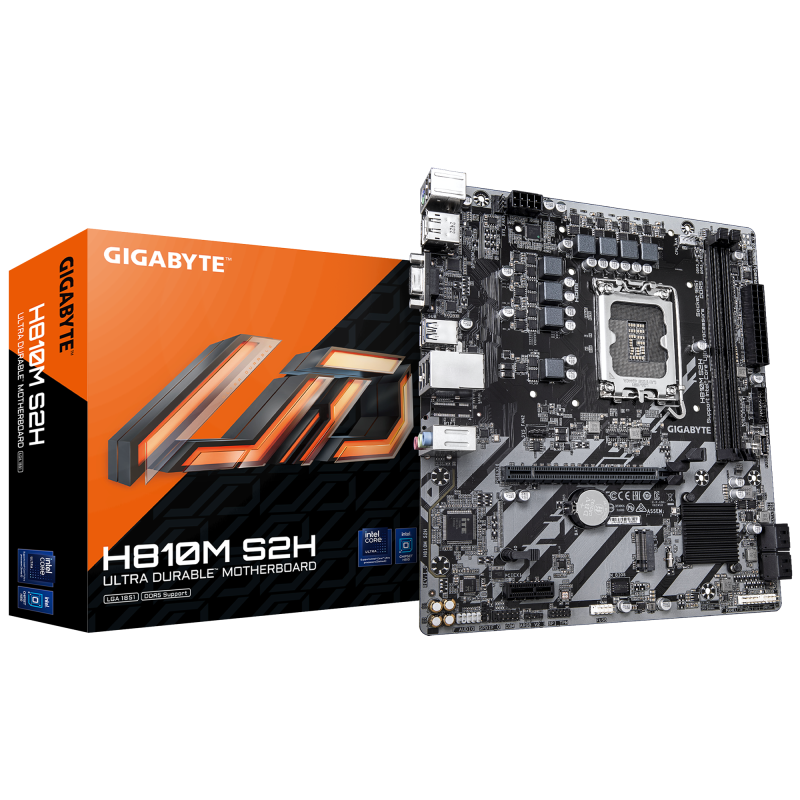

Placa de Baza GIGABYTE H810M S2H LGA1851, 2x DDR5, 1x HDMI 1x DP 1x D- Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază MSI MAG B550 TOMAHAWK AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
Cooling type	Passive
Number of M.2 (M) slots	1
USB 2.0 ports quantity	5
VGA (D-Sub) ports quantity	1
HDCP	Yes
Screws included	Yes
DisplayPort version	2.1
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H810
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
S/PDIF out connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Compatible processor series	Intel Core Ultra (Series 2)
1st M.2 largest key size	2280
USB 2.0 connectors	1
Number of storage drives supported	5
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
Motherboard chipset	Intel H810
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	2
MB-Format	micro-ATX
RAM-Slots	2
USB Type-C	N/A
MB-Socket	LGA1851
Supported memory clock speeds	5600,6400 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Depth	215 mm
Height	35 mm
Width	244 mm
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Weight	790 g
Package weight	872 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
