Name: Placa de bază Gigabyte Z890 UD WIFI6E LGA1851 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z890 UD WIFI6E
Price: 1072.11 RON
Availability: InStock

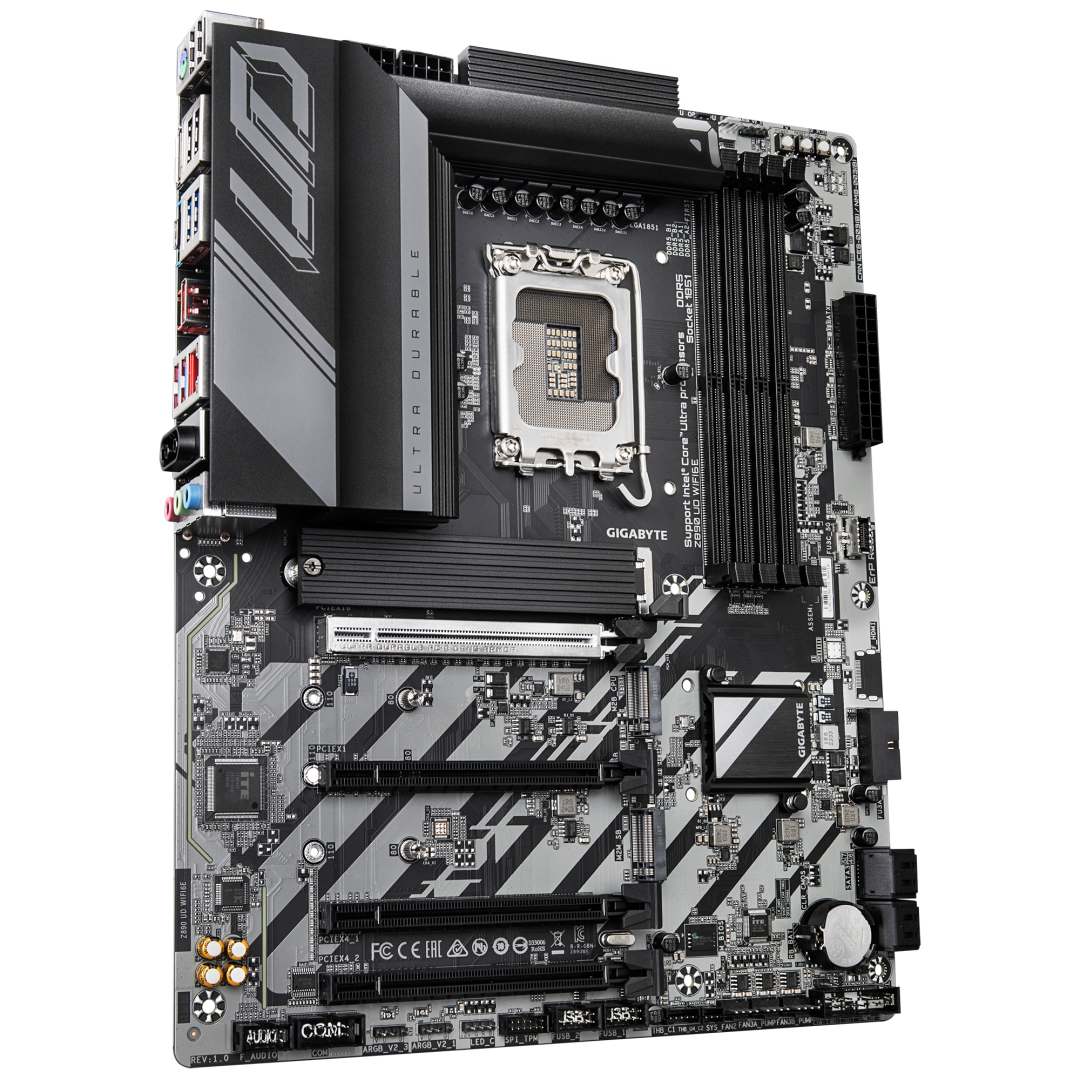

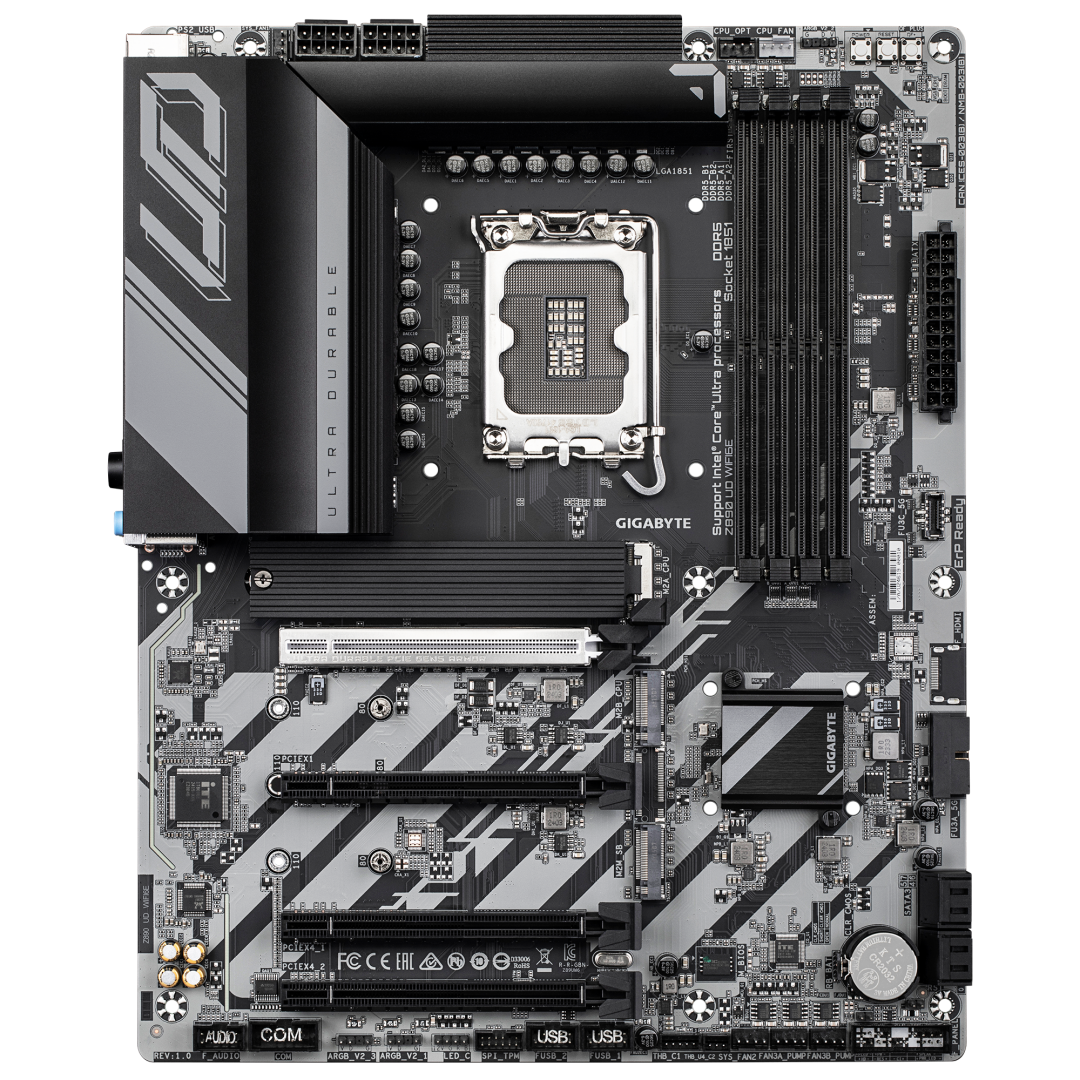

Placa de bază Gigabyte Z890 UD WIFI6E LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE Z890 UD WIFI6E LGA1851, 4x DDR5, 1x USB4 1x DP, 1x PCIE 5.0 x16 3x PCIE 4.0 x16, 3x M.2, 4x SATA III, ATX

Specificație: Placa de bază Gigabyte Z890 UD WIFI6E LGA1851

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Thunderbolt ports quantity	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 (Gen 5.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	Z890
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
Number of M.2 (M) slots	3
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Total number of SATA connectors	4
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
PCI Express x16 (Gen 4.x) slots	3
Compatible processor series	Intel Core Ultra (Series 2)
Motherboard chipset	Intel Z890
PC health monitoring	Fan, Temperature, Voltage
Maximum internal memory supported by processor	256 GB
Supported memory clock speeds	8800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Number of storage drives supported	4
Number of HDDs supported	7
Microphone in	Yes
Bluetooth version	5.3
Height	35 mm
Width	305 mm
Depth	244 mm
Weight	1.78 kg
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.02 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
