Name: Placa de bază Gigabyte Z890 AERO D LGA1851 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z890 AERO D
Price: 4315.42 RON
Availability: OutOfStock

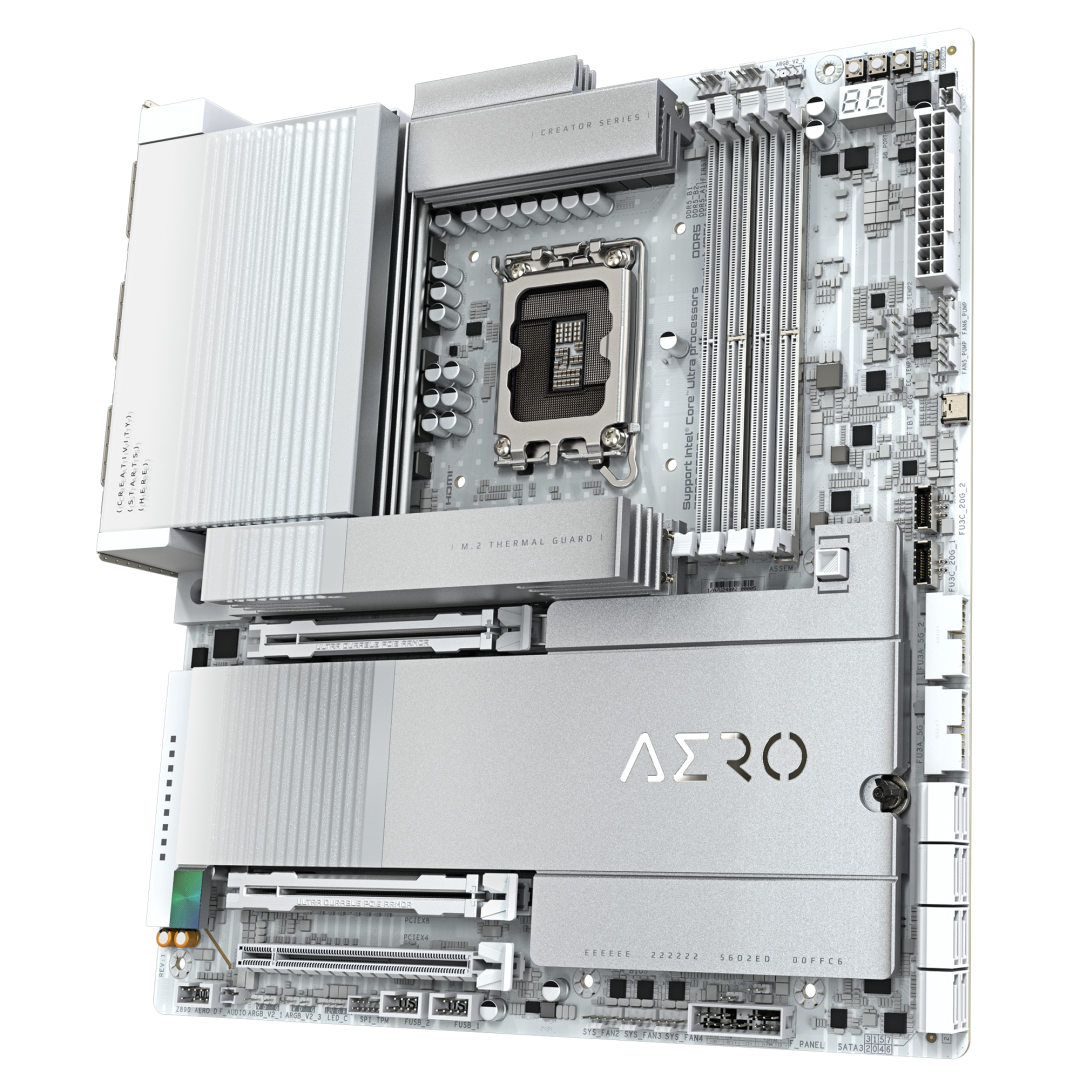

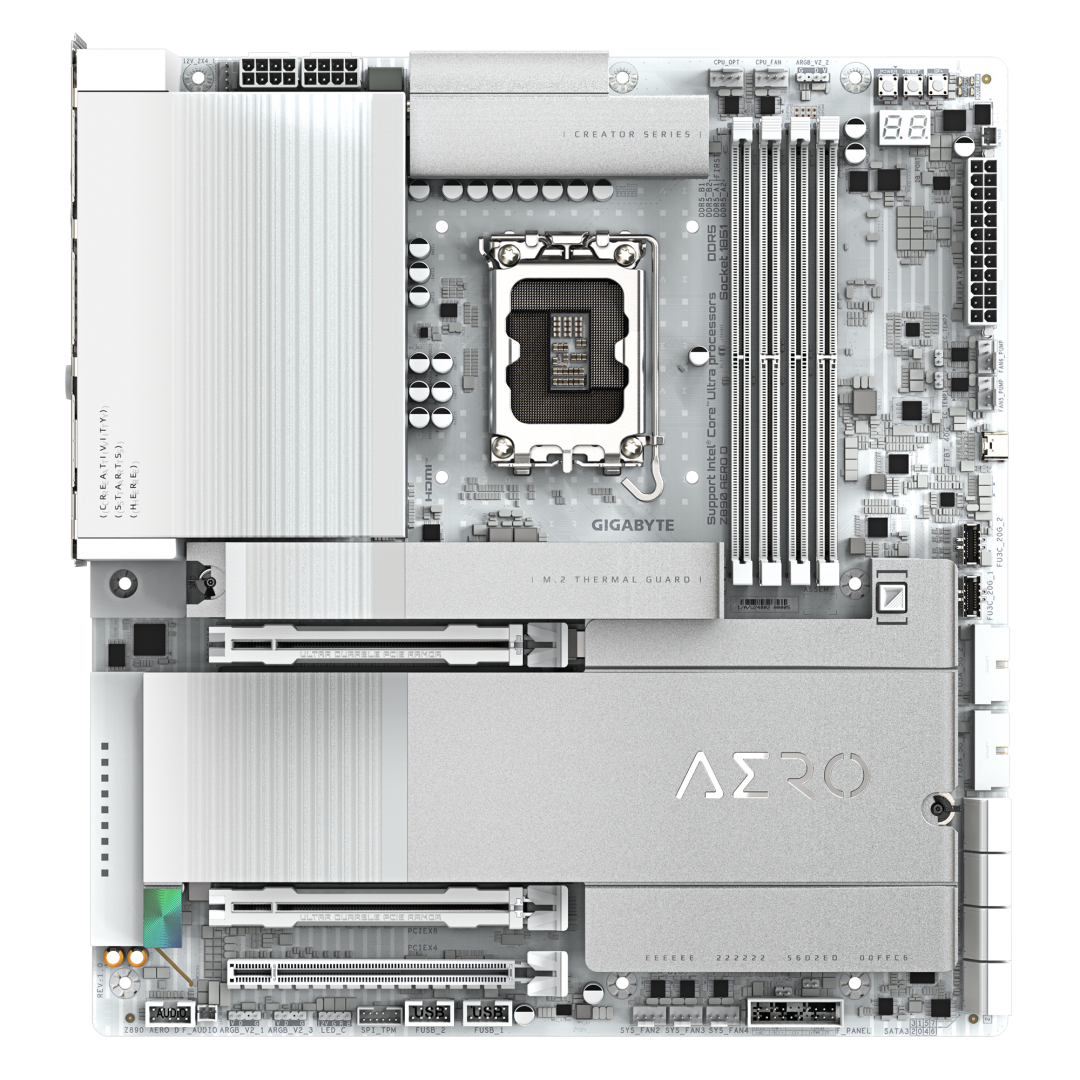

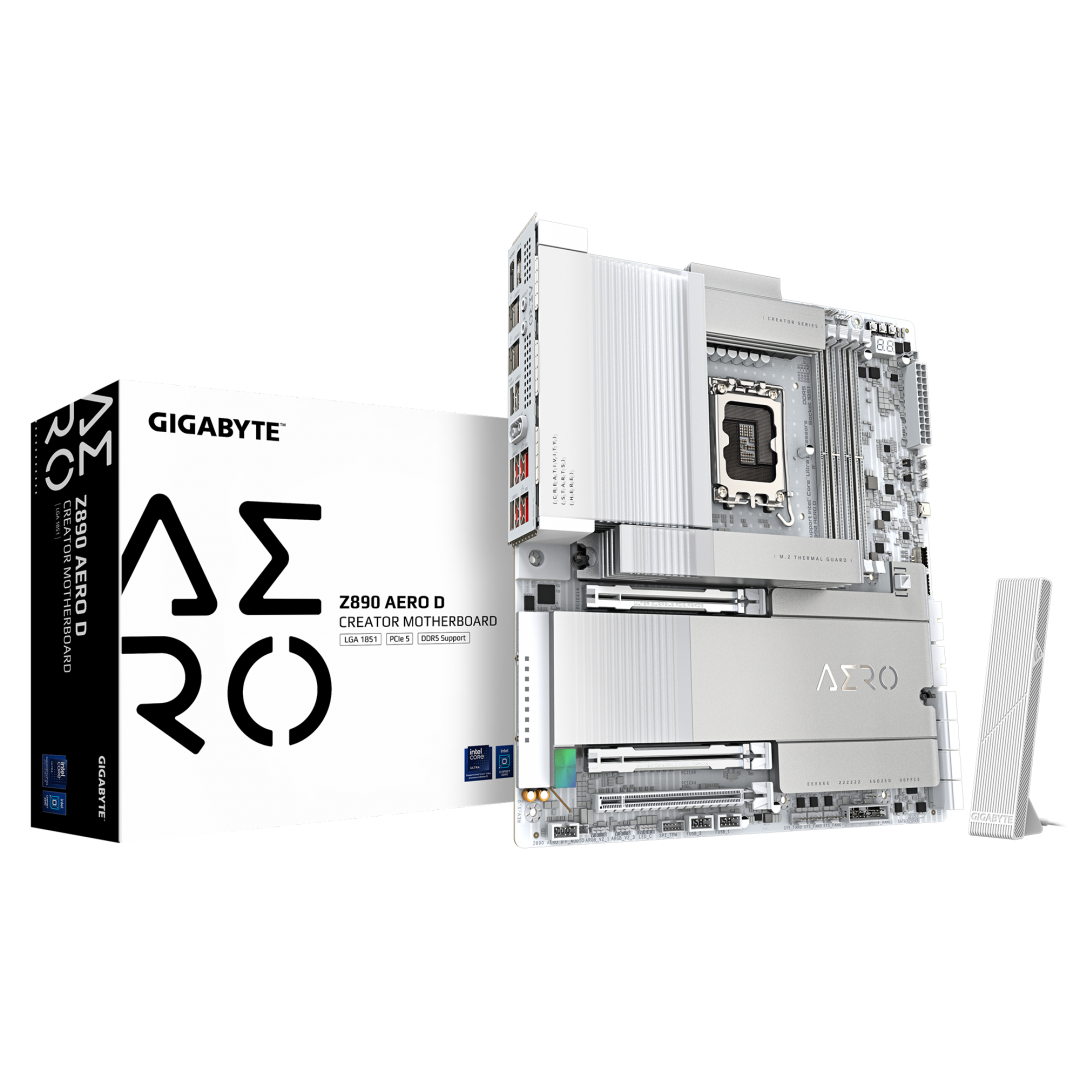

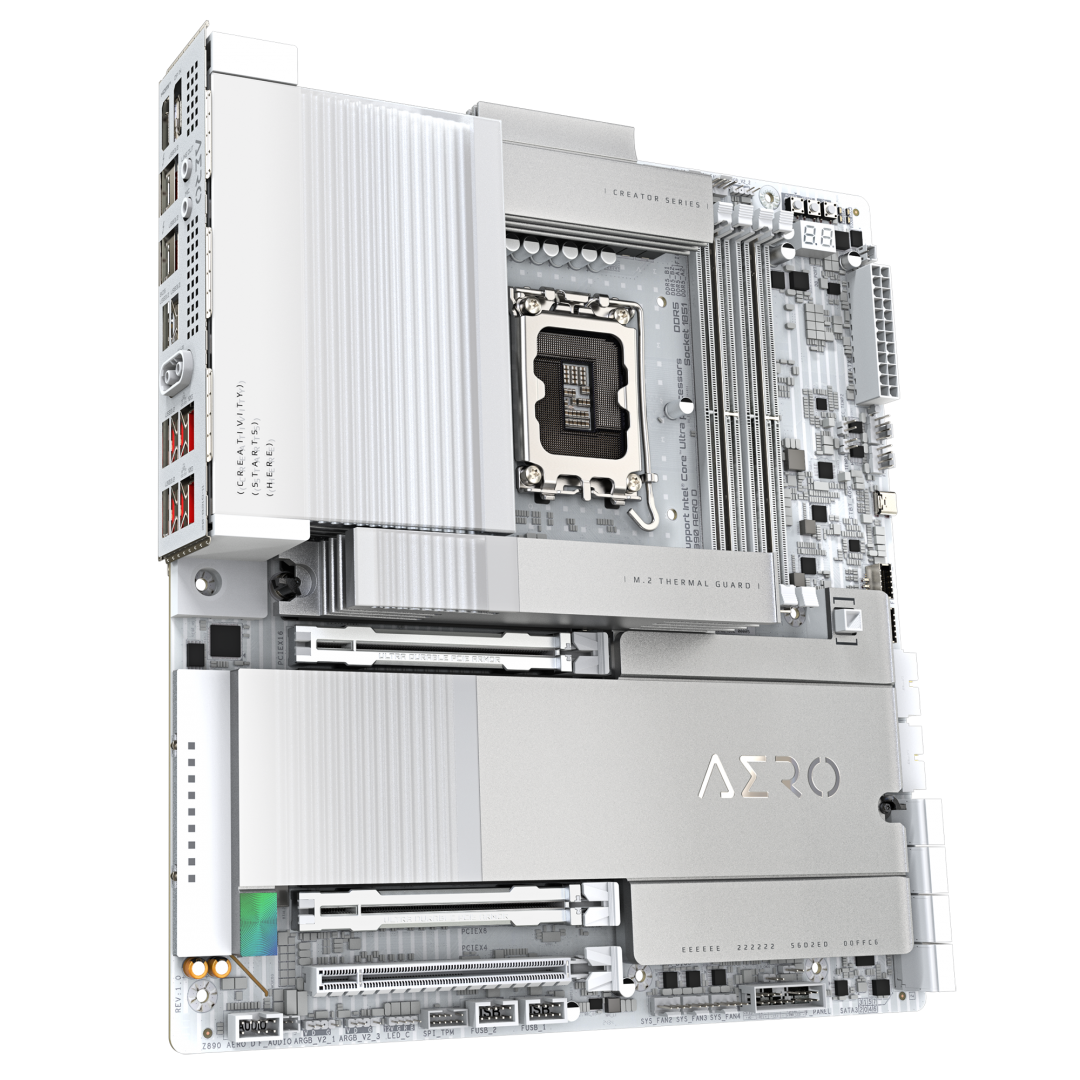

Placa de bază Gigabyte Z890 AERO D LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

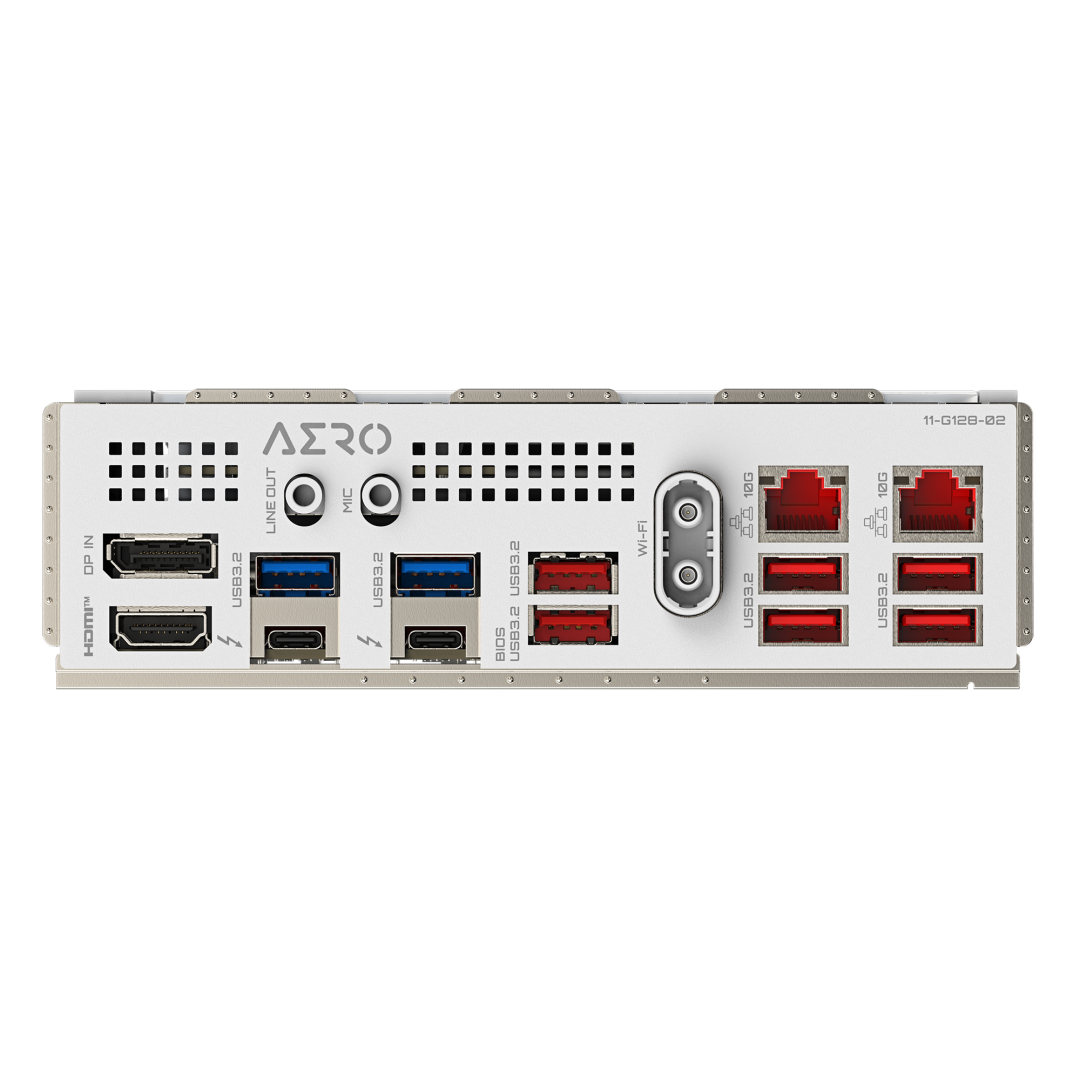

Placa de Baza GIGABYTE Z890 AERO D LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, E-ATX

Specificație: Placa de bază Gigabyte Z890 AERO D LGA1851

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Thunderbolt ports quantity	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
Line-in	Yes
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	Z890
Gaming	Nu
Format:	E-ATX
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	2.0
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Da
Sloturi M.2	4
RJ-45 LAN	2
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Clear CMOS button	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Compatible processor series	Intel Core Ultra (Series 2)
Thunderbolt headers	1
Motherboard chipset	Intel Z890
Number of M.2 (M) slots	4
Number of chassis fan connectors	6
Number of SATA III connectors	8
PCI Express x16 (Gen 5.x) slots	2
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
Number of HDDs supported	8
2nd M.2 largest key size	25110
Motherboard form factor	Extended ATX
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Marvell AQtion AQC113C
USB 3.2 Gen 2x2 connectors	2
Supported memory clock speeds	9500 MHz
Number of storage drives supported	12
Audio output channels	2.0 channels
Audio Chip	ESS ES9260
PC health monitoring	Fan, Noise, Temperature, Voltage
Headphone outputs	1
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Product colour	White
Ethernet LAN (RJ-45) ports	2
Height	35 mm
Width	305 mm
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	400 mm
Package height	430 mm
Package weight	4 kg
Depth	285 mm
Weight	3.42 kg
Package depth	33.5 mm
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
