Name: Placa de bază Gigabyte Z790 AORUS PRO X LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z790 AORUS PRO X
Price: 2223.00 RON
Availability: OutOfStock

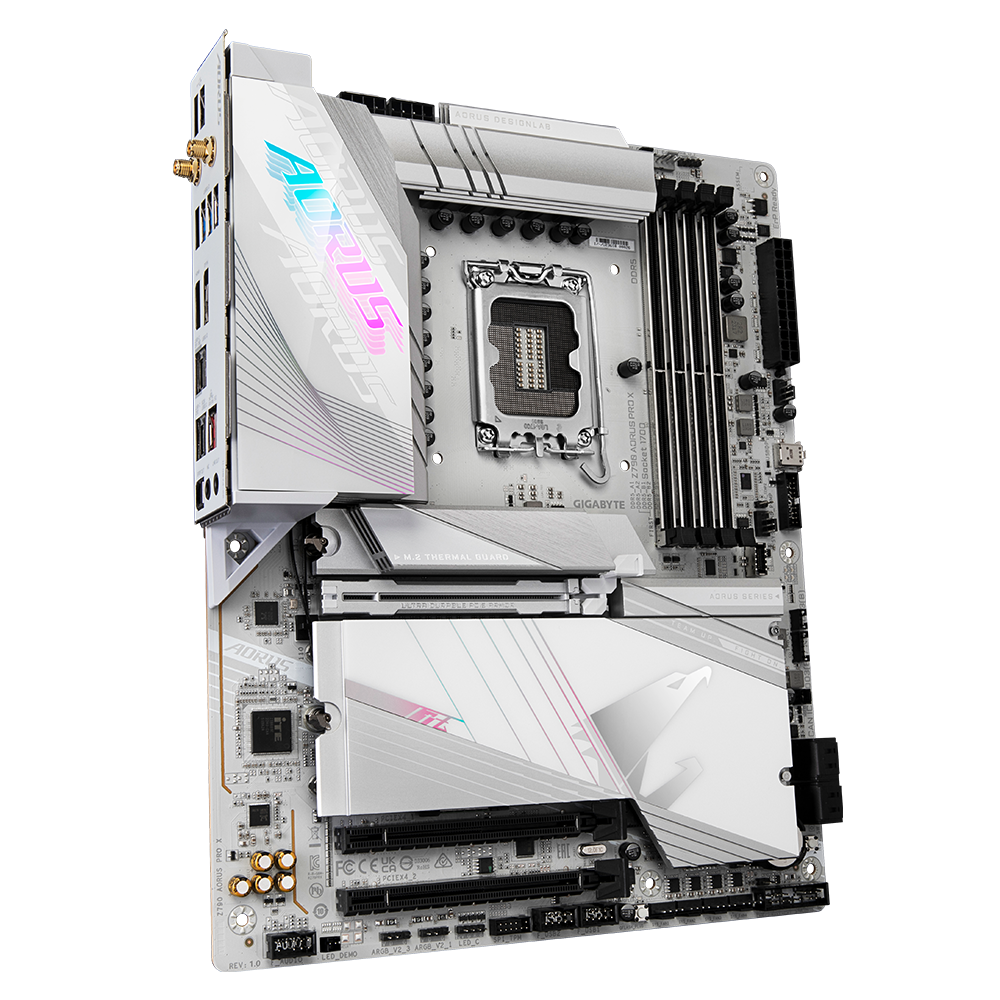

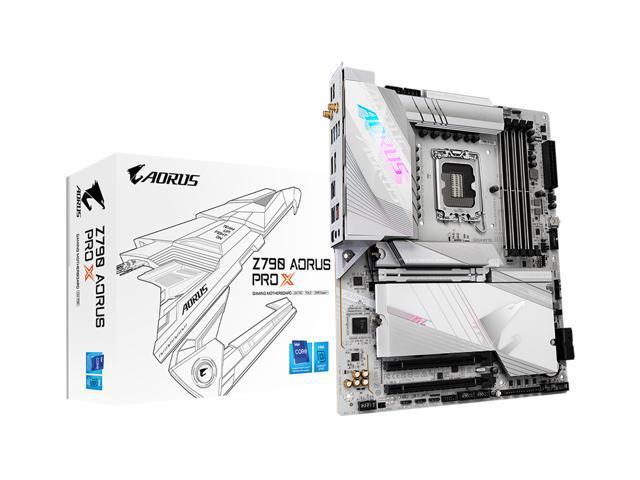

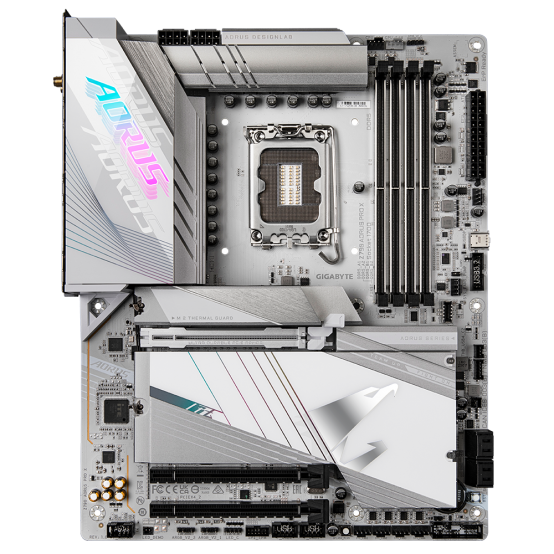

Placa de bază Gigabyte Z790 AORUS PRO X LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza GIGABYTE Z790 AORUS PRO X LGA1700, 4xDDR5, 3x PCIE x16, 5x M.2, 4x SATA 6gb/s

Specificație: Placa de bază Gigabyte Z790 AORUS PRO X LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Thunderbolt ports quantity	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
HDMI version	2.0
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
Maximum internal memory	192 GB
HDCP	Yes
DisplayPort version	1.2
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	Z790
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	5
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Supported memory clock speeds	8266 MHz
Number of storage drives supported	9
Maximum resolution	4096 x 2304 pixels
Discrete graphics support	Yes
USB 3.2 Gen 2x2 connectors	1
Number of EATX power connectors	2
Thunderbolt headers	2
12V power connector	Yes
Number of M.2 (M) slots	5
Clear CMOS button	Yes
Motherboard chipset	Intel Z790
Number of chassis fan connectors	6
Audio Chip	Realtek ALC1220-VB
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
LAN controller	Realtek RTL8126
Bundled software	Norton Internet Security LAN bandwidth management software
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Product colour	White
Height	35 mm
Cables included	SATA
Width	305 mm
Depth	244 mm
Country of origin	Taiwan
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.59 kg
Producator	GIGABYTE
Garantie	36
