Name: Placa de bază Gigabyte Z790 AORUS MASTER LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z790 AORUS MASTER
Price: 2938.00 RON
Availability: OutOfStock

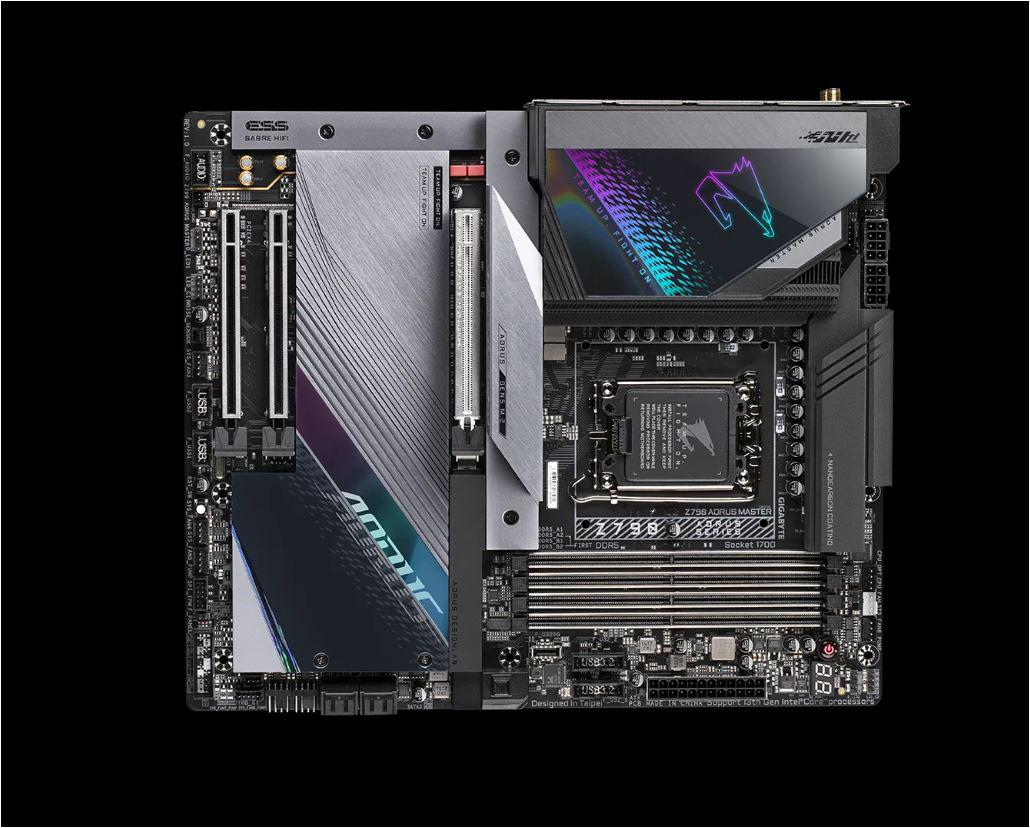

Placa de bază Gigabyte Z790 AORUS MASTER LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte Z790 AORUS MASTER LGA 1700, Z790, PCIe Gen 5, EATX, 4x DIMM slots, DDR5 7950MHz(OC), 5 x M.2 , 4 x SATA, 10Gb LAN, WIFI 6E, DisplayPort, 11x USB, Type-C

Specificație: Placa de bază Gigabyte Z790 AORUS MASTER LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
USB 3.2 Gen 2x2 Type-C ports quantity	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Supported storage drive types	HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
S/PDIF out port	Yes
Maximum internal memory	192 GB
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Parallel processing technology support	CrossFire
Model Chipset	Z790
Gaming	Nu
Format:	E-ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	5
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Number of storage drives supported	9
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
Thunderbolt headers	2
12V power connector	Yes
Number of M.2 (M) slots	5
Clear CMOS button	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Motherboard chipset	Intel Z790
PCI Express x16 slots	3
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Motherboard form factor	Extended ATX
Audio Chip	Realtek ALC1220-VB
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Supported memory clock speeds	8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Marvell AQtion AQC113C
WLAN controller model	Killer Wi-Fi 6E AX1690
Microphone in	Yes
Bluetooth version	5.3
Height	35 mm
Cables included	SATA
Width	305 mm
Country of origin	Taiwan
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package height	80 mm
Headphone outputs	2
Package width	345 mm
Package depth	294 mm
Package weight	3.46 kg
Depth	260 mm
Producator	GIGABYTE
Garantie	36
