Name: Placa de bază Gigabyte Z790 AORUS ELITE AX DDR4 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z790 A ELITE AX D4
Price: 1337.05 RON
Availability: OutOfStock

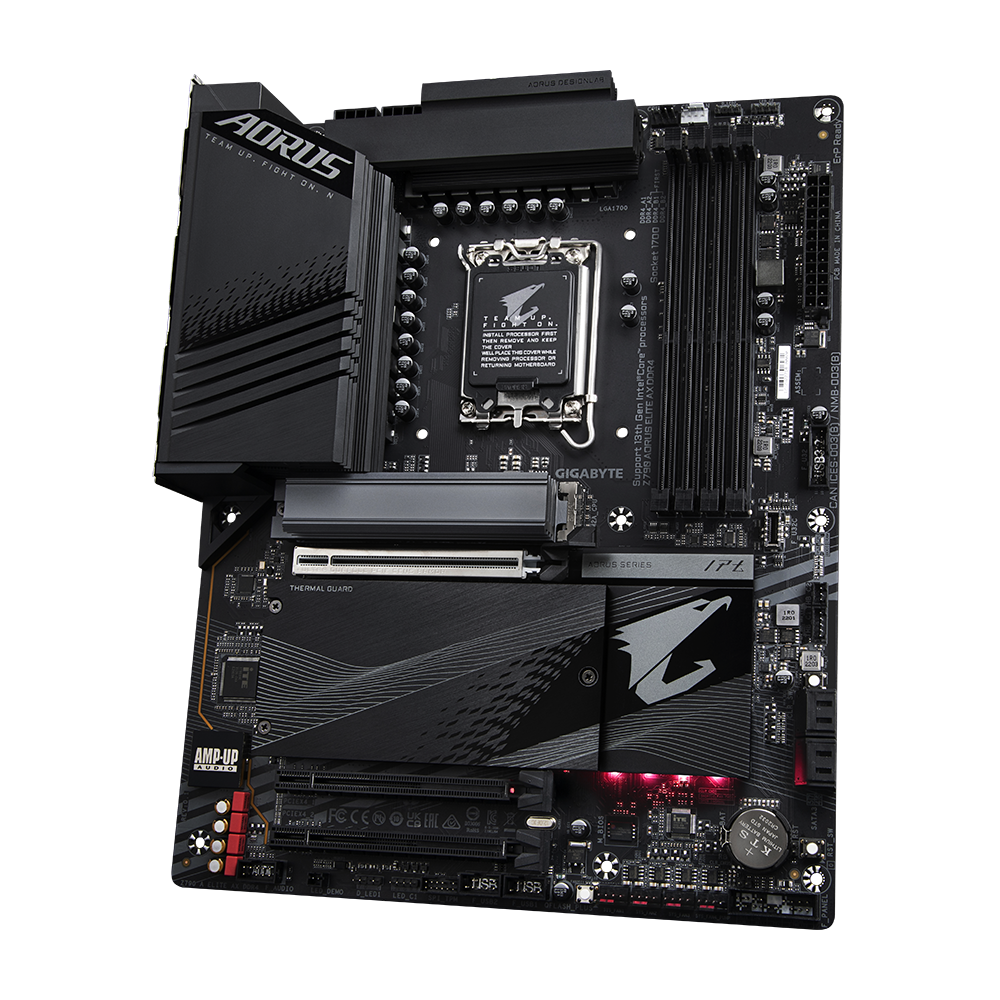

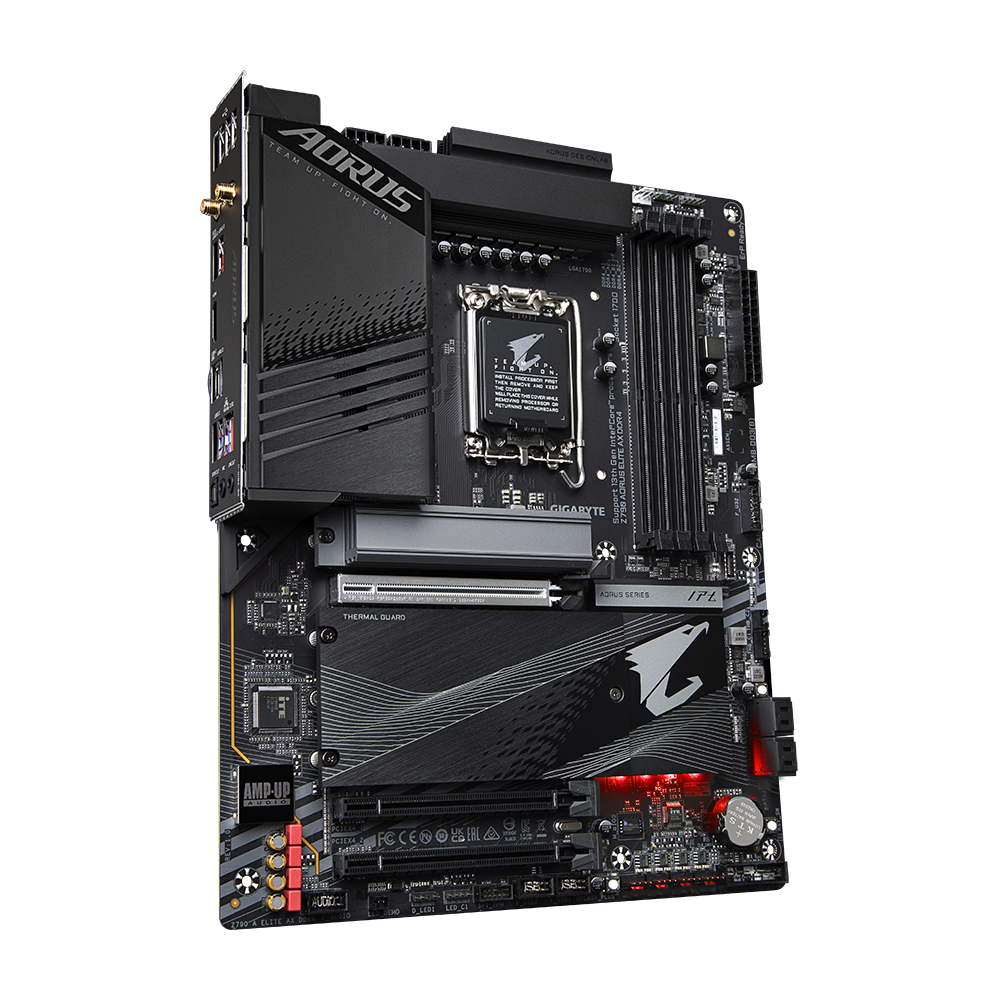

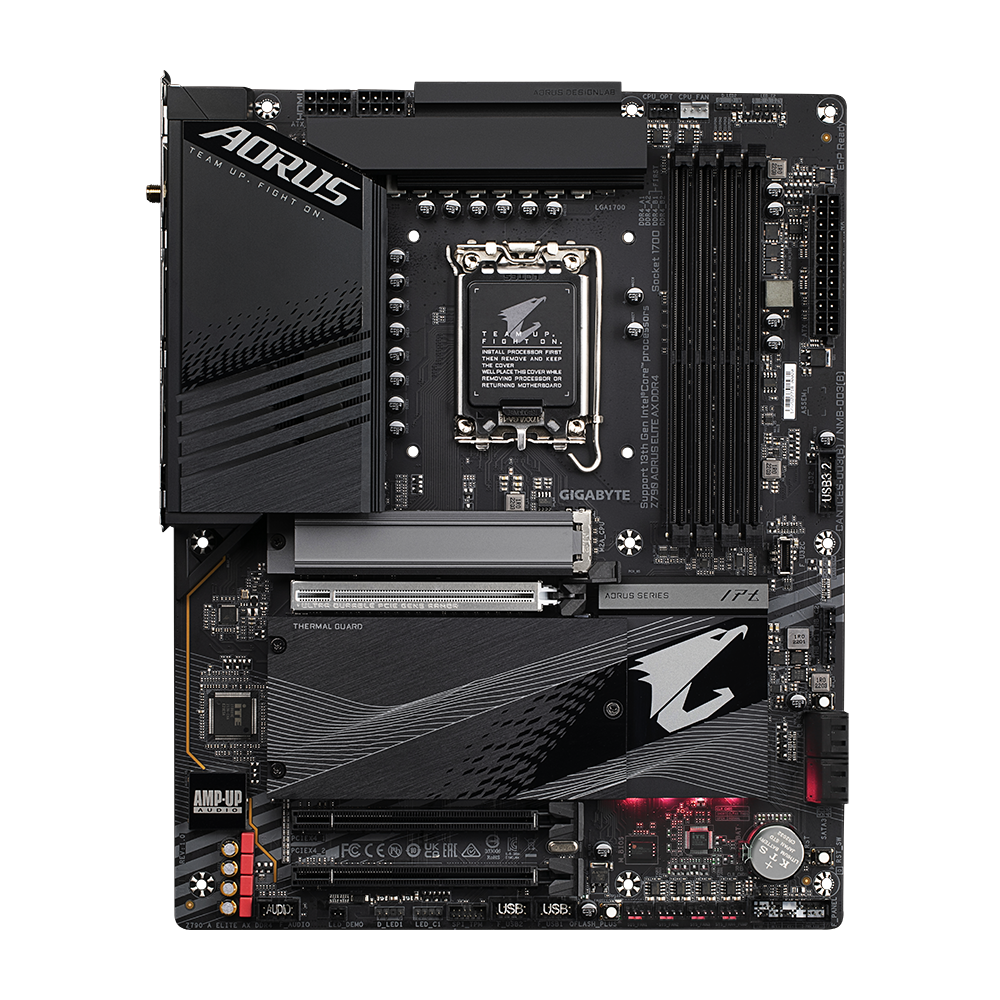

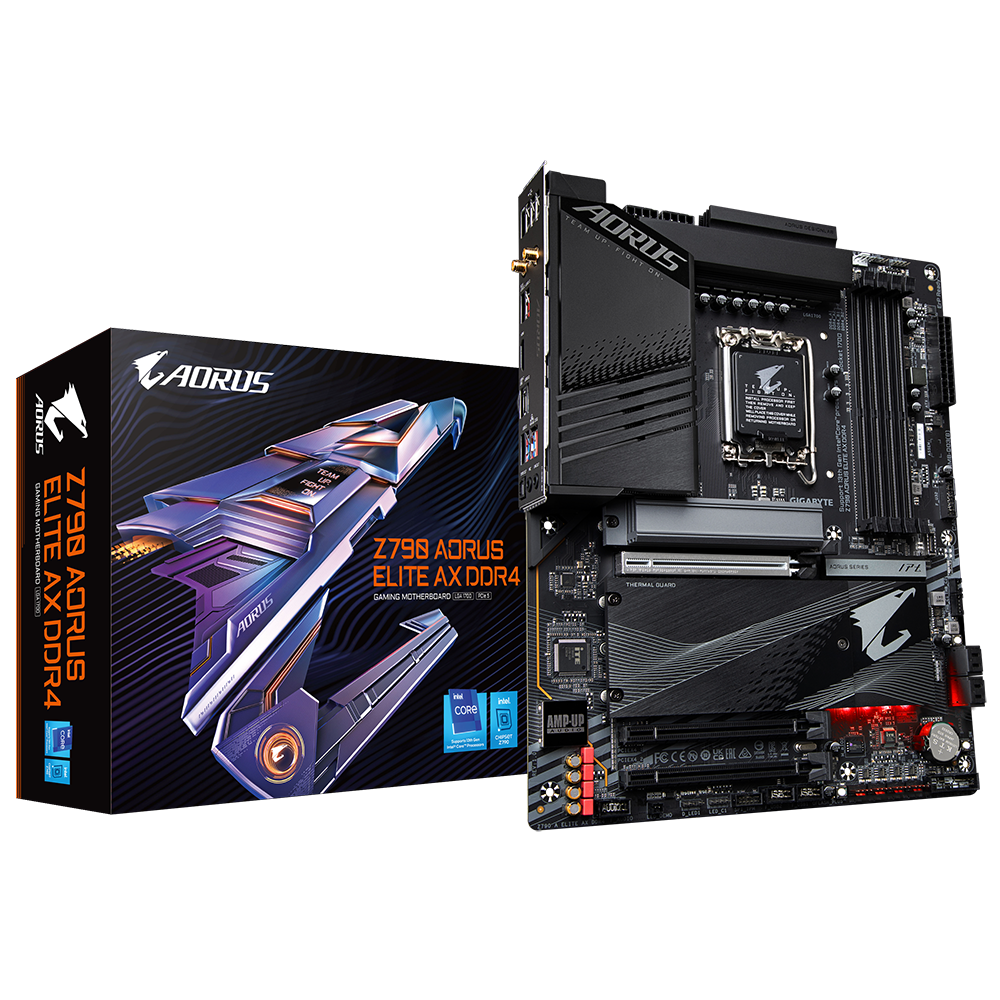

Placa de bază Gigabyte Z790 AORUS ELITE AX DDR4 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza GIGABYTE Z790 AORUS ELITE AX DDR4 LGA 1700, Z790 Express Motherboard – 4x DDR4 – M.2 PCIe 4.0 – USB 3.2 – PCI-Express 5.0 16x – LAN 2.5 GbE – Wi-Fi 6E

Specificație: Placa de bază Gigabyte Z790 AORUS ELITE AX DDR4 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
HDMI version	2.0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
On-board graphics card	No
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
S/PDIF out port	Yes
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	Z790
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
Thunderbolt headers	2
12V power connector	Yes
Clear CMOS button	Yes
Bundled software	Norton Internet Security
Number of storage drives supported	8
Number of M.2 (M) slots	4
Motherboard chipset	Intel Z790
PCI Express x16 slots	3
Maximum internal memory supported by processor	128 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speeds	5333 MHz
MB-Format	ATX
MB-Socket	1700
PCI-Ex1	0
PCI-Ex16	3
RAM-Slots	4
Microphone in	Yes
Bluetooth version	5.3
Height	35 mm
Cables included	SATA
Width	305 mm
Depth	244 mm
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Headphone outputs	2
Package weight	2.32 kg
Producator	GIGABYTE
Garantie	36
