Name: Placa de bază Gigabyte H610M S2H V3 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: H610M S2H V3 DDR4
Price: 465.23 RON
Availability: InStock

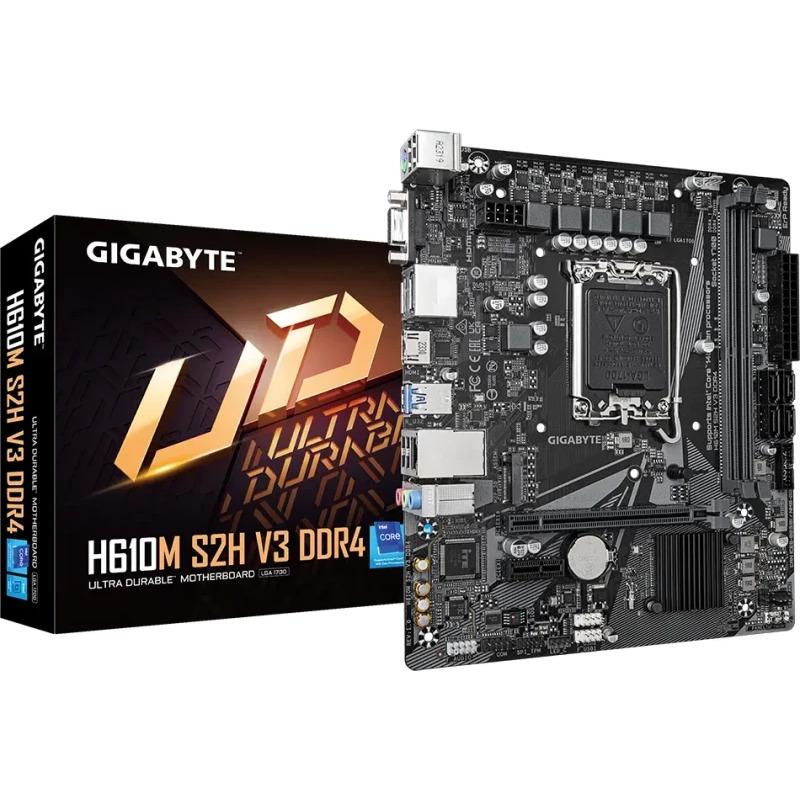

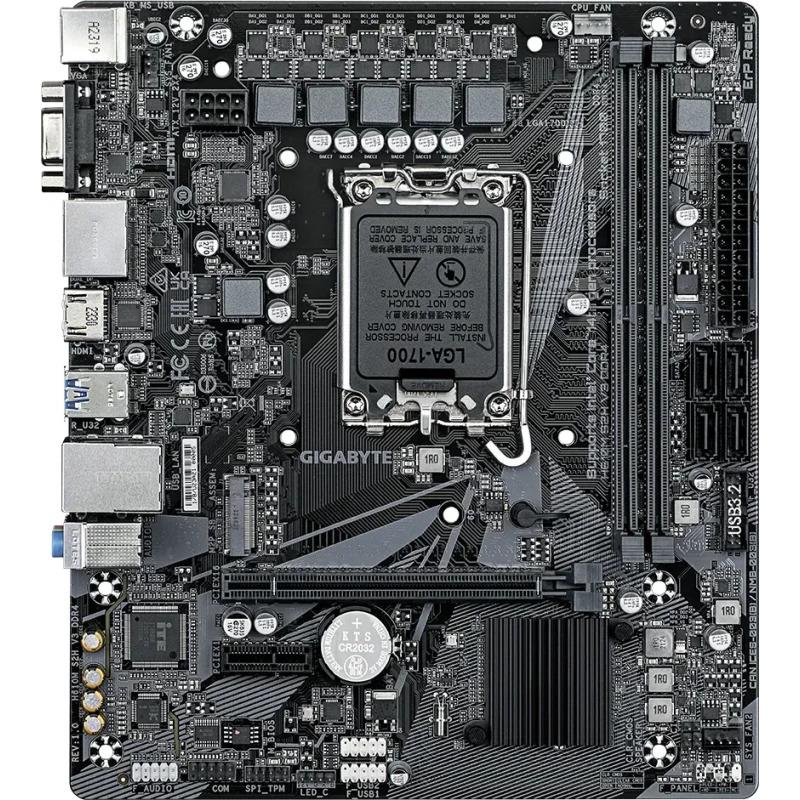

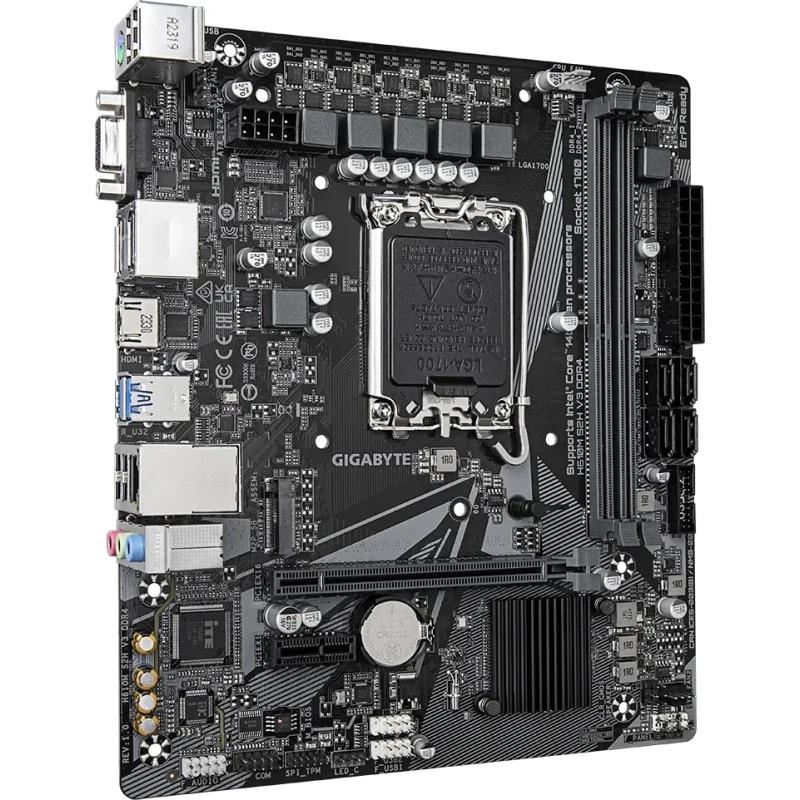

Placa de bază Gigabyte H610M S2H V3 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza GIGABYTE H610M S2H V3 LGA1700, 2x DDR4, 1x PCIE x16 1x PCIE x1, 1x D-Sub 1x HDMI 2x DP, 1x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte H610M S2H V3 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
Component for	PC
Cooling type	Active
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
DisplayPorts quantity	2
Line-in	Yes
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
HDCP	Yes
DisplayPort version	1.2
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
12V power connector	Yes
BIOS memory size	128 Mbit
Serial port headers	1
Chassis intrusion connector	Yes
Number of RGB LED pin headers	1
1st M.2 largest key size	2280
Number of storage drives supported	5
Number of EPS power connectors (8-pin)	1
Supported memory clock speeds	3200 MHz
Motherboard chipset	Intel H610 Express
Number of CPU fan connectors	1
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
1st M.2 highest PCI Express generation	3.0
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
Microphone in	Yes
Height	35 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Width	223 mm
Depth	193 mm
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
