Name: Placa de bază Gigabyte B860M EAGLE LGA1851 - A.W.P.S Store
Brand: GIGABYTE
SKU: B860M EAGLE
Price: 790.92 RON
Availability: OutOfStock

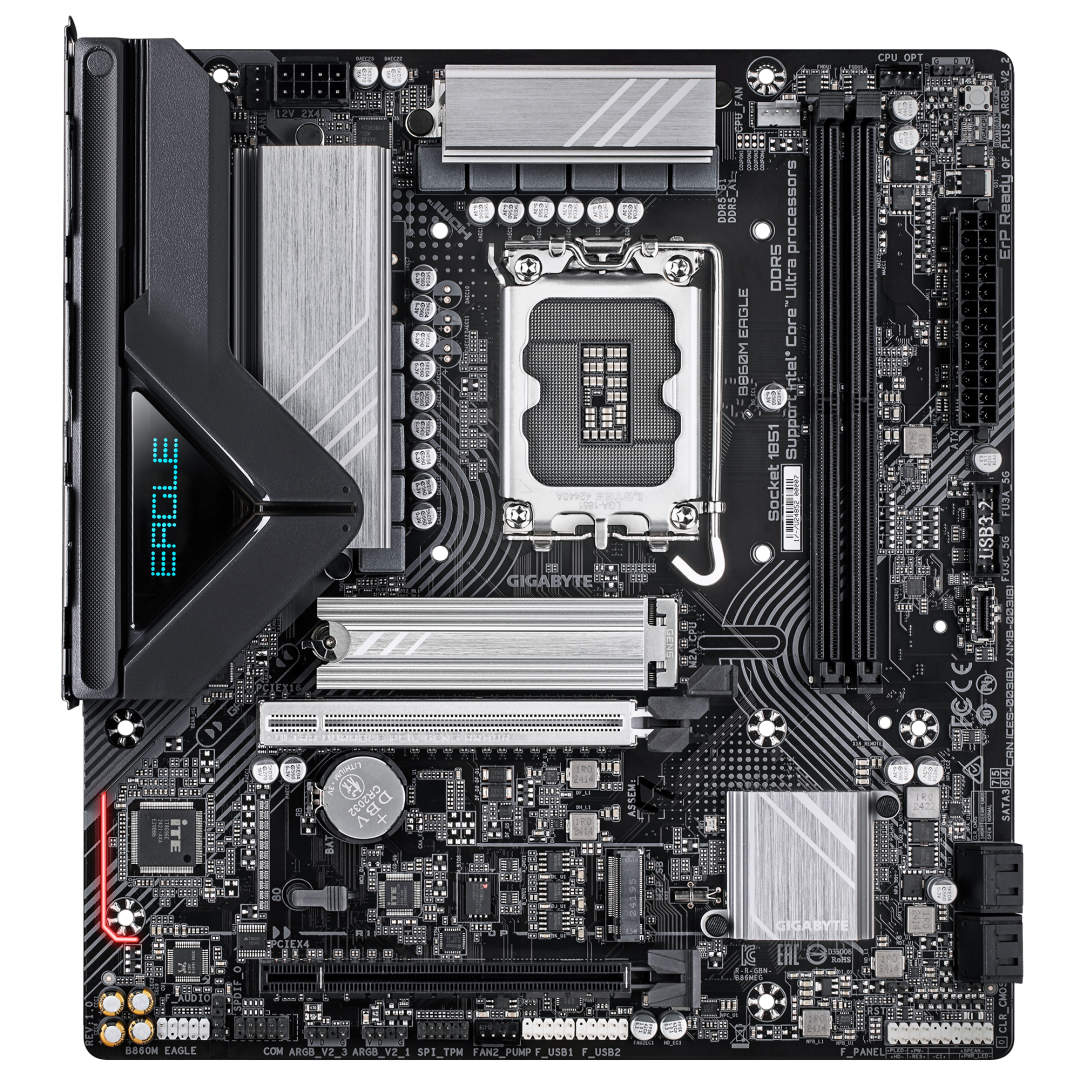

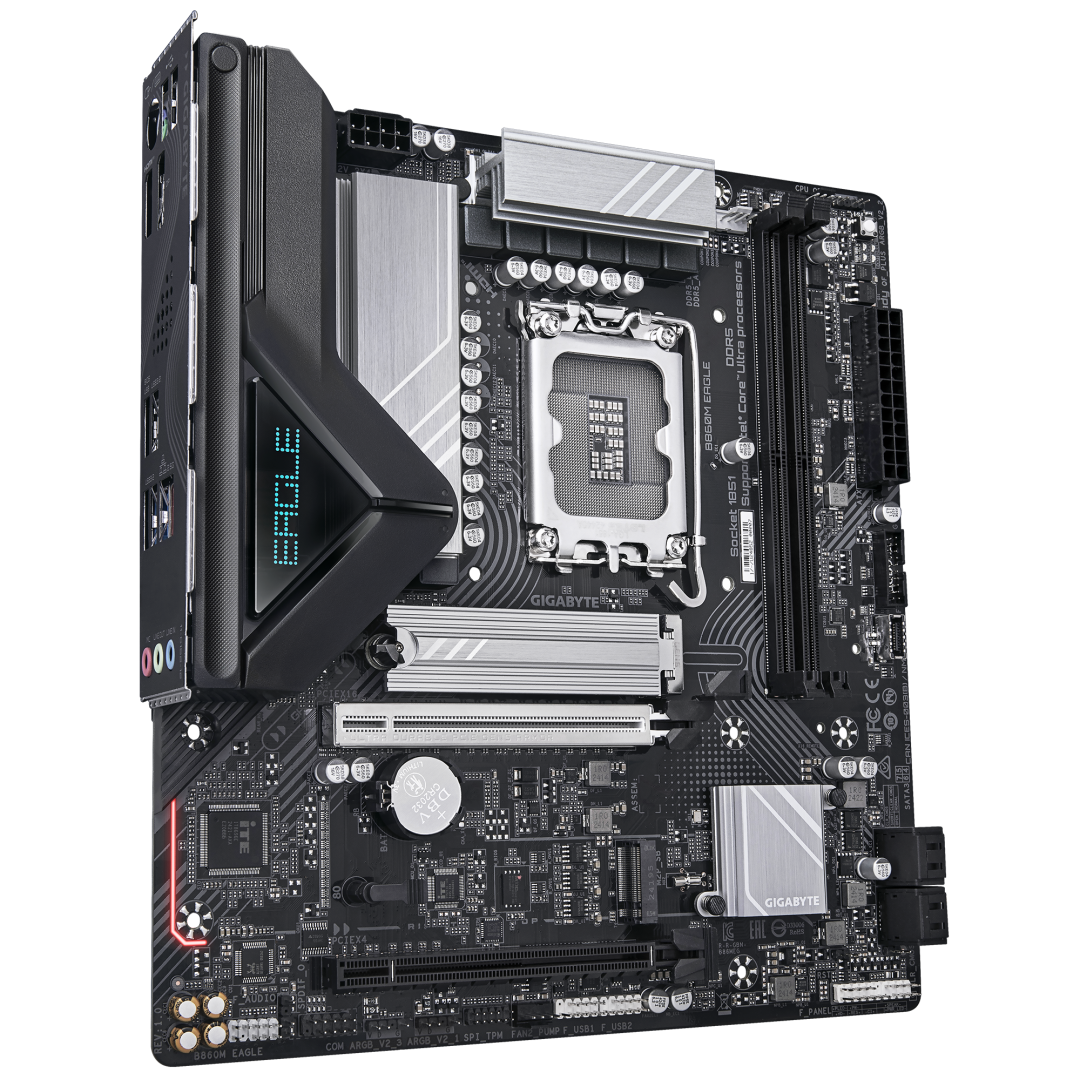

Placa de bază Gigabyte B860M EAGLE LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE B860M EAGLE LGA1851, 2x DDR5, 1x HDMI 1x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte B860M EAGLE LGA1851

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
USB 2.0 ports quantity	3
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
DisplayPort version	2.1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B860
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
PC health monitoring	Fan, Temperature, Voltage, Water cooling
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Number of storage drives supported	6
S/PDIF out connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	3
Supported memory clock speeds	5600,6400,9066 MHz
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Width	244 mm
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Weight	1.1 kg
Package width	265 mm
Package depth	265 mm
Depth	225 mm
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
