Name: Placa de bază Gigabyte B850M FORCE WIFI6E AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B850M DS3H
Price: 747.63 RON
Availability: InStock

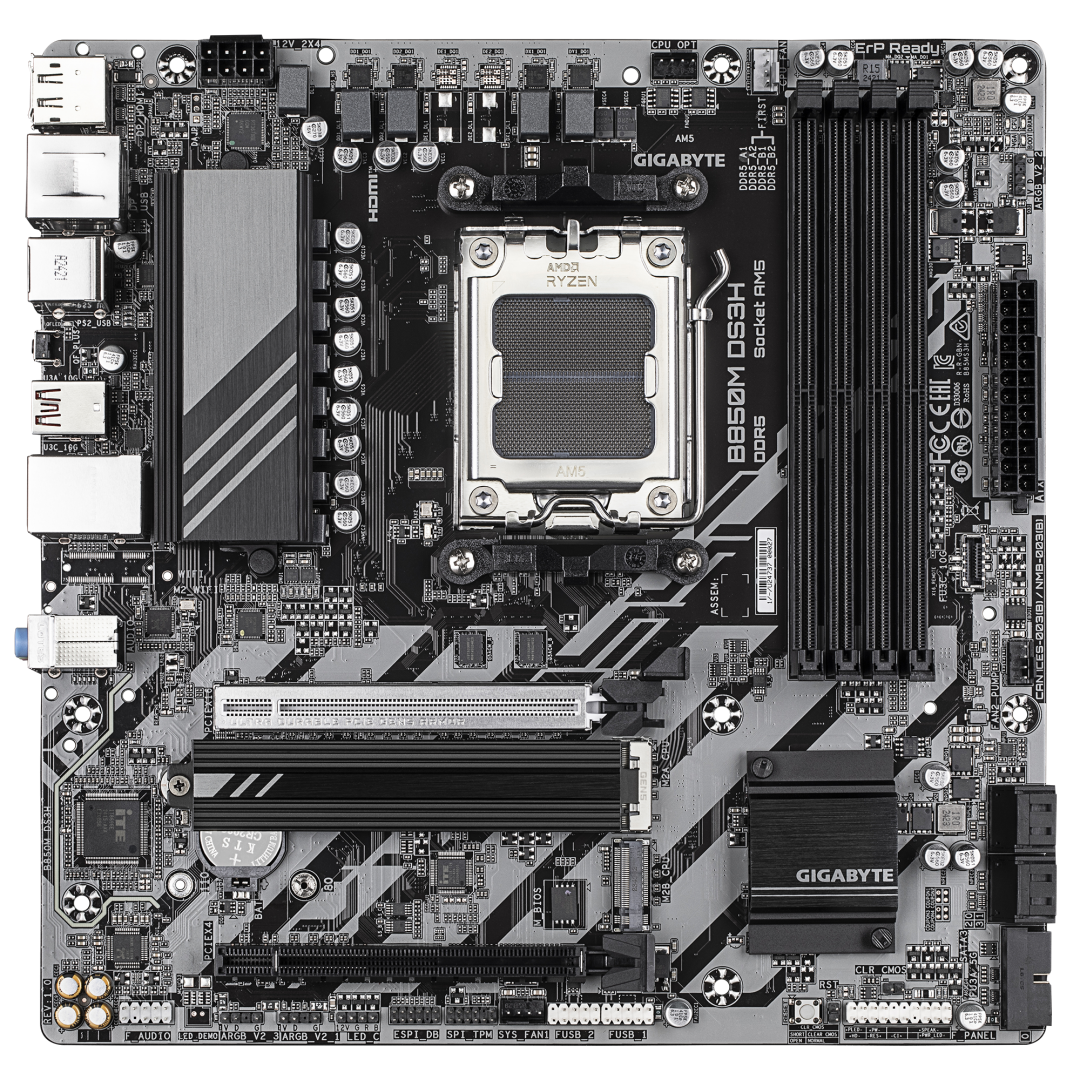

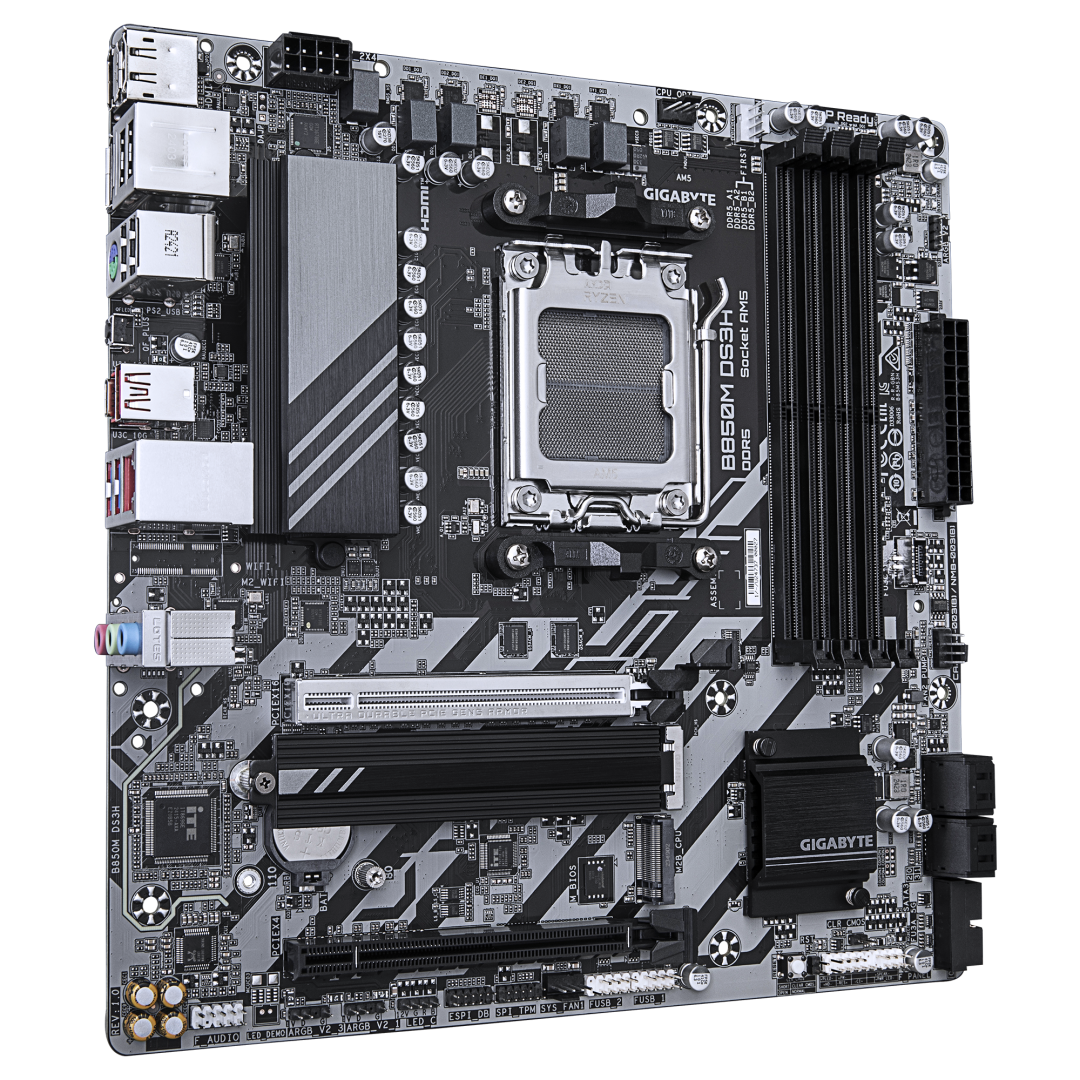

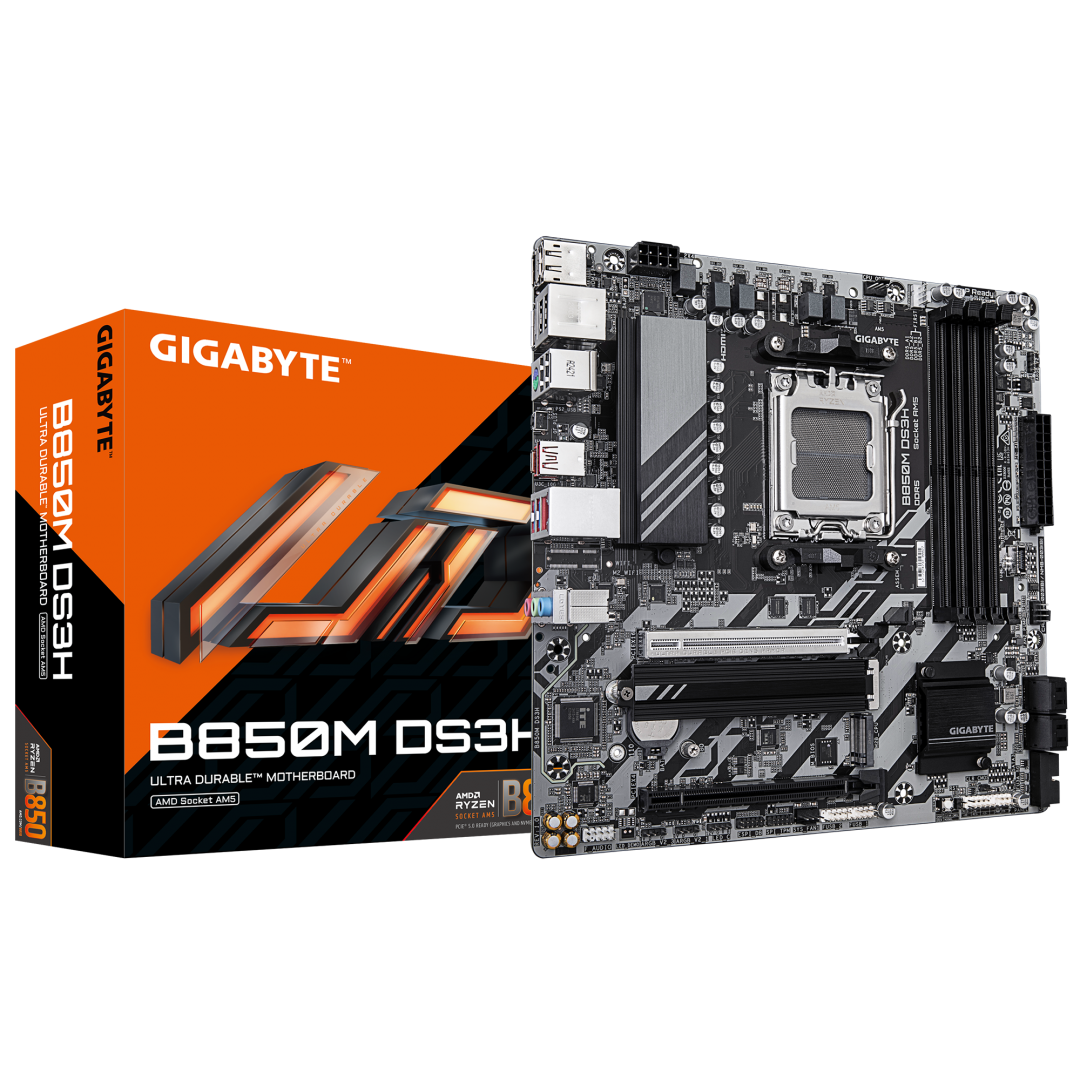

Placa de bază Gigabyte B850M FORCE WIFI6E AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE B850M DS3H AM5, 4x DDR5, 1x HDMI 2x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte B850M FORCE WIFI6E AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B850
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
PC health monitoring	Fan, Temperature, Voltage, Water cooling
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Peripheral (Molex) power connectors (4-pin)	1
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors	3
Motherboard chipset	AMD B850
Supported memory clock speeds	8200 MHz
Number of EPS power connectors (8-pin)	1
2nd M.2 largest key size	25110
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Width	244 mm
Depth	244 mm
Package weight	1.34 kg
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	270 mm
Package depth	268 mm
Weight	1.14 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
