Name: Placa de bază Gigabyte B850M DS3H AM5 - A.W.P.S Store
Brand: ASROCK
SKU: B850 RIPTIDE WIFI
Price: 1323.88 RON
Availability: OutOfStock

Placa de bază Gigabyte B850M DS3H AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

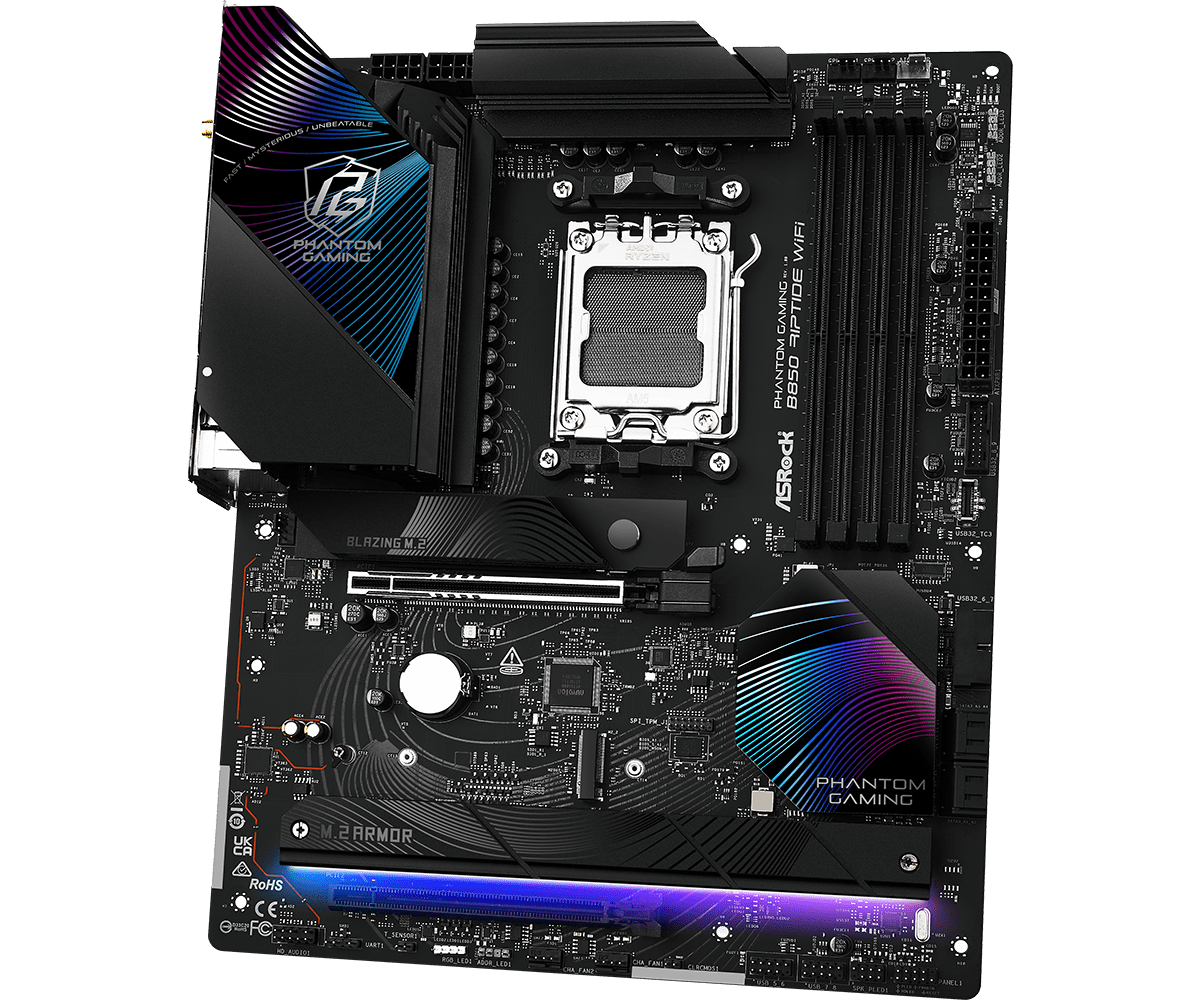

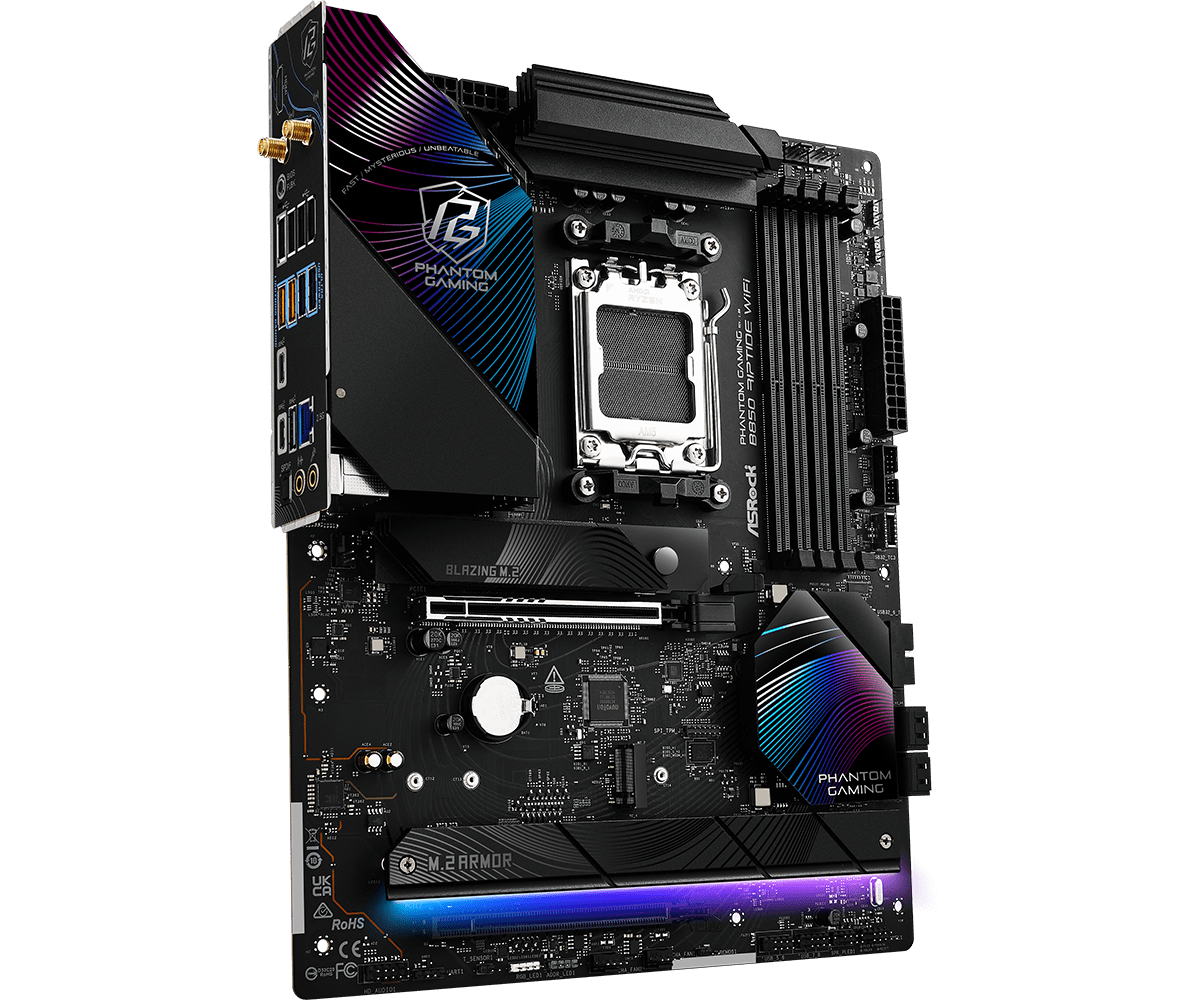

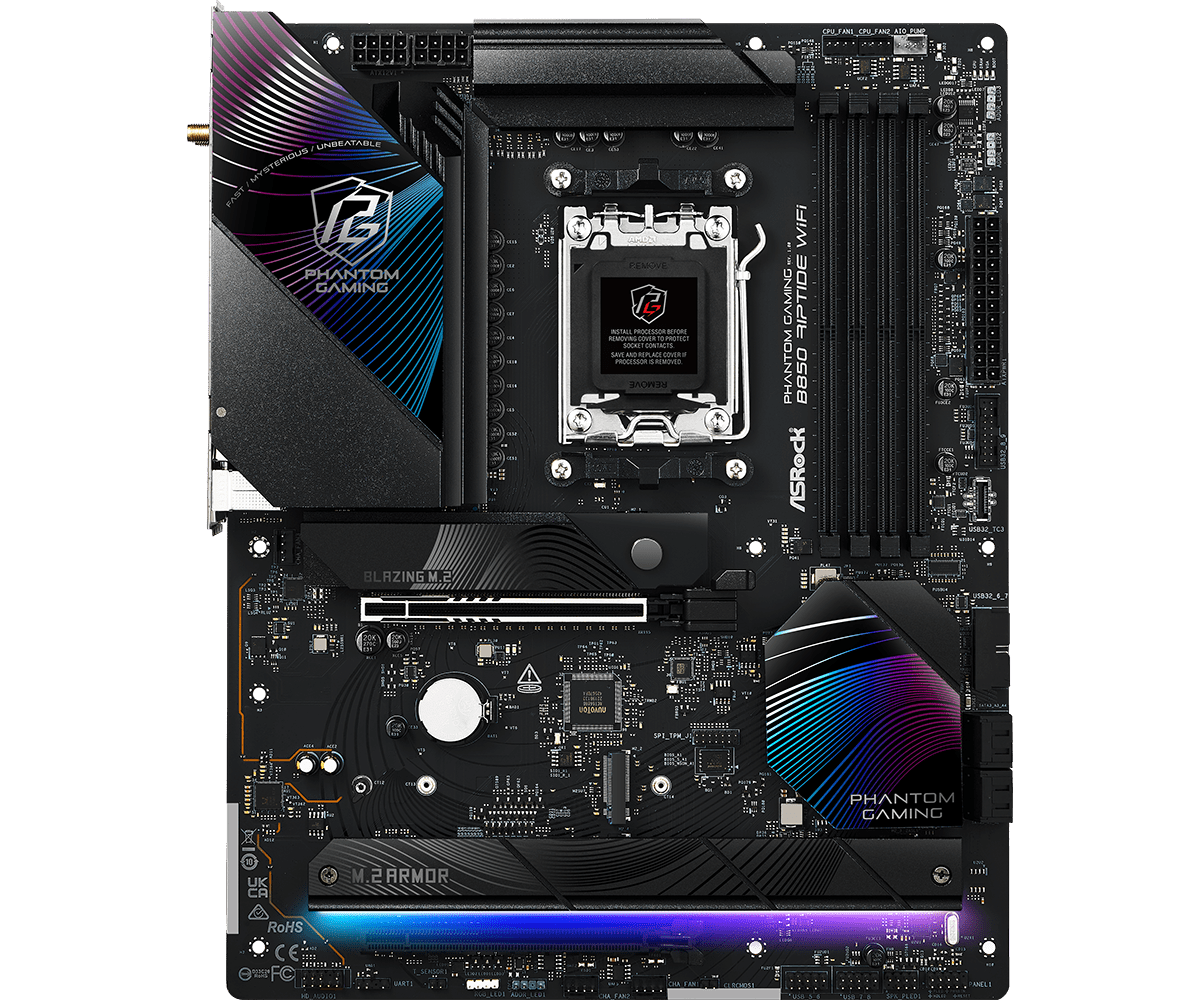

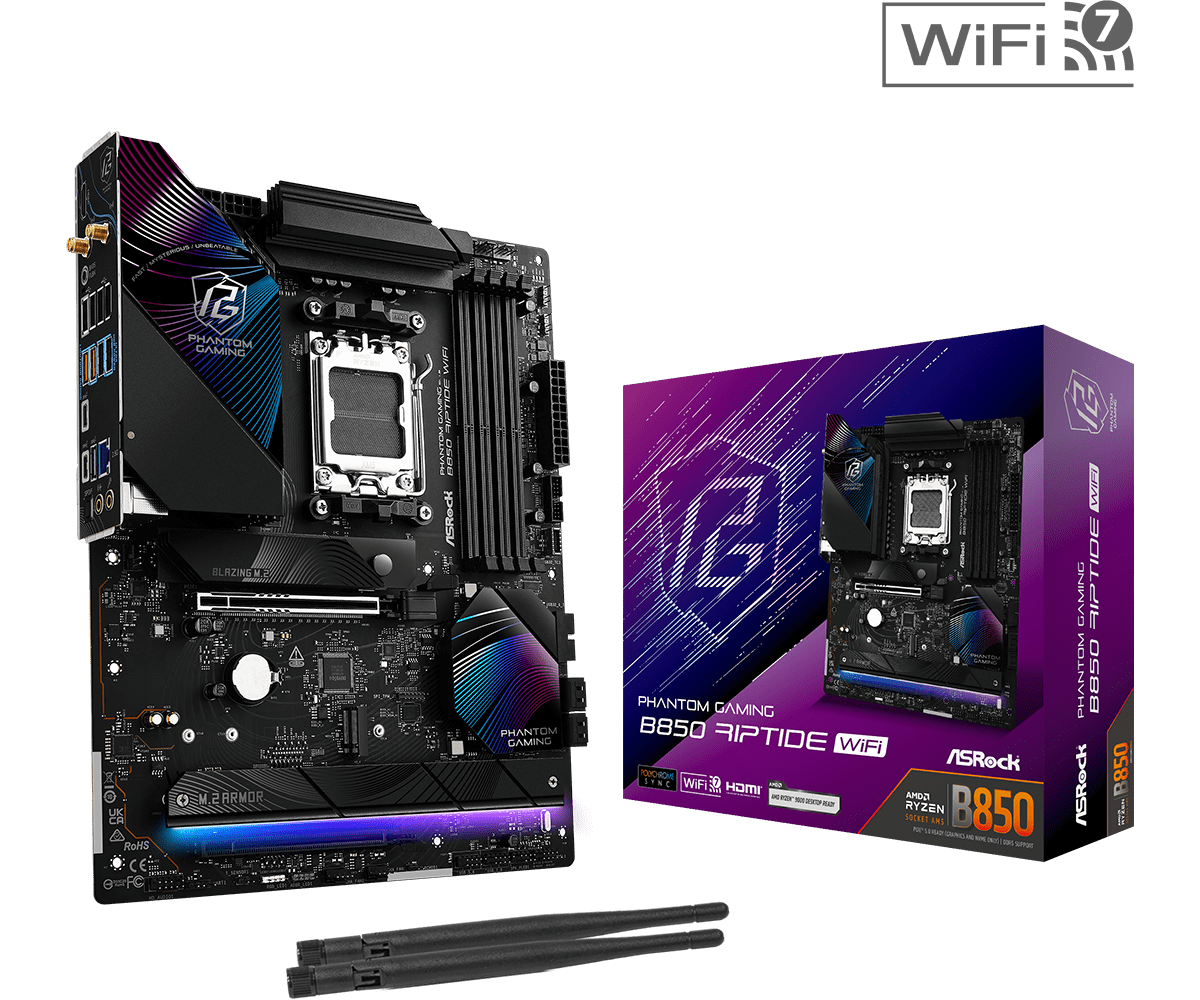

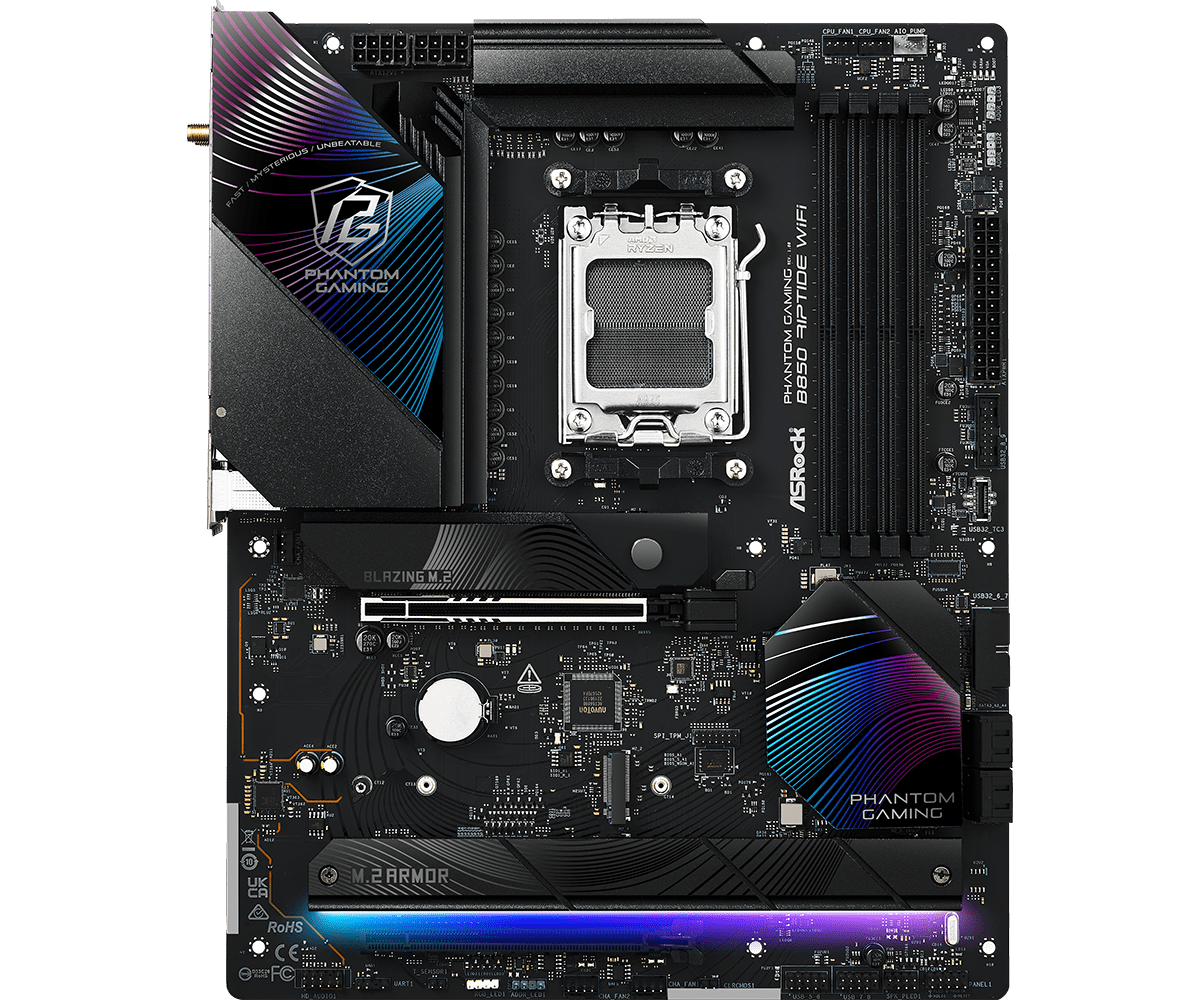

Placa de Baza ASROCK PHANTOM GAMING B850 RIPTIDE WIFI AM5, 4x DDR5, 1x HDMI, 2x PCIE x16, 5x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de bază Gigabyte B850M DS3H AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Maximum resolution	3840 x 2160 pixels
S/PDIF out port	Yes
HDCP	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B850
Gaming	Da
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	5
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
Antenna included	Yes
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of storage drives supported	8
Number of M.2 (M) slots	4
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Number of chassis fan connectors	3
Number of RGB LED pin headers	1
Motherboard chipset	AMD B850
Audio Chip	Realtek ALC4082
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
3rd M.2 largest key size	2280
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
Number of water pump connectors	1
LAN controller	Killer E3100G
Microphone in	Yes
Bluetooth version	5.4
Cables included	SATA
Certification	FCC, CE, ErP/EuP
Width	305 mm
Depth	244 mm
Headphone outputs	2
Producator	ASROCK
Garantie	36
