Name: Placa de bază Gigabyte B760M GAMING X AX LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760M GAMING X AX
Price: 751.40 RON
Availability: OutOfStock

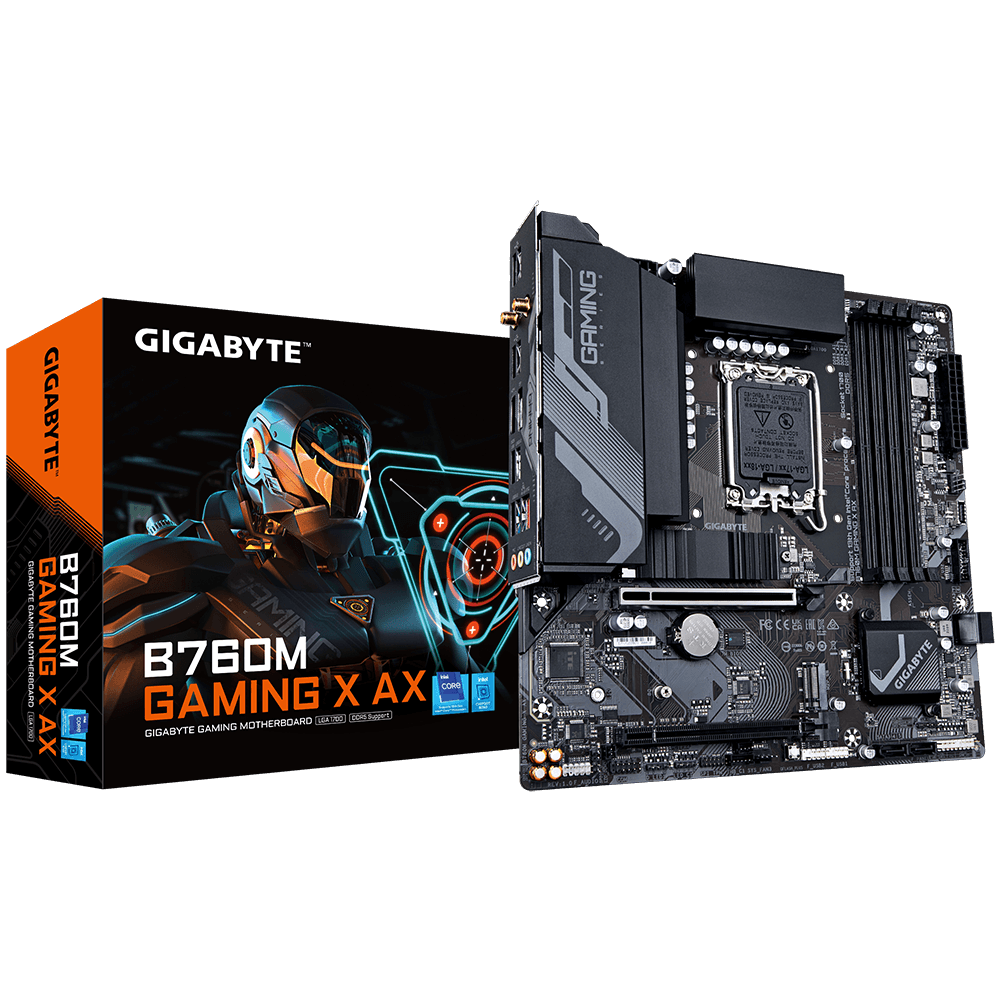

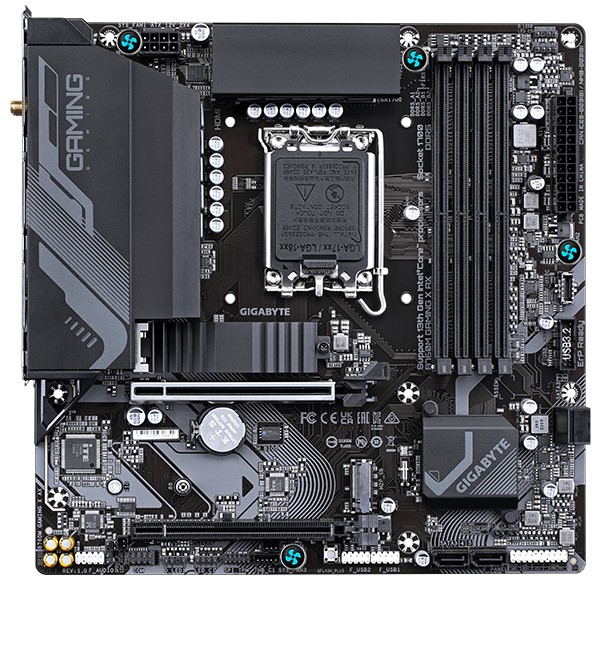

Placa de bază Gigabyte B760M GAMING X AX LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza GIGABYTE B760M GAMING X AX DDR5 Intel B760 LGA 1700, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s

Specificație: Placa de bază Gigabyte B760M GAMING X AX LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
USB 2.0 ports quantity	5
Maximum internal memory	192 GB
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	B760
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Maximum resolution	4096 x 2304 pixels
Thunderbolt headers	2
ECC сompatibility	Non-ECC
Number of storage drives supported	6
S/PDIF out connector	Yes
Supported memory clock speeds	7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Serial port headers	1
Motherboard chipset	Intel B760 Express
Number of chassis fan connectors	3
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors	2
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Cables included	SATA
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	270 mm
Package depth	268 mm
Package weight	1.64 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
