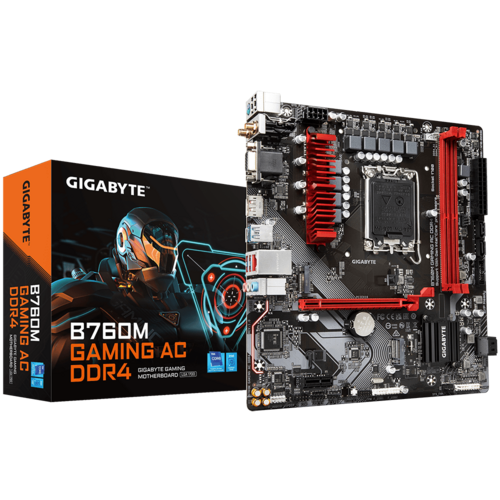

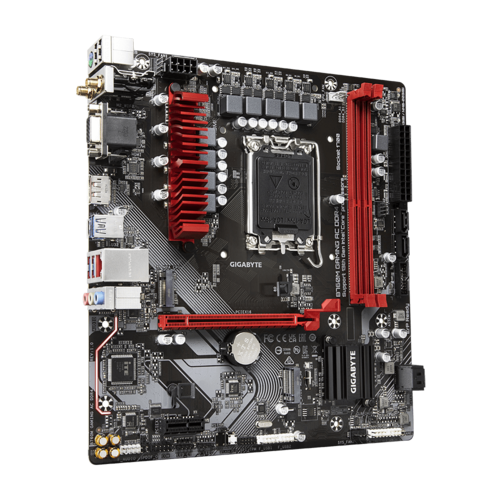

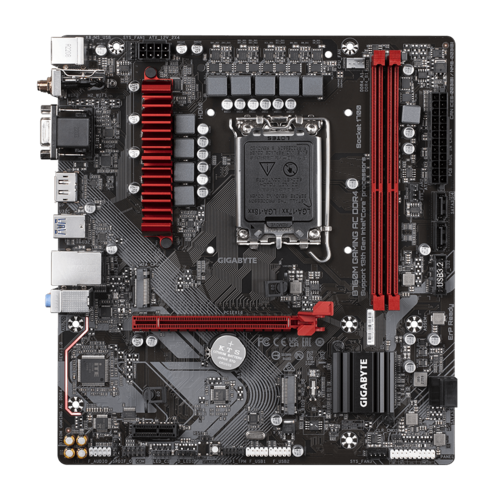

Placa de bază Gigabyte B760M GAMING AC DDR4 LGA1700

Name: Placa de bază Gigabyte B760M GAMING AC DDR4 LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760M GAMING AC DDR4
Price: 590.20 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 687.51 lei.Prețul curent este: 590.20 lei.

Stoc epuizat

SKU: B760M GAMING AC DDR4 Categorie Placi de baza

Placa de baza GIGABYTE B760M GAMING AC DDR4, LGA 1700, 2x DDR4, 1x D-Sub 1x HDMI 1x DP, 1x PCIe x1 1x PCIe x16, 2x M.2, 4xSATA 6gb/s

Specificație: Placa de bază Gigabyte B760M GAMING AC DDR4 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Cooling type	Active
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
HDCP	Yes
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Drivers included	Yes
Model Chipset	B760
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Discrete graphics support	Yes
Thunderbolt headers	2
Clear CMOS button	Yes
S/PDIF out connector	Yes
Motherboard chipset	Intel B760
Serial port headers	1
Number of chassis fan connectors	3
Number of displays supported	3
Maximum internal memory supported by processor	64 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speeds	5333 MHz
Microphone in	Yes
Headphone outputs	1
Bluetooth version	4.2
Height	35 mm
Cables included	SATA
Width	244 mm
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	270 mm
Package depth	268 mm
Depth	225 mm
Package weight	1.07 kg
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
