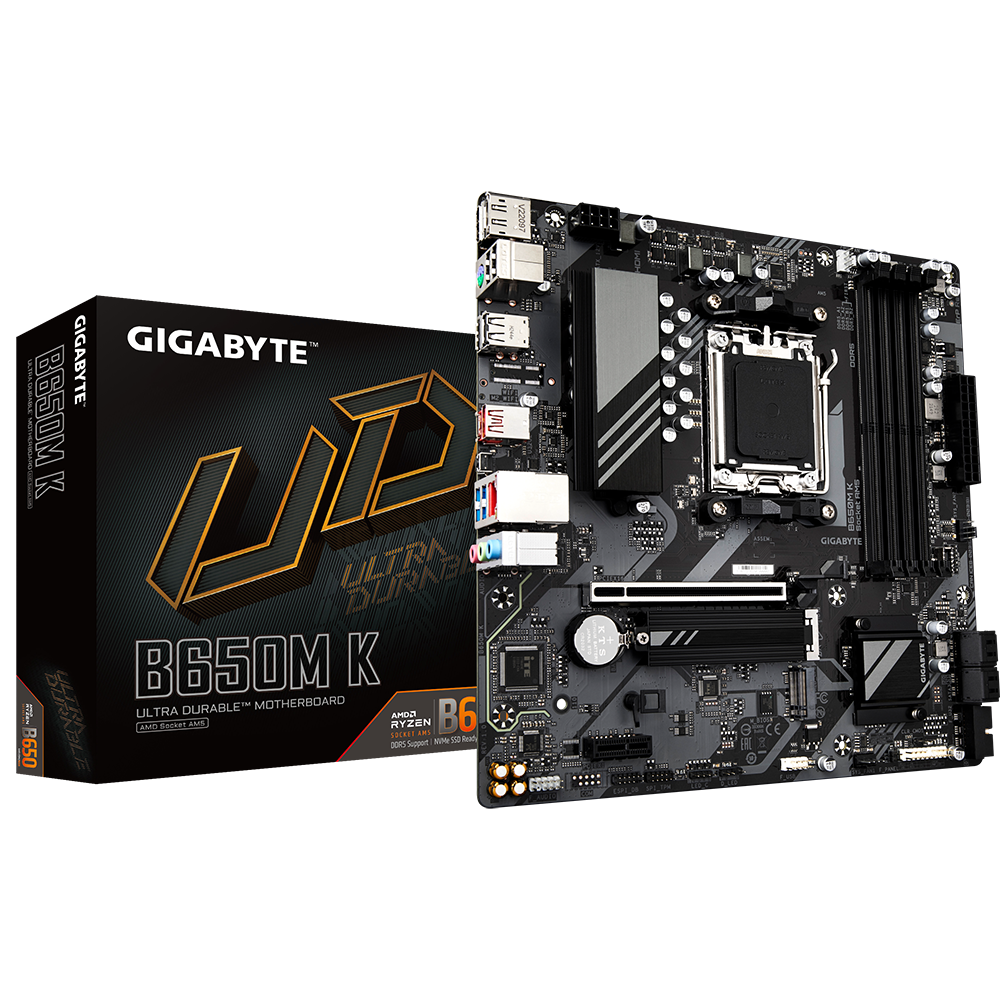

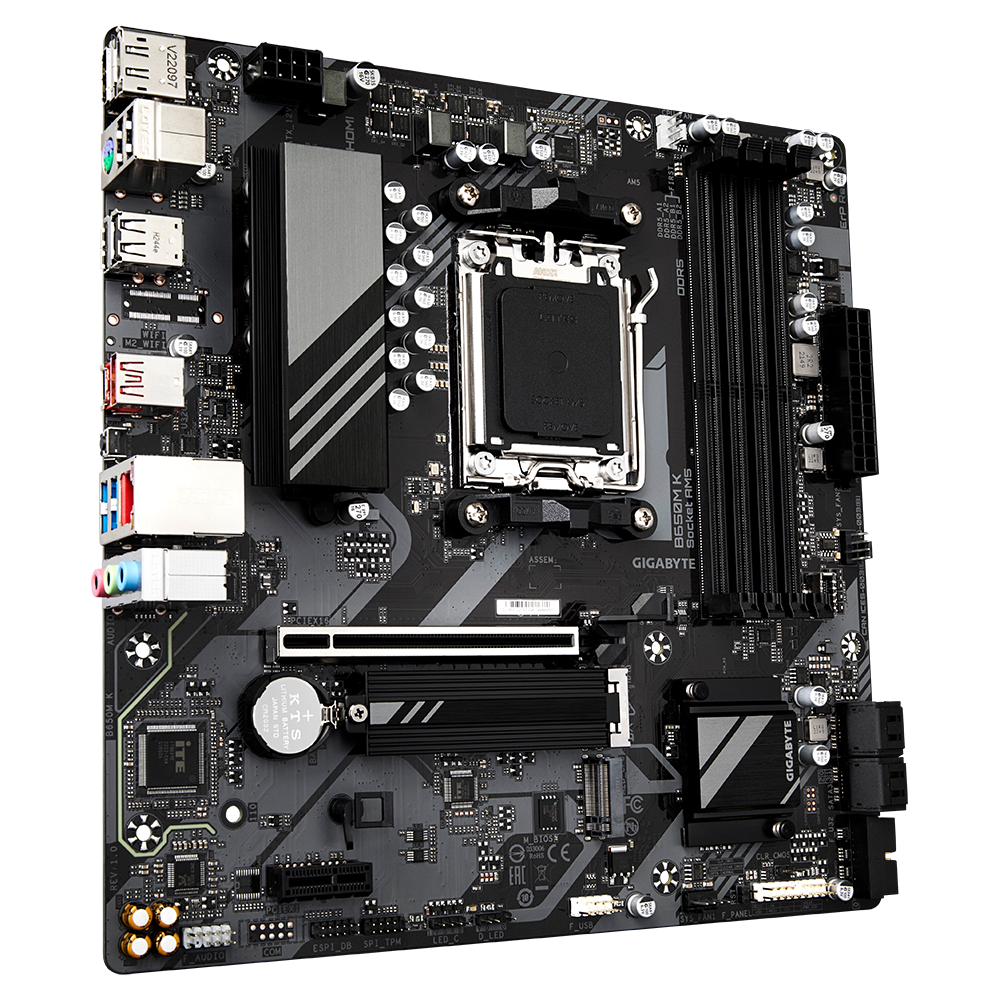

Placa de bază Gigabyte B650M K AM5

Name: Placa de bază Gigabyte B650M K AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650M K
Price: 834.11 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

834.11 lei

Stoc epuizat

SKU: B650M K Categorie Placi de baza

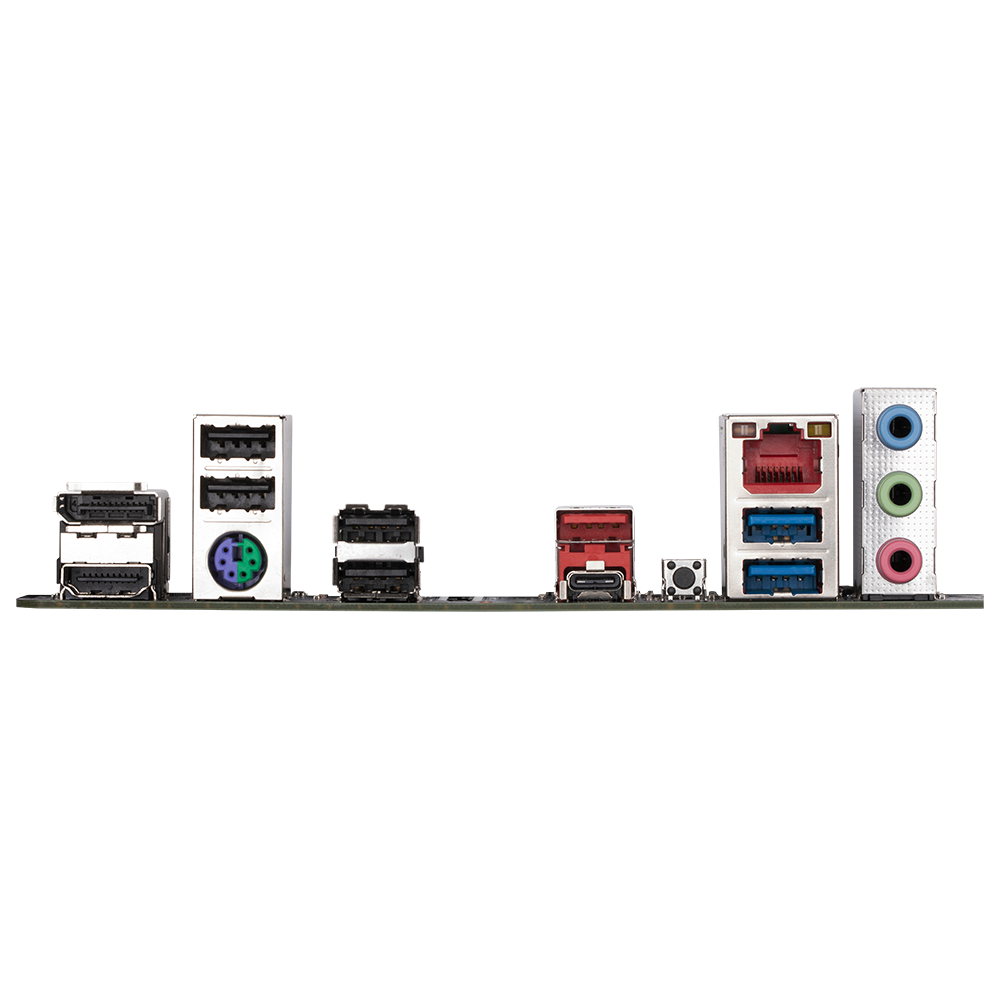

Placa de baza Gigabyte B650M K AM5, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, LAN 2.5Gbps, mATX

Specificație: Placa de bază Gigabyte B650M K AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
PCI Express x1 slots	1
HDCP	Yes
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
USB 2.0 connectors	1
PC health monitoring	Fan, Temperature, Voltage
Motherboard chipset	AMD B650
Number of displays supported	3
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Compatible processor series	AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series
Microphone in	Yes
Cables included	SATA
Width	244 mm
Headphone outputs	3
Depth	244 mm
Producator	GIGABYTE
Garantie	36
