Name: Placa de bază Gigabyte B650M AORUS ELITE AX AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650M AOR ELITE AX
Price: 1213.81 RON
Availability: OutOfStock

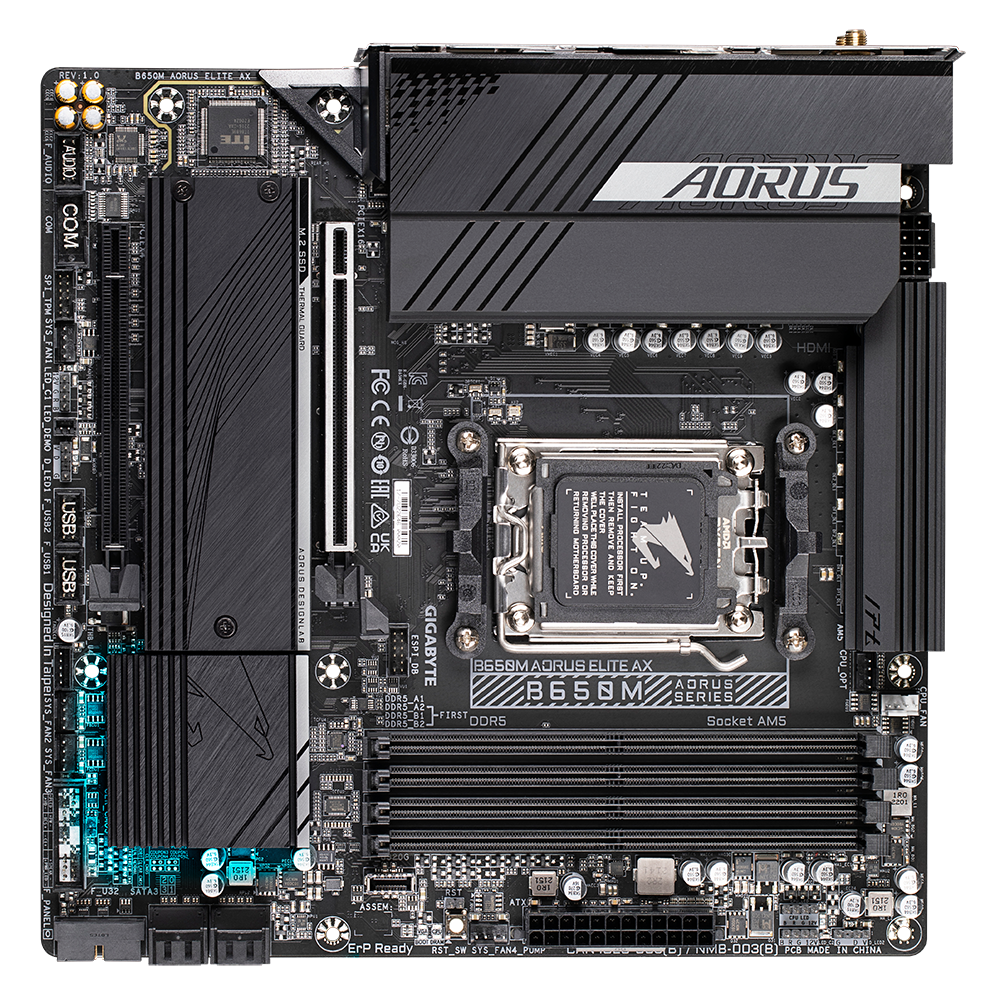

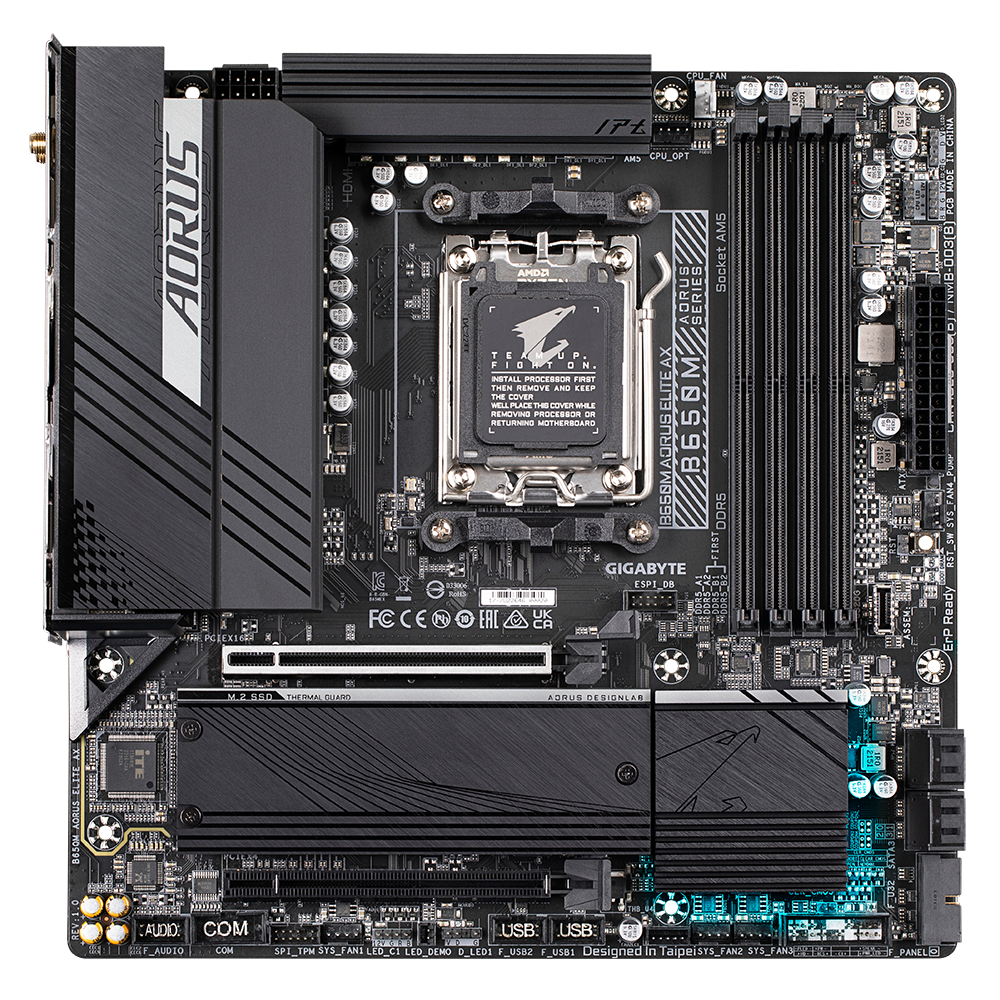

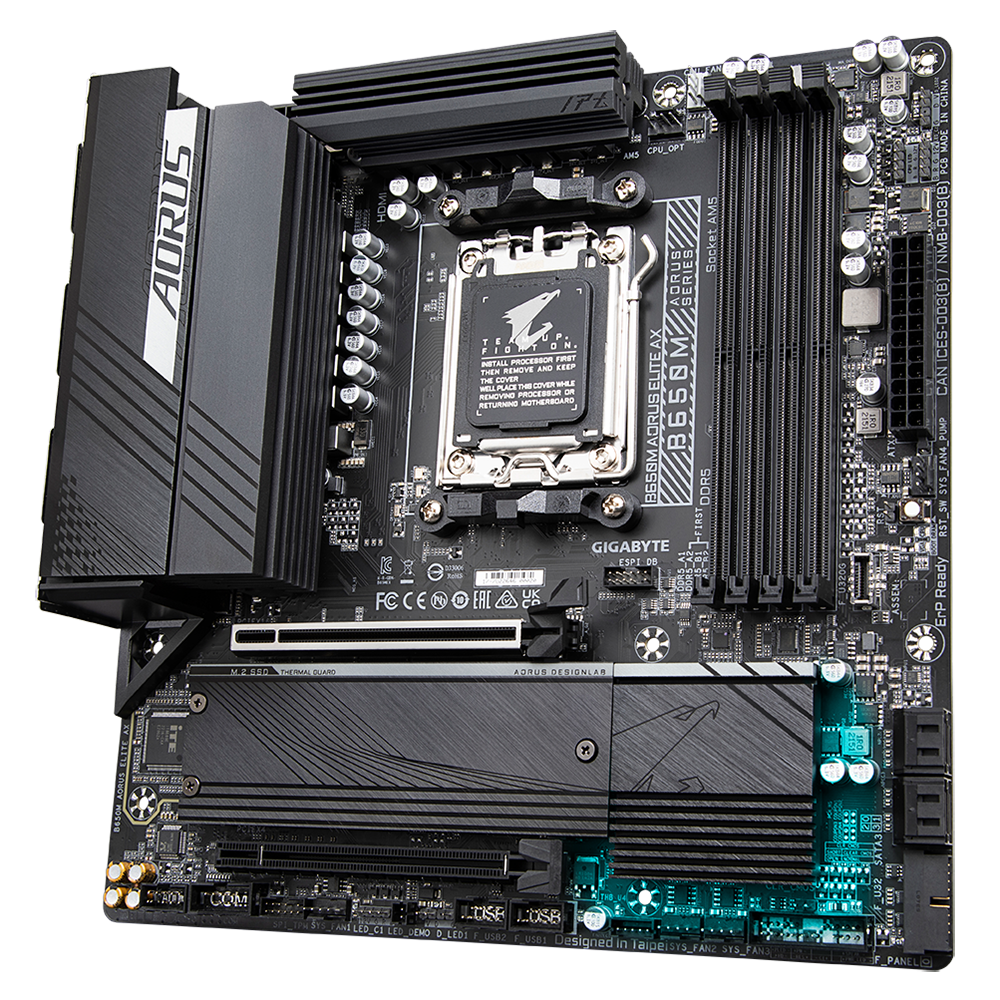

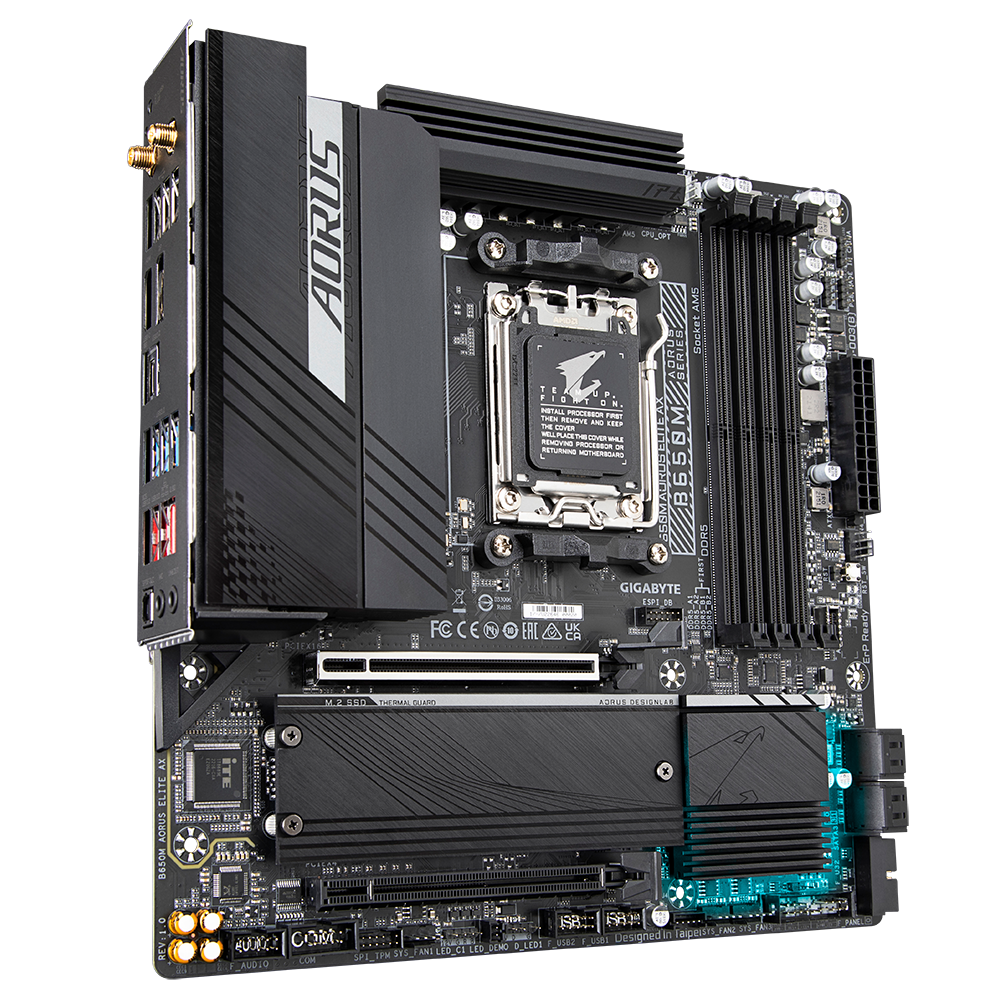

Placa de bază Gigabyte B650M AORUS ELITE AX AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte B650M AORUS ELITE AX AM5, B650 Chipset, Supports 7000 series AMD Ryzen, 4x DIMM Slots, DDR5 6600MHz, PCIe Gen 4, 4x SATA 6Gb/s connectors, 2xM.2 Slot, 2.5GB LAN, USB Type-C, WIFI 6E, Micro-ATX

Specificație: Placa de bază Gigabyte B650M AORUS ELITE AX AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	2
HDCP	Yes
Screws included	Yes
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Front panel connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
PC health monitoring	Fan, Temperature, Voltage, Water cooling
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Discrete graphics support	Yes
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Motherboard chipset	AMD B650
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Number of RGB LED pin headers	5
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	270 mm
Package depth	268 mm
Package weight	1.96 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
