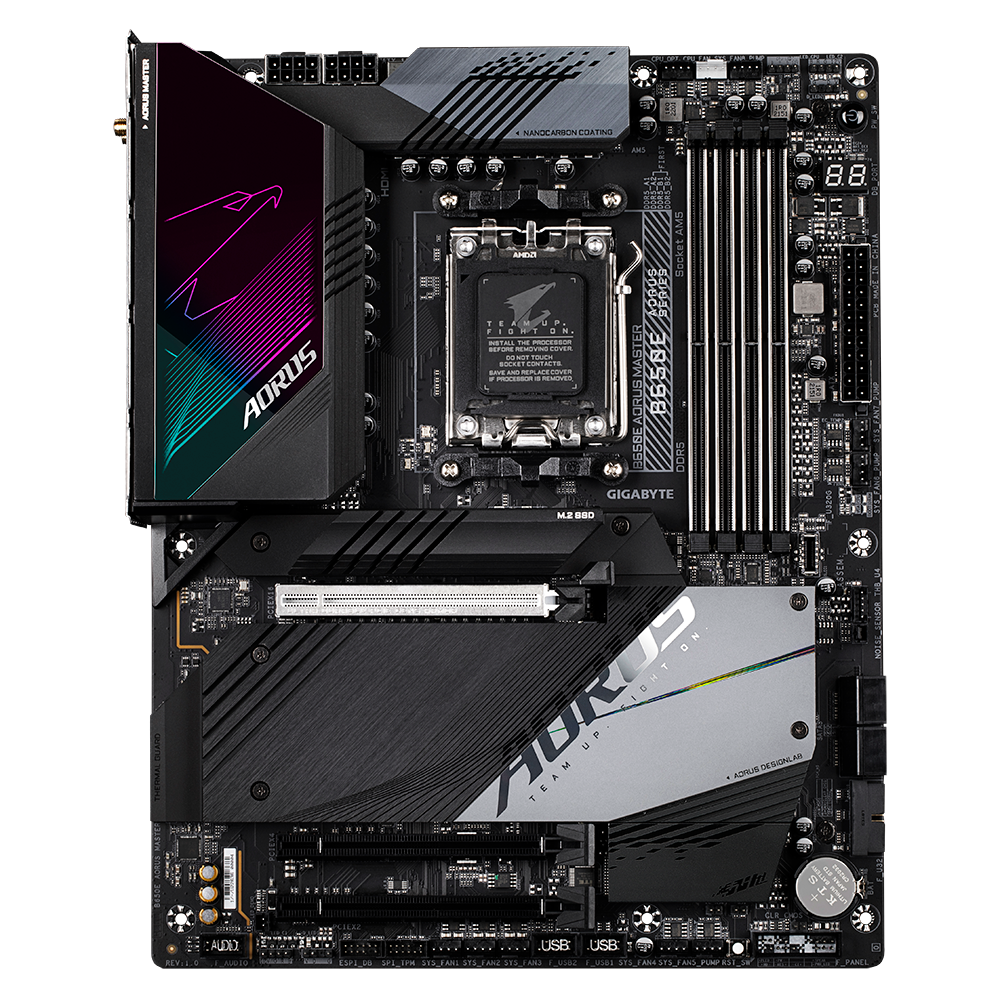

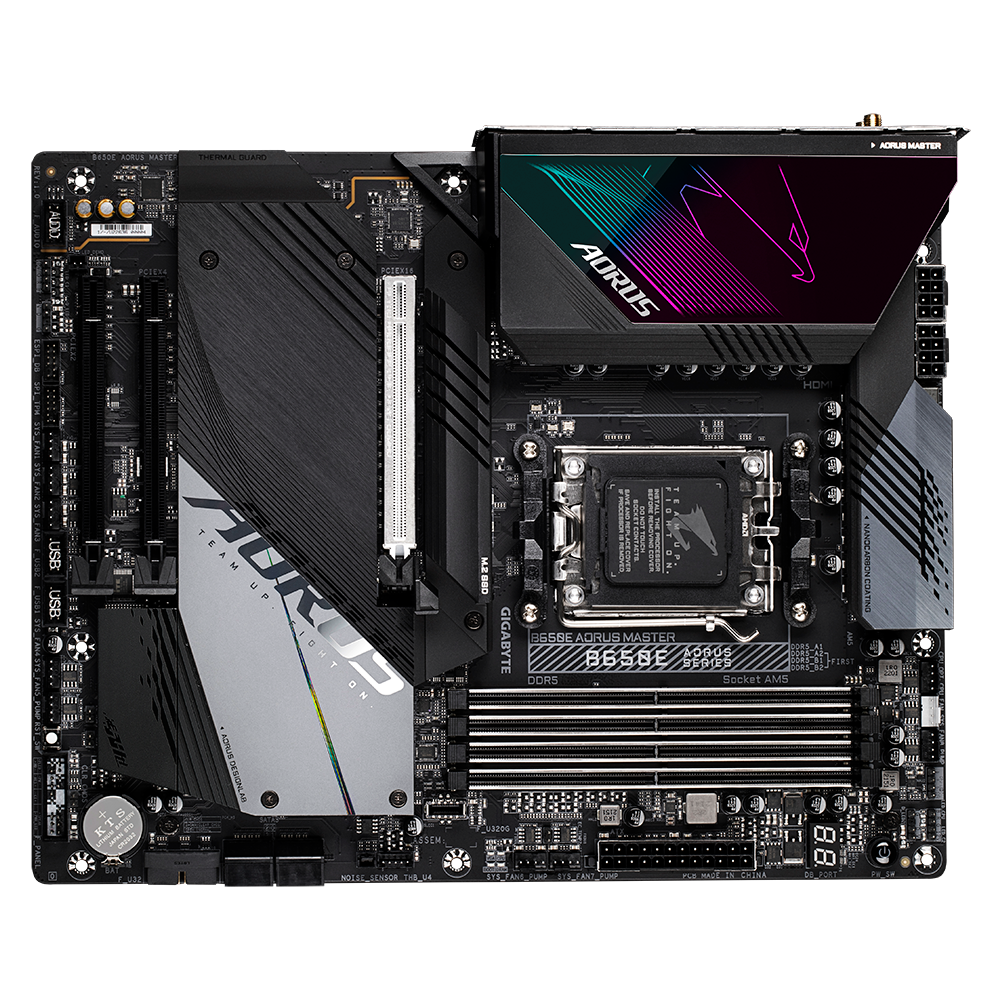

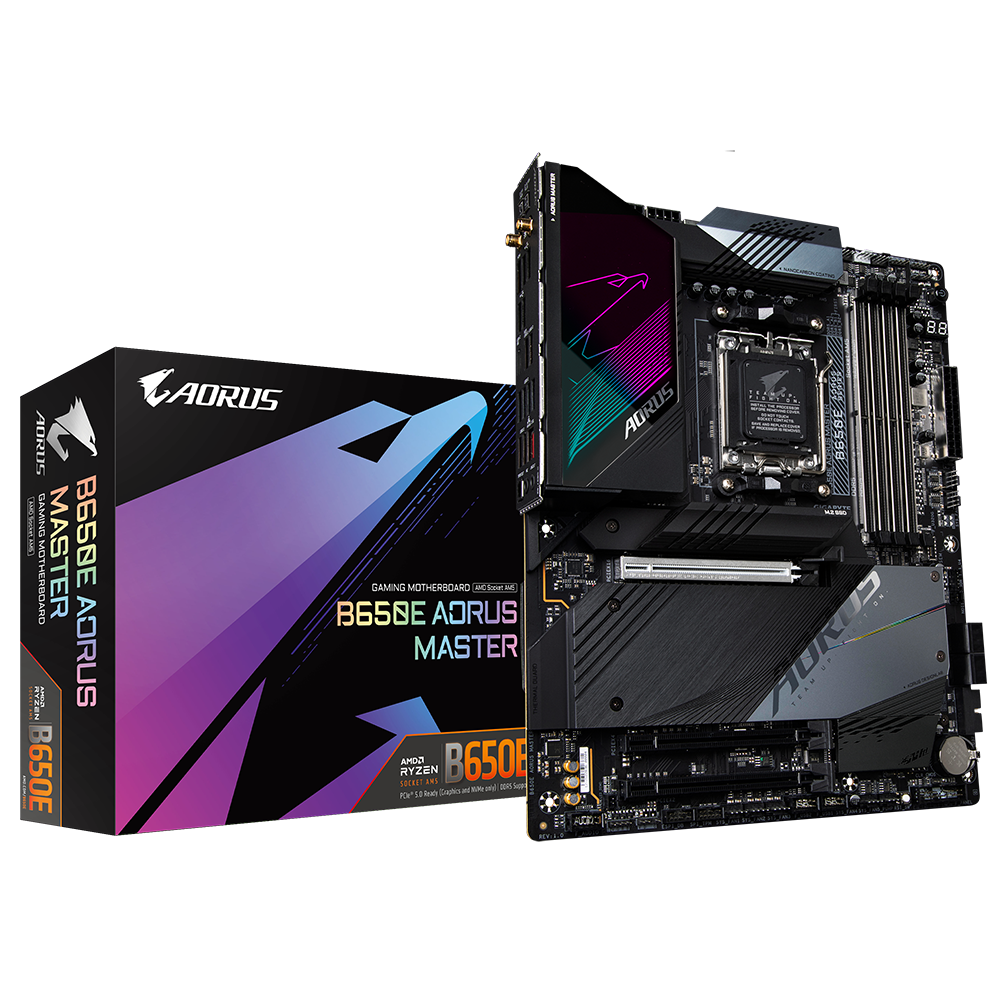

Placa de bază Gigabyte B650E AORUS MASTER AM5

Name: Placa de bază Gigabyte B650E AORUS MASTER AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650E AORUS MASTER
Price: 2208.70 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 2,622.37 lei.Prețul curent este: 2,208.70 lei.

Stoc epuizat

SKU: B650E AORUS MASTER Categorie Placi de baza

Placa de baza Gigabyte B650E AORUS MASTER AM5, Supports 7000 series AMD Ryzen, 4x DIMM Slots, DDR5 6600MHz, PCIe Gen 5, 4x SATA 6Gb/s connectors, 4xM.2 Slot, 2.5GB LAN, USB Type-C, WIFI 6E, ATX

Specificație: Placa de bază Gigabyte B650E AORUS MASTER AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	2
Maximum internal memory	192 GB
HDCP	Yes
Digital audio optical out	1
VGA (D-Sub) ports quantity	0
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Maximum number of SMP processors	1
Discrete graphics support	Yes
USB 3.2 Gen 2x2 connectors	1
Number of EATX power connectors	2
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	8
Number of M.2 (M) slots	4
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Motherboard chipset	AMD B650
Compatible processor series	AMD Ryzen™ 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
WLAN controller model	AMD RZ616
Audio Chip	Realtek ALC1220-VB
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Number of chassis fan connectors	8
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Height	35 mm
Cables included	SATA
Width	305 mm
Depth	244 mm
Country of origin	Taiwan
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package height	80 mm
Package width	345 mm
Package depth	294 mm
Package weight	2.88 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
