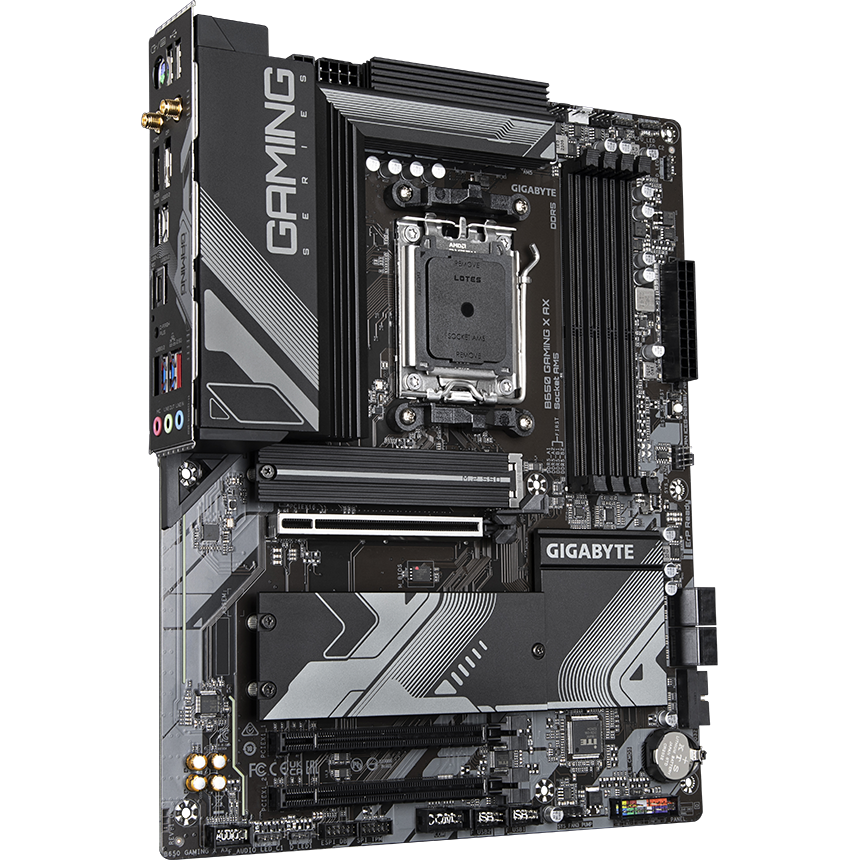

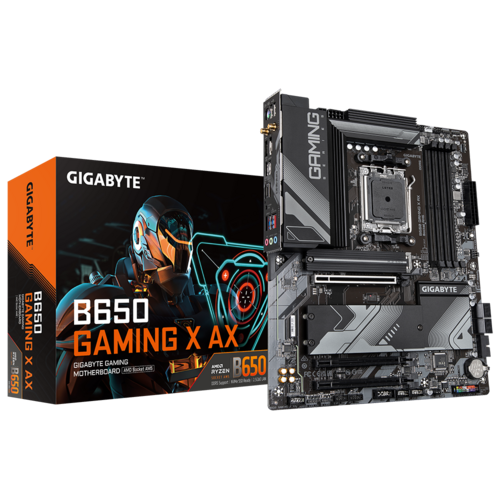

Placa de bază Gigabyte B650 GAMING X AM5

Name: Placa de bază Gigabyte B650 GAMING X AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: B650 GAMING X
Price: 901.72 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

901.72 lei

Stoc epuizat

SKU: B650 GAMING X Categorie Placi de baza

Placa de baza GIGABYTE B650 GAMING X AM5 4x DDR5, 1x DP 1x HDMI, 3x PCIE 16, 3x M.2, 4x SATA 6gb/s

Specificație: Placa de bază Gigabyte B650 GAMING X AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Cooling type	Active
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Audio output channels	7.1 channels
USB 2.0 ports quantity	3
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Maximum internal memory	192 GB
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Da
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Number of storage drives supported	7
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Maximum internal memory supported by processor	192 GB
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Total number of SATA connectors	4
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
PCI Express x16 slots	3
Motherboard chipset	AMD B650
Supported memory clock speeds	4400,4800,5200,5600,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Microphone in	Yes
Height	35 mm
Cables included	SATA
Headphone outputs	3
Width	305 mm
Depth	244 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Brown
Package weight	2.09 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
