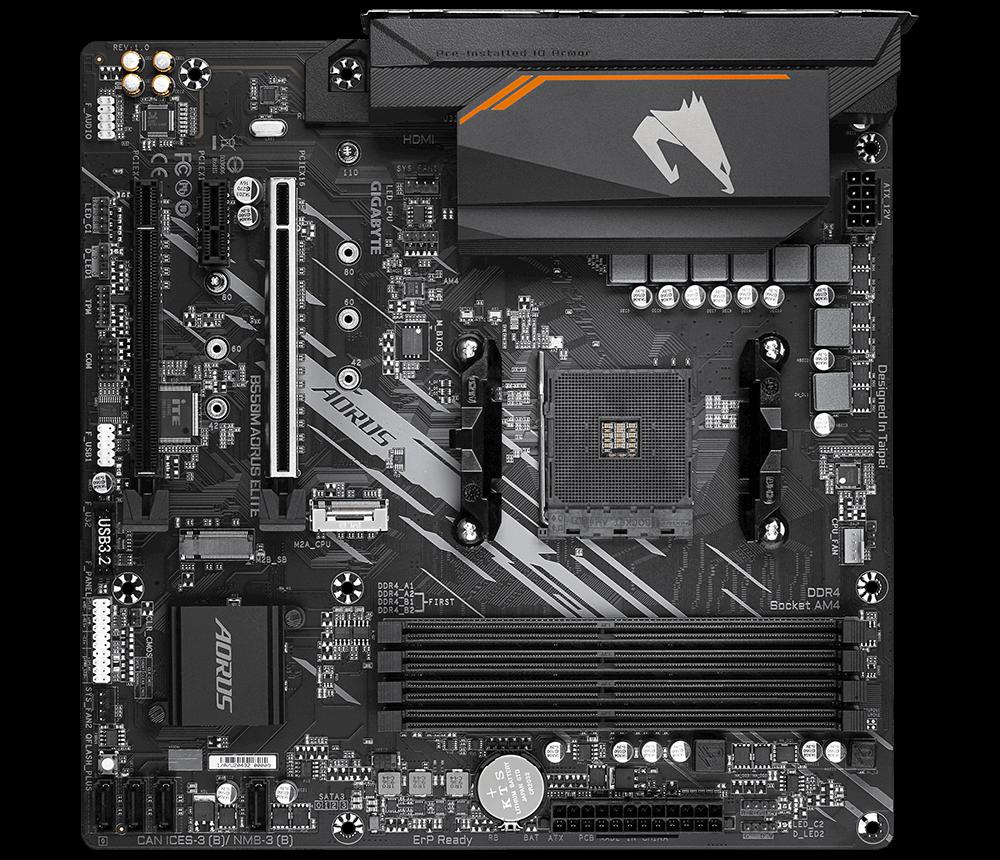

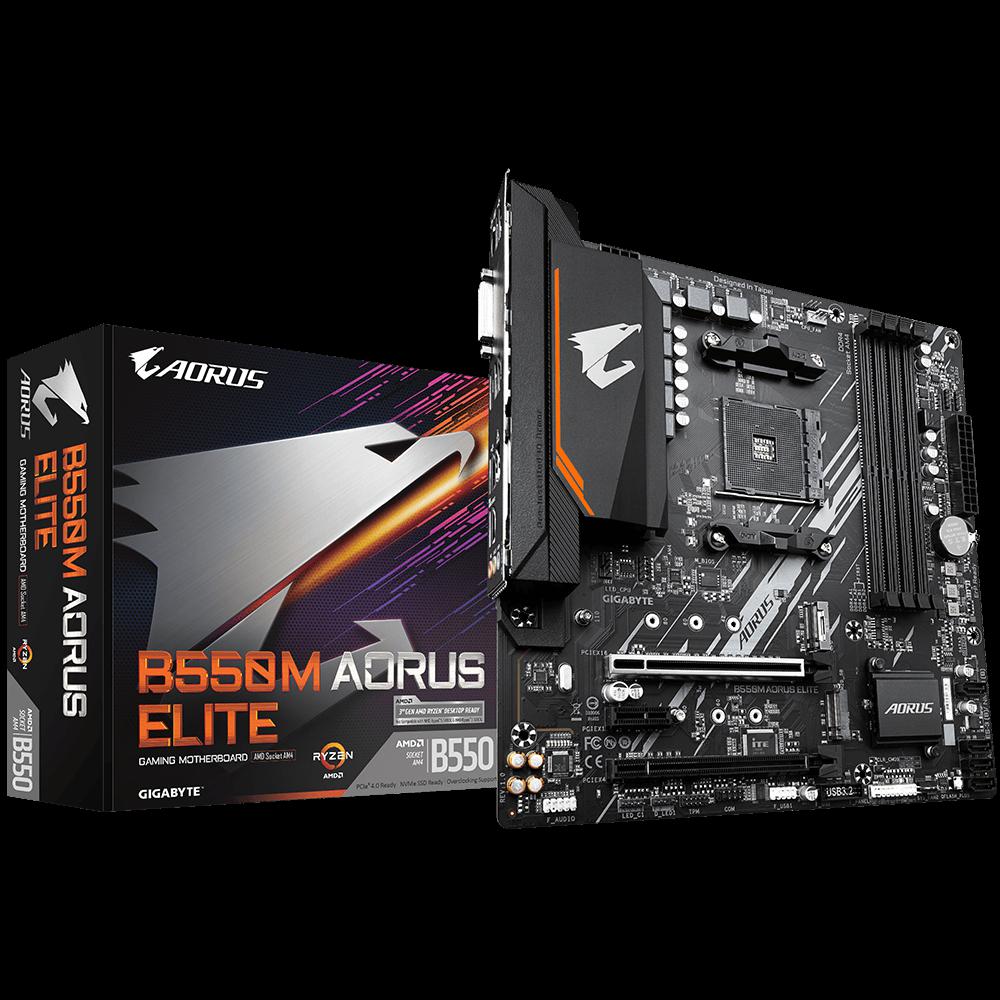

Name: Placa de bază Gigabyte B550M AORUS ELITE AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: B550M AORUS ELITE
Price: 508.30 RON
Availability: InStock

Placa de bază Gigabyte B550M AORUS ELITE AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Pentru a sprijini pe deplin cele mai recente procesoare AMD Ryzen ™ de la cel de-al 3-lea gen, placile de baza B550 sunt echipate cu solutia de putere finala, care este adevarata, digitala si cu mai multe faze. Dupa nenumarate experimente si testari, GIGABYTE prezinta placile de baza B550 imbatabile pentru entuziasti.

Specificație: Placa de bază Gigabyte B550M AORUS ELITE AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DVI/HDMI
Wi-FI	No
USB3	4-8
CPU încorporat	No
PCI-Ex1	1
PCI-Ex16	1
Component for	PC
Cooling type	Active
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Motherboard chipset	AMD B550
Serial ports quantity	1
PCI Express x1 slots	1
HDCP	Yes
DVI-D ports quantity	1
Digital audio optical out	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Model Chipset	B550
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Audio Chip	Realtek ALC887
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Maximum number of SMP processors	1
Discrete graphics support	Yes
Total number of SATA connectors	4
12V power connector	Yes
Clear CMOS button	Yes
Number of storage drives supported	6
Serial port headers	1
RAID levels	0, 1, 10
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
PCI Express x4 slots	1
USB 2.0 connectors	1
Supported processor sockets	Socket AM4
Maximum internal memory supported by processor	128 GB
Supported memory clock speeds	4733 MHz
Number of displays supported	2
Power fan connector	Yes
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
PC health monitoring	CPU, Fan, LED, Power supply, Temperature, Voltage
Supported memory module capacities	1GB, 2GB, 4GB, 16GB, 32GB
RAM-Slots	4
MB-Format	micro-ATX
MB-Socket	AM4
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Harmonized System (HS) code	84733020
Cables included	SATA
Width	244 mm
Depth	244 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package height	65 mm
Package width	265 mm
Package depth	265 mm
Package weight	1.27 kg
Producator	GIGABYTE
Garantie	36
