Name: Placa de bază Gigabyte A620M GAMING X AX AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: A620M GAMING X
Price: 603.20 RON
Availability: OutOfStock

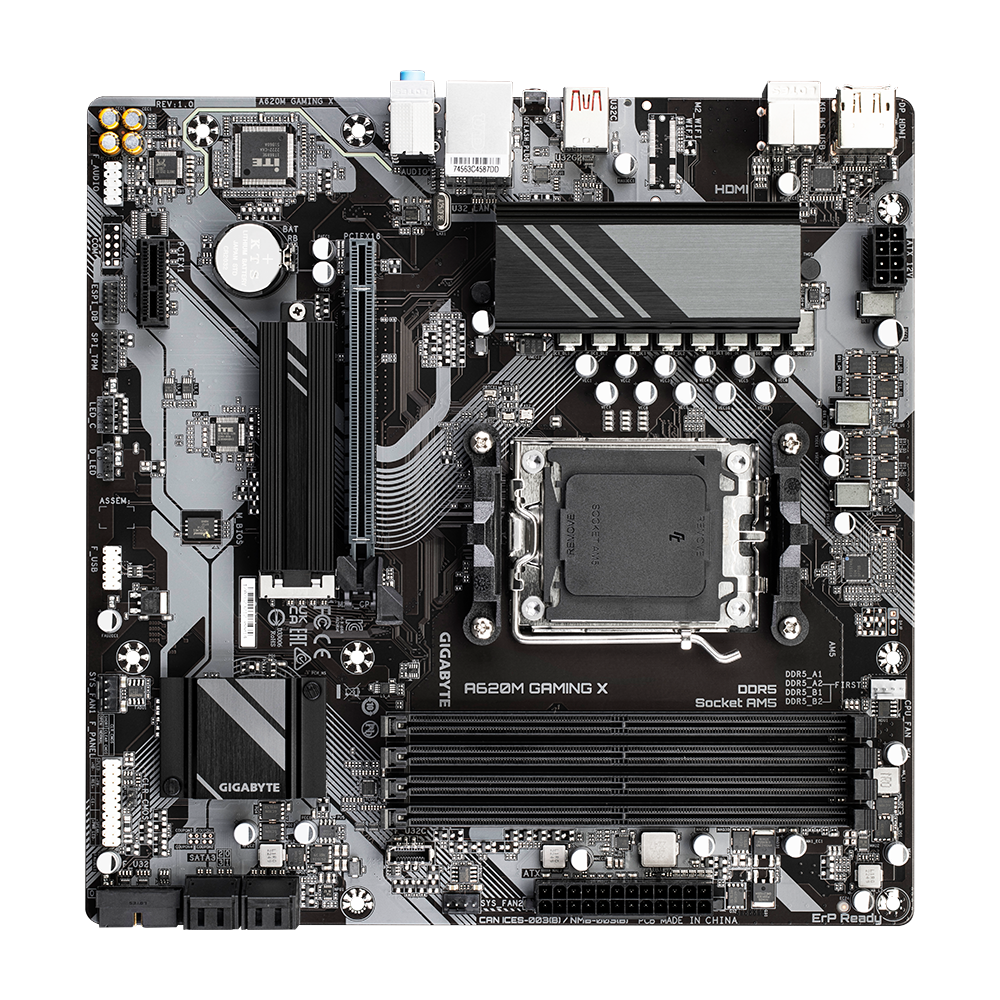

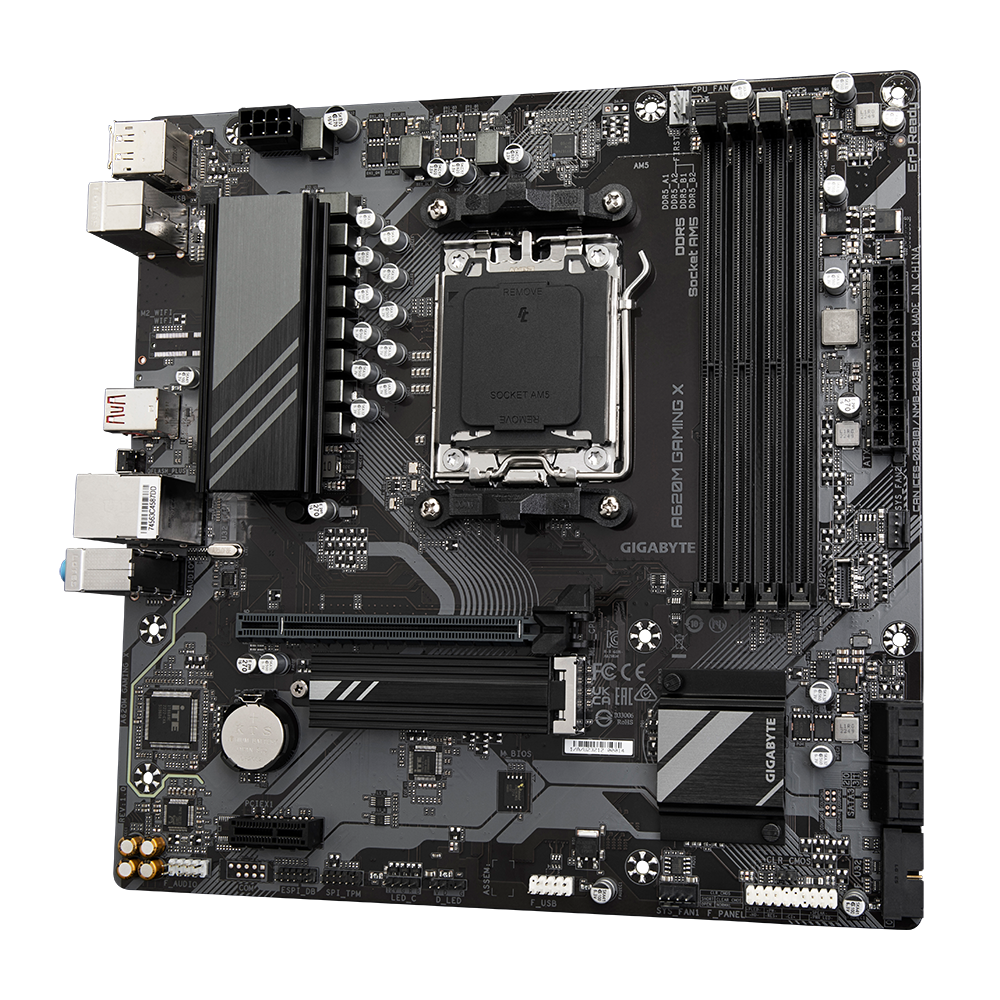

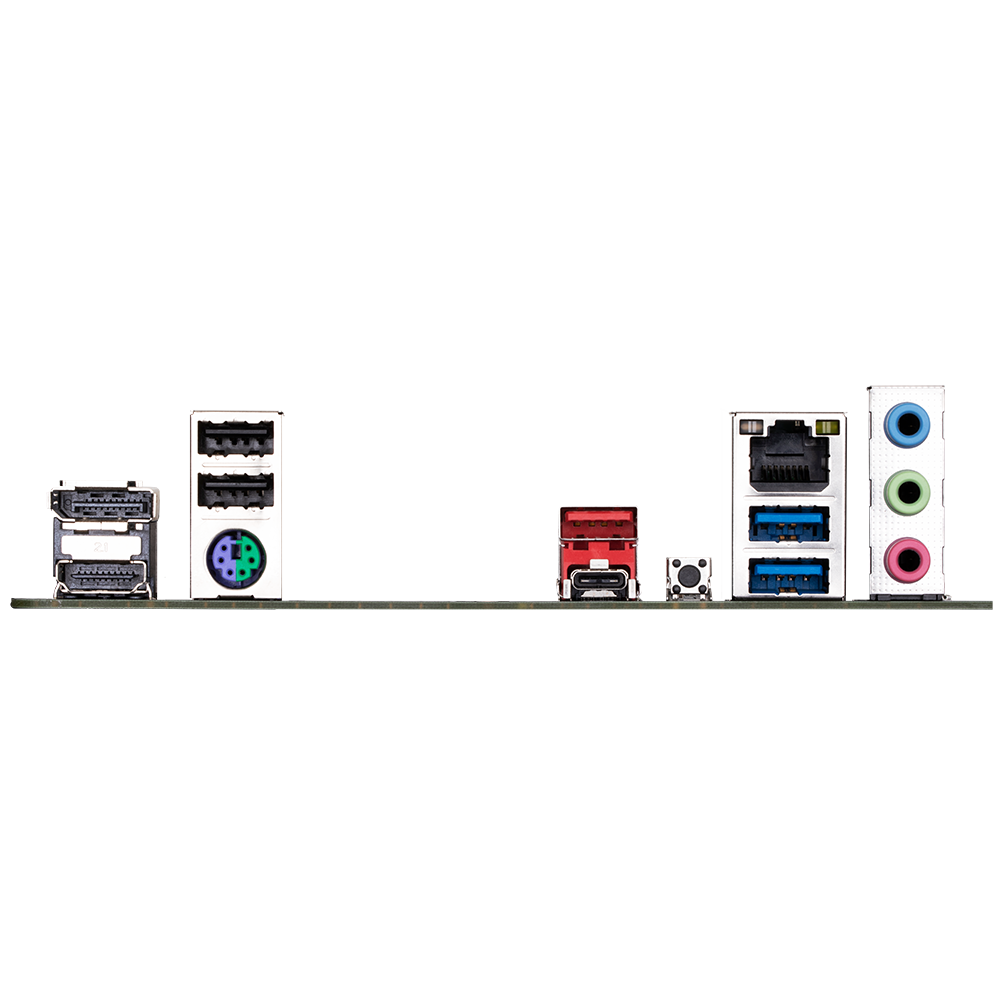

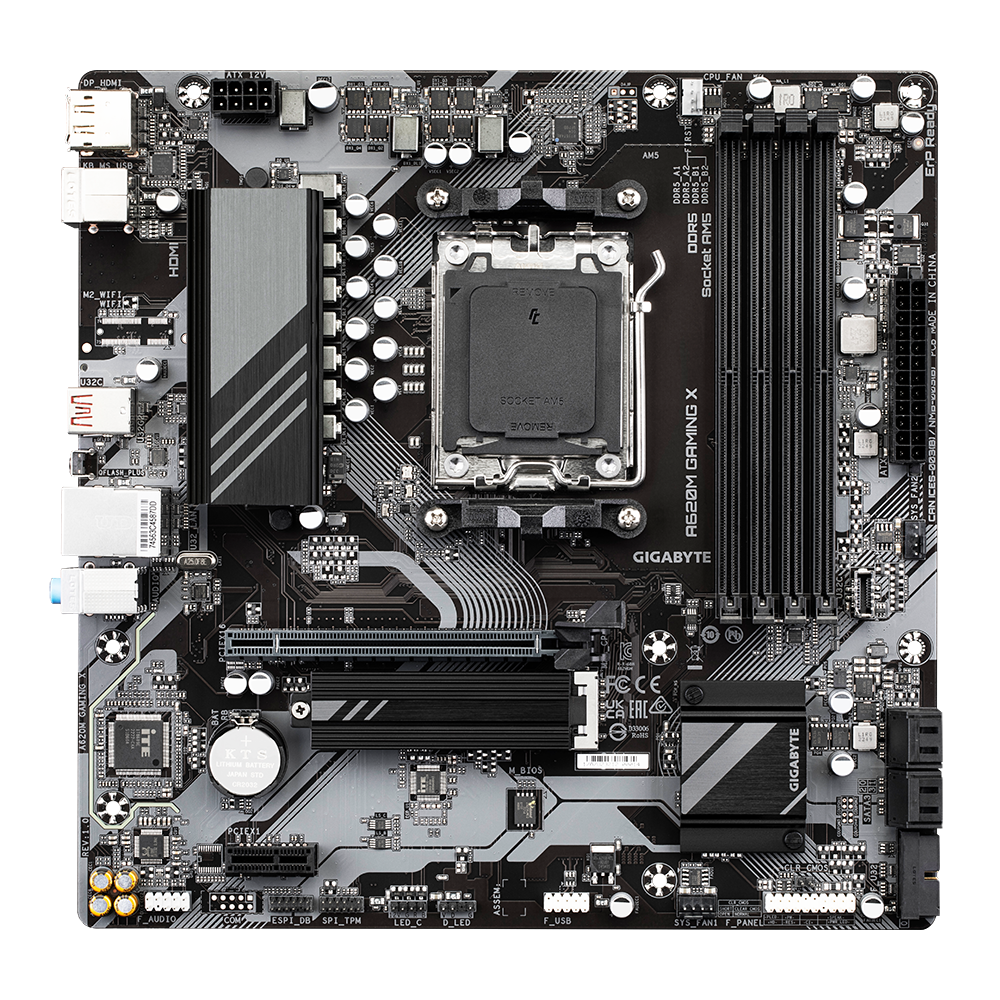

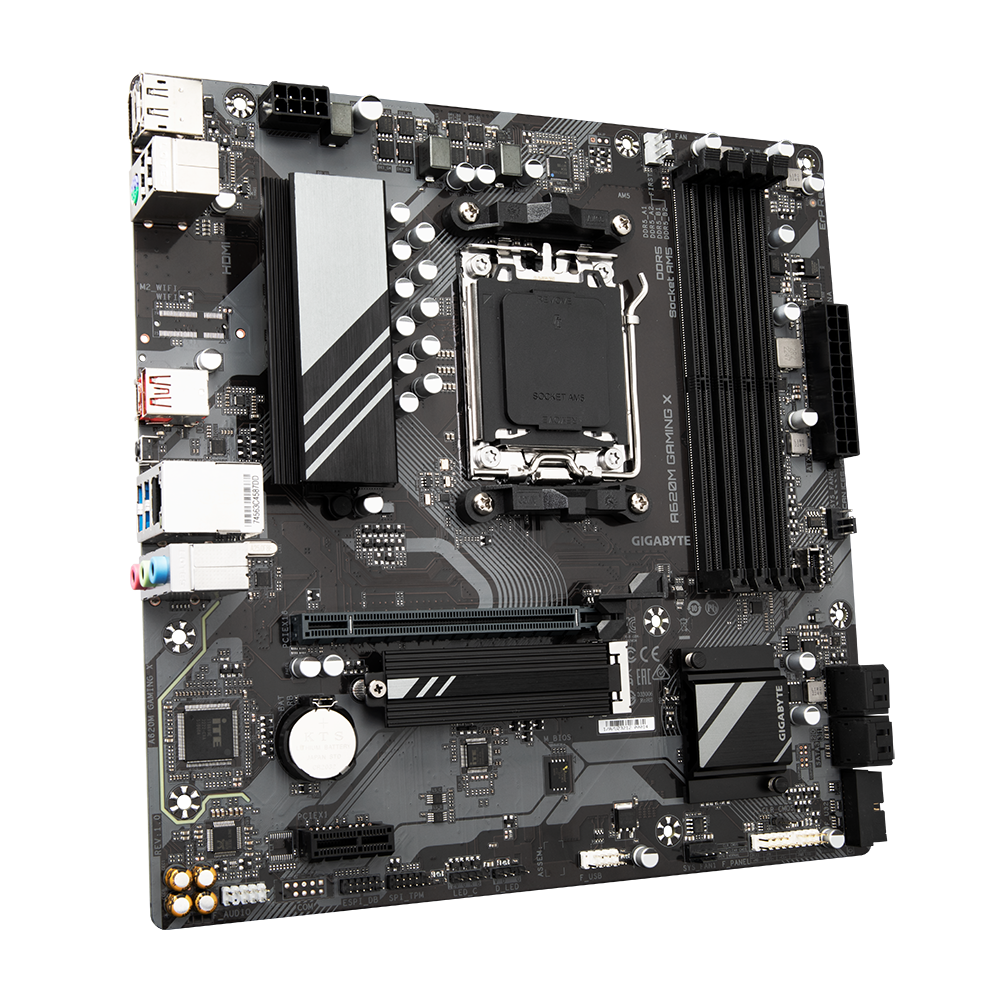

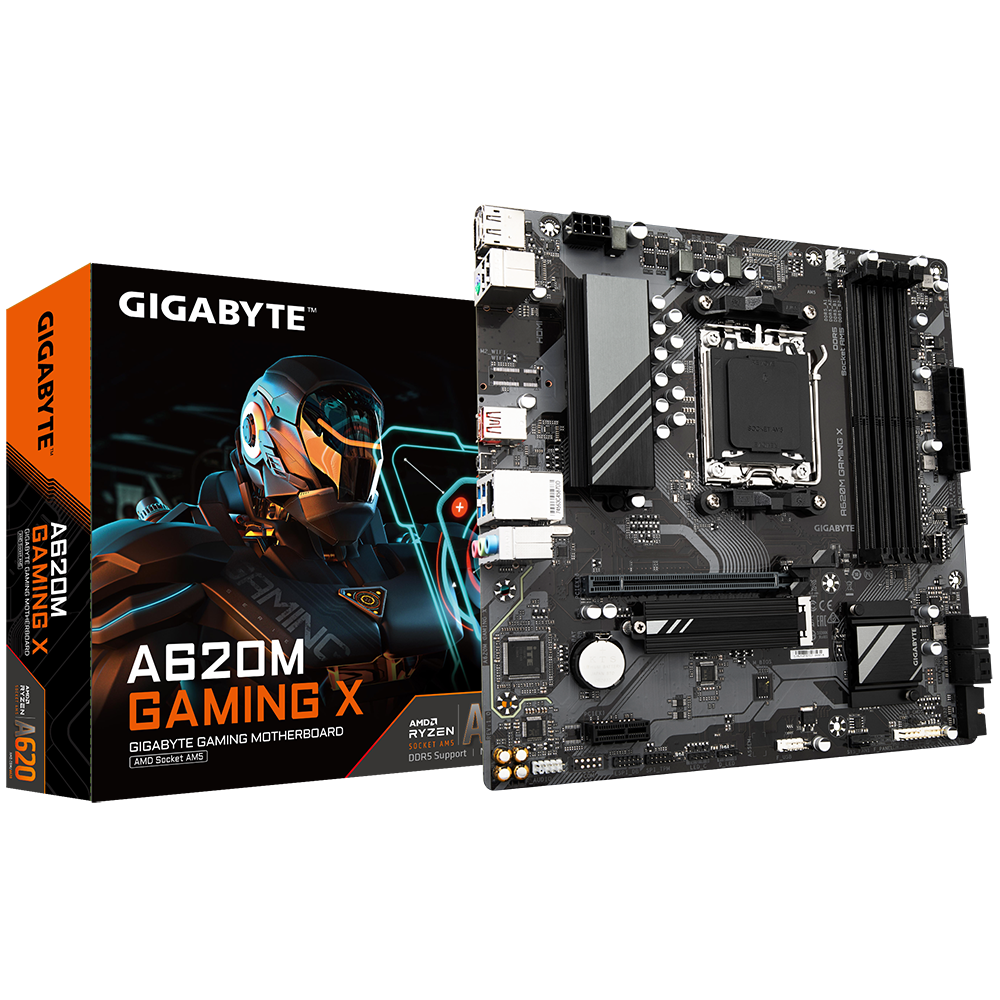

Placa de bază Gigabyte A620M GAMING X AX AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte A620M GAMING X AX AM5, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX

Specificație: Placa de bază Gigabyte A620M GAMING X AX AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
PCI Express x16 slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
PCI Express x1 slots	1
Maximum internal memory	192 GB
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	A620
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Maximum internal memory supported by processor	192 GB
Total number of SATA connectors	4
12V power connector	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Bundled software	Norton Internet Security
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
USB 2.0 connectors	1
Number of storage drives supported	5
Motherboard chipset	AMD A620
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6800,7000,7200,7600,7800,8000 MHz
Microphone in	Yes
Height	35 mm
Cables included	SATA
Width	244 mm
Headphone outputs	3
Depth	244 mm
Country of origin	China
Package height	68 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	270 mm
Package depth	268 mm
Package weight	892 g
Producator	GIGABYTE
Garantie	36
