Name: Placa de bază Gigabyte A520M K V2 AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: A520M K V2
Price: 385.85 RON
Availability: InStock

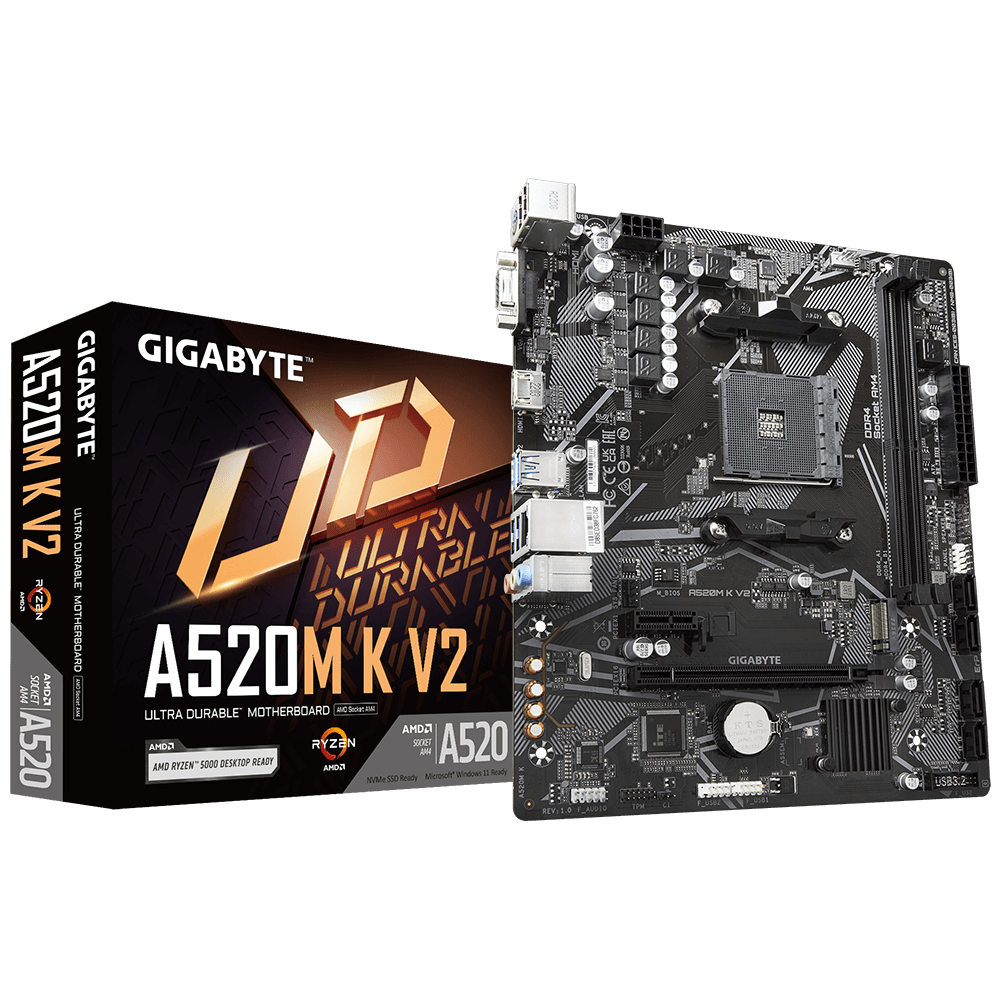

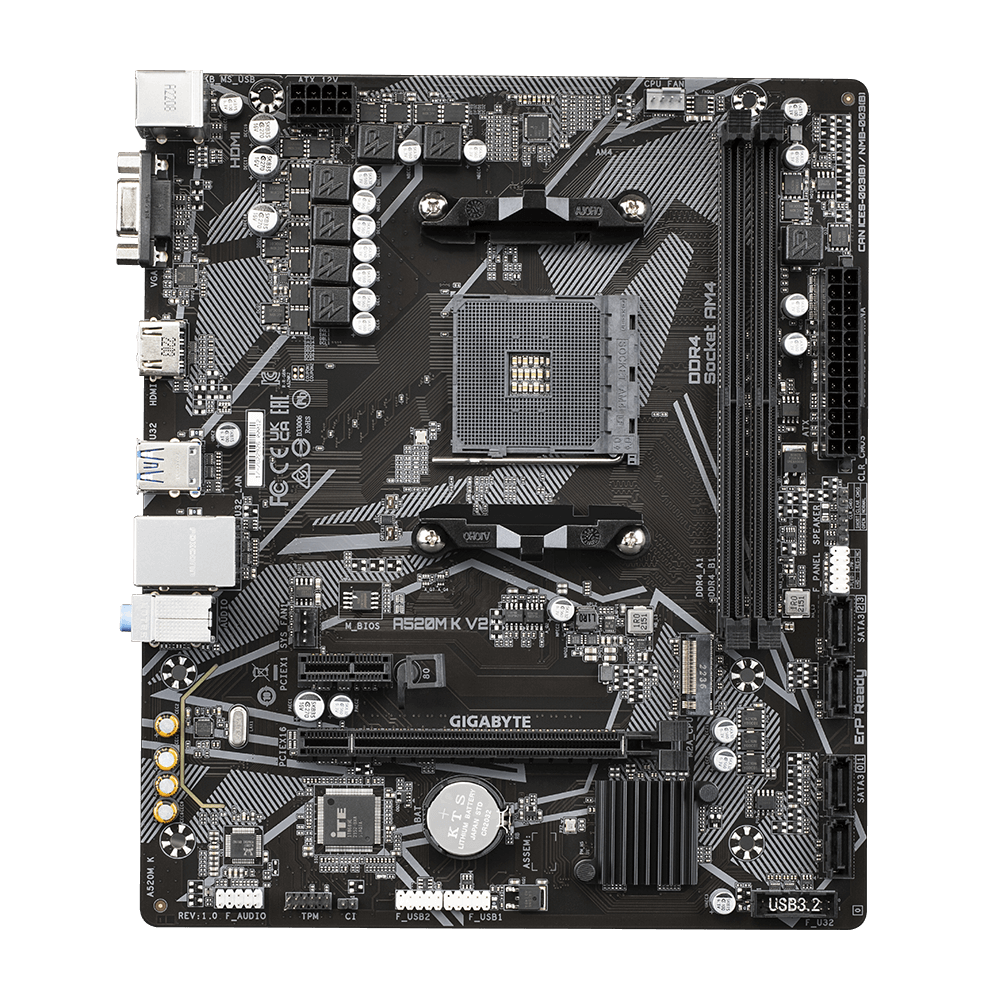

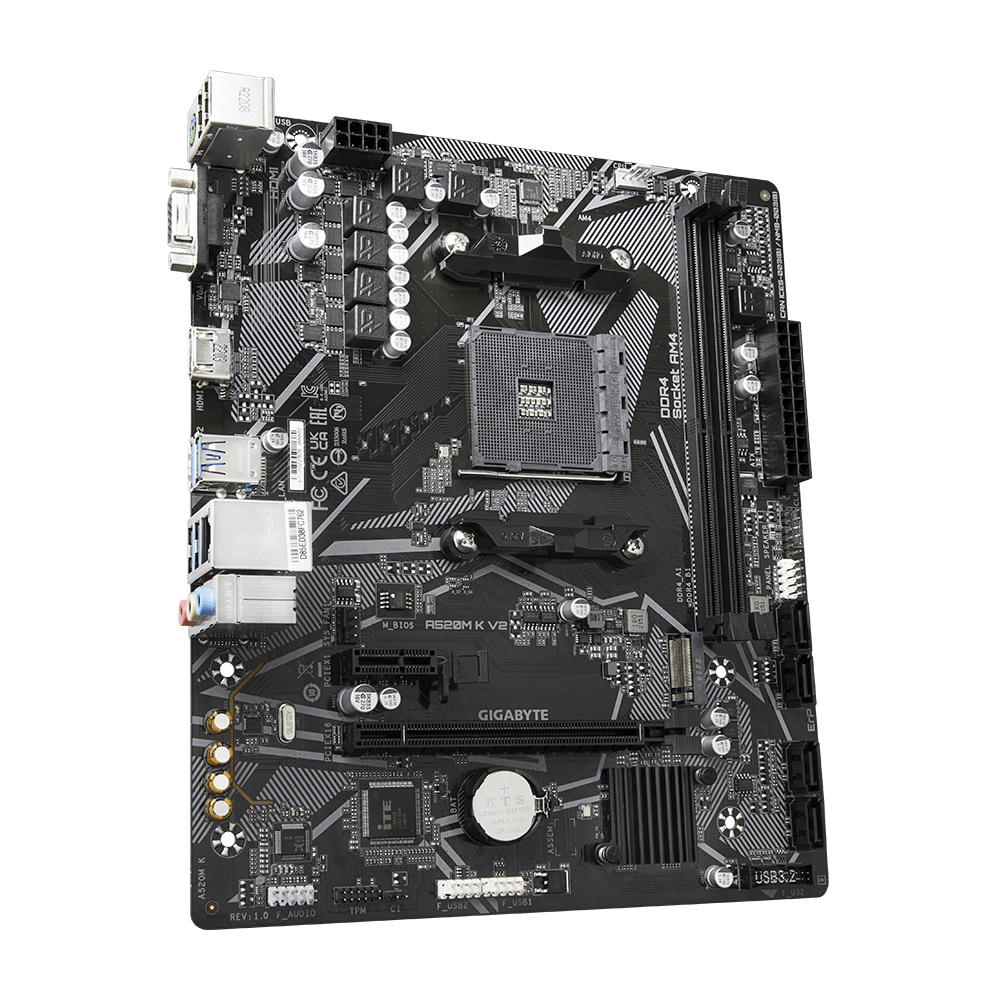

Placa de bază Gigabyte A520M K V2 AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Gigabyte A520M K V2 AM4, 2x DDR4, 1x HDMI, 1x D-Sub, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1 Gbps, mATX

Specificație: Placa de bază Gigabyte A520M K V2 AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Processor socket	Socket AM4
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
PCI Express x1 slots	1
HDCP	Yes
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	A520
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
TPM connector	Yes
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
12V power connector	Yes
BIOS memory size	128 Mbit
Bundled software	Norton Internet Security
RAID levels	0, 1, 10
Chassis intrusion connector	Yes
Motherboard chipset	AMD A520
Number of storage drives supported	5
PC health monitoring	Fan, Temperature, Voltage
Supported processor sockets	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported memory clock speeds	5100 MHz
MB-Format	micro-ATX
MB-Socket	AM4
RAM-Slots	2
Microphone in	Yes
Height	35 mm
Cables included	SATA
Headphone outputs	3
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	675 g
Width	233 mm
Depth	198 mm
Producator	GIGABYTE
Garantie	36
