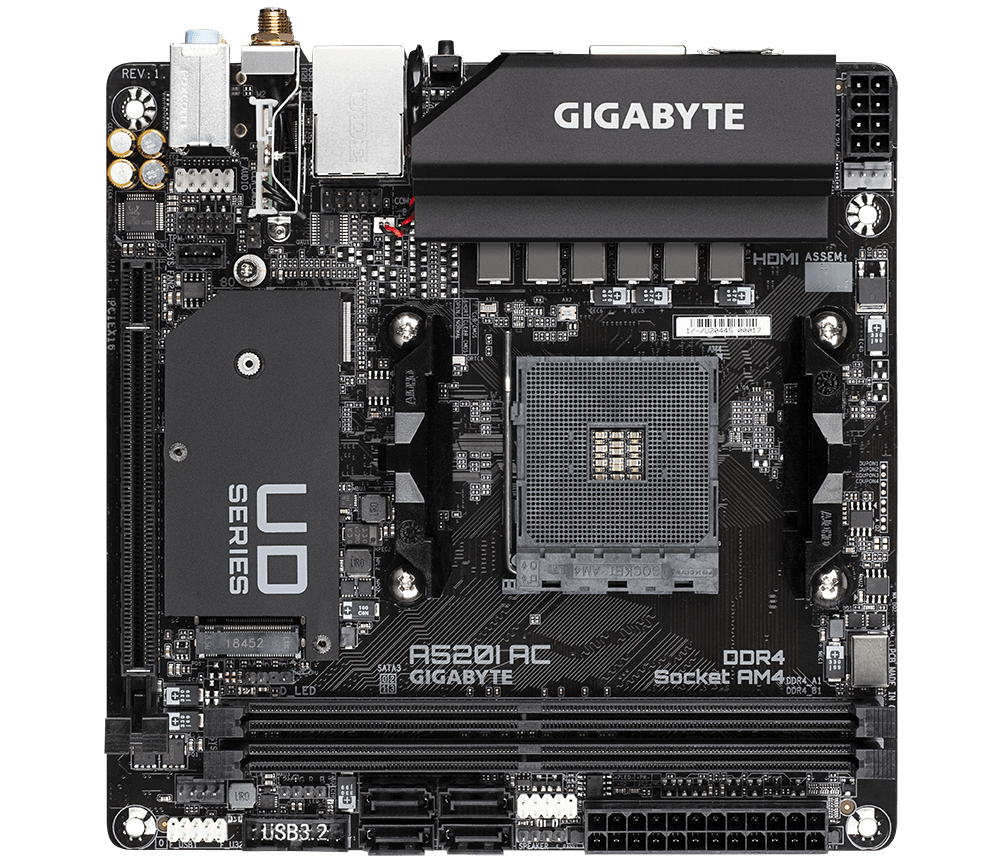

Placa de bază Gigabyte A520I AC AM4

Name: Placa de bază Gigabyte A520I AC AM4 - A.W.P.S Store
Brand: GIGABYTE
SKU: A520I AC
Price: 546.00 RON
Availability: OutOfStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 659.10 lei.Prețul curent este: 546.00 lei.

Stoc epuizat

SKU: A520I AC Categorie Placi de baza

Placa de baza Gigabyte A520I AC AM4 DDR4, 2x sloturi RAM, max. 64GB, frecventa maxima suportata 5300MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX

Specificație: Placa de bază Gigabyte A520I AC AM4

PCI	3
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI version	2.1
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
On-board graphics card	No
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Processor socket	Socket AM4
Number of M.2 (M) slots	1
HDCP	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Maximum resolution	5120 x 2880 pixels
Model Chipset	A520
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
Audio Chip	Realtek ALC887
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
mSATA ports quantity	0
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Total number of SATA connectors	4
BIOS memory size	128 Mbit
Serial port headers	1
RAID levels	0, 1, 10
Motherboard chipset	AMD A520
USB 2.0 connectors	1
Number of storage drives supported	5
PC health monitoring	Fan, Temperature, Voltage
Supported processor sockets	Socket AM4
Number of displays supported	3
Audio connector	Yes
Maximum internal memory supported by processor	64 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Motherboard form factor	mini ITX
Power fan connector	Yes
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Bluetooth version	4.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Height	35 mm
Headphone outputs	3
Country of origin	China
Width	170 mm
Depth	170 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Producator	GIGABYTE
Garantie	36
